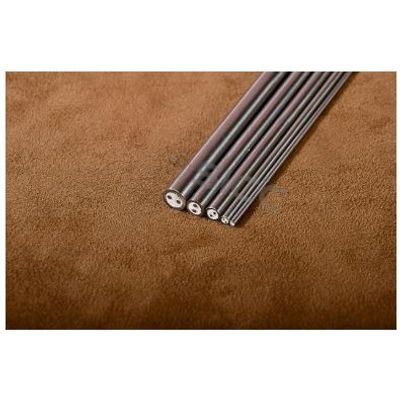

Mineral insulated thermocouple cable is used to insulate thermocouple wires from one another and from the metal sheath that surrounds them. Mineral insulated thermocouple cable has two (or four when duplex) thermocouple wires running down the middle of the tube. The tube is then filled with magnesium oxide powder and compacted to ensure the wires are properly insulated and separated. Mineral insulated thermocouple cable helps to protect the thermocouple wire from corrosion and electrical interference.

The mineral insulated RTD cable is combined with thinfilm element,Mgo powder insulated and sheath materials,as a compact entirety. Its principle is according to the resistance changes as the temperature changes.The Mineral insulated RTD cable are the base material for RTD sensors, its structure advantage with ami pollution and mechanical strength promise can be applied in the harsh environment.

SICC is ihe first pioneering companies to manufacture MIMS(Mineral insulated metal sheath) cable to improve product performance and reliability. Over the decades, we`ve refined and improved that technology.as it remains the heart of our products to this day.

Type K thermocouple wire is the most common thermocouple conductor(>500°C), it has a good resistance against oxidation and can be recommended for oxidizing and inert atmospheres.Type K thermocouple wire can not be used in sulphurous and vacuum atmospheres directly at a high temperature.as this will have a significant impact on the EMF values. The composition of positive(KP) is Ni90Cr10. negative(KN) is Ni97Si3 for Type K thermocouple wire.

Nickel chrome wire is a kind of non-magnetic alloy of nickel and chromium, it is widely used in heating elements. The maximum operation temperature of the heating elements is related to the wire diameter of Nickel chromium wire, it is better to choose thicker wires, the corrosive atmospheres also have a considerable relationship with the maximum operation temperature. The surface temperature of Nickel chromium wire is about 100C higher than the inner normally, when the operation temperature exceeds the limit, the oxidation of heating elements itself is accelerated, the heat resistance will be reduced, which is easily deformed.collapsed and even appreas to be broken, thereby shortening the service life of Nickel chromium wire.

Pure nickel wire has good mechanical strength, corrosion resistance and high heat resistance. It is suitable for making electrical vacuum devices, electronic instrument components, and corrosion resistant materials. SICC can also customized Pure nickel wire based on your detailed specifications. Thus, meeting your project or business requirements.

Copper nickel wire has good mechanical strength, corrosion resistance and low resistance, it is suitable to make thermal components in low-voltage electrical appliances such as thermal overload relays, low-voltage circuit breakers and household appliances. Copper nickel alloy wires are also the key materials for manufacturing geothermal cables. SICC is your one-stop solution providing Copper nickel wire that will meet your needs. Contact us now for more inquiries!

Semi-finished thermocouples are intermediate components that have completed core processing and possess specific functional modules, but have not yet been assembled into end-use temperature sensors. They are the core substrate in the thermocouple industry chain, providing temperature sensing modules that can be quickly integrated.

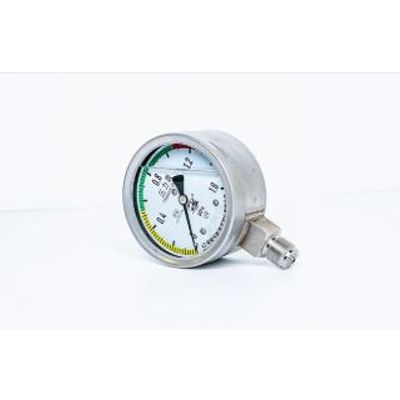

The Stainless Steel industrial Pressure Gauge consists of a pressure-guiding system (including connectors, spring tube, etc.). a gear transmission mechanism, an indicating device, and a housing. All components are made of stainless steel. When the spring tube is subjected to the pressure of the measured medium, its end undergoes corresponding elastic deformation, which is amplified by the gear transmission mechanism and displayed on the dial by the indicating device. The Stainless Steel Industrial Pressure Gauge`s housing is sealed, effectively protecting the internal components from environmental influences and contaminants. Furthermore, the oil filling inside the housing provides resistance to pressure fluctuations of the measured medium and severe vibrations in the operating environment, ensuring both corrosion resistance and shock resistance.
