Sure Flow Products LLC products

Full scale flow ranges from 6 GPH to 220 GPM. Connection size 1/4-inch to 3-inch NPT or BSP. Construction materials: PVC, Polysolphone, or PVDF. Reads in GPM & LPM scale. Clear flow tube allows for view of process and scale. Pressure ratings to 145 PSIG.

Full scale flow ranges from 5 to 100 GPM (20 to 380 LPM) and 10 SCFM to 250 SCFM. Connection sizes from 1/4-inch to 2-inch NPT, BSP, or SAE. Construction materials: Polysulphone flow tube with Brass end fittings. Spring loaded, mechanical design mounts in any orientation. Reads in GPM and LPM or SCFM. Pressure ratings to 200 PSIG. Clear flow tube allows for view of process and scale.

Full scale flow ranges from 5 to 100 GPM (20 to 380 LPM) and 10 SCFM to 250 SCFM. Connection sizes from 1/4-inch to 2-inch NPT, BSP, or SAE. Construction materials: Polysulphone flow tube with Brass end fittings. Spring loaded, mechanical design mounts in any orientation. Reads in GPM and LPM or SCFM. Pressure ratings to 200 PSIG. Clear flow tube allows for view of process and scale.

Full scale flow ranges from 60cc/m to 40 GPM and 4 SCFM to 400 SCFM. Connection sizes from 1/4-inch to 1-inch NPT or BSP. Construction materials: Brass or Stainless Steel. Spring loaded, mechanical design mounts in any orientation. Calibrated scale for easy field adjustability. Pressure ratings to 4500 PSIG. Maintains accuracy regardless of viscosity fluctuations. Optional field adjustable switches.

Full scale flow ranges from 60cc/m to 40 GPM and 4 SCFH to 400 SCFM. Connections sizes from 1/4-inch to 1-inch NPT or BSP. Construction materials: Brass or Stainless Steel. Calibrated scale for easy field adjustability. Spring loaded, mechanical design mounts in any orientation. Clear flow tube allows for view of process and scale. Pressure ratings to 145 PSIG.

Full scale flow ranges from 5 to 2500 GPM. Connection sizes from 1/4-inch to 8-inch flange, wafer, NPT or tube. Construction materials: PVC, CPVC, Polypropylene and PVDF. No moving parts. Standard 4-20mA output. Optional removable sensor. Optional ultrasonic sensing style. Optional high purity service.

No Moving Parts – No Obstruction of Flow Path. Full scale flows from 1.3 GPM to 260 GPM. Connection Sizes: ½ inch to 3 inches (Flanged, Sanitary/Tri-Clamp, or Threaded). Construction Materials: Stainless Steel. 4-20mA Ouptut for Flow, & Temperature. Optional Integral or Remote Digital Display of Rate, Total, or both. Battery powered. Accuracy: 0.5% of Rate. Turn Down/Rangeablility: 30:1. Maximum Pressure: 5000 PSIG. Applications include Food, Milk, Paints, Slurries, Water, Oils, Chemicals, Fluids Containing Debris, Waste Fluids, Air & Gases.

Full scale flow ranges from 0.15 GPH to 400 GPM and .015 SCFH to 2000 SCFM. Connection sizes from 1/4-inch to 48-inch flange, tube fitting, sanitary, stub-welded, or hot tap. Construction materials: 316L Stainless Steel (standard), other materials available. Transmitter outputs include open collector contacts, 5 VDC, or 4-20mA for flow/temperature, or flow/pressure. Accuracy is 0.5% of rate. No moving parts or flow obstructions. Pressure ratings to 10,000 PSIG. Optional battery powered LCD that displays rate and total.

Full scale flow ranges from 5 to 99,000 GPM. Insertion connection sizes from 1-inch to 2-inch NPT or BSP. Construction materials: 316 Stainless Steel Body and PEEK paddle wheel. Pulse, 0-5 VDC, or 4-20 mA transmitter outputs. Nema 4x display enclosure. Pressure ratings to 1200 PSIG. Optional battery powered LCD that displays rate and total.

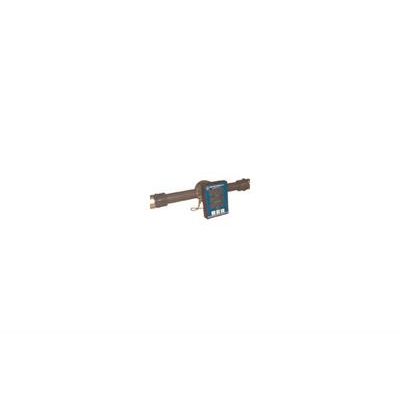

This microprocessor based paddle wheel meter is available with continuous digital display of flow rate, resettable 8 digit total flow and a non resettable grand total. The display can also be remotely mounted. For areas that do not require a display; this paddle wheel flow meter is offered with a pulse output only that can be tied into a PLC or other remote receivers. The LCD display is battery powered and provides long service up to 5 to 7 years. Unlike most paddle wheel meters this meter can handle some dirt or debris, and quite easy to clean.
