Sutron Corporation products

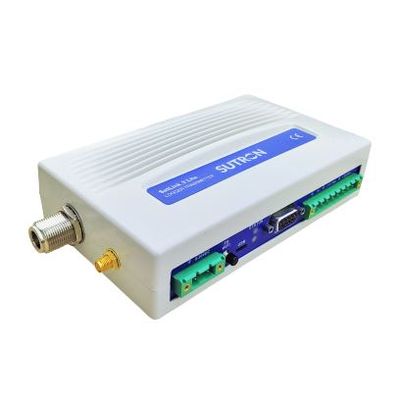

The SUTRON SatLink3 Lite is the latest addition to the SatLink3 family. It offers a reliable and cost-effective solution for your environmental monitoring needs, optimized for simple applications. It allows measuring, processing, and logging data from smart sensors for up to 1 million readings without any overlap. Its built-in transmitter automatically selects the proper RF power, based on the antenna used, and delivers real-time data over NESDIS GOES 300 and 1200 bps as well as formats of other environmental satellites orbiting the globe.

Multi-Sensor Input Logger with data transmission via lridium or Cellular. Sutron’s XLink product family offers a cost-effective Wi-Fi enabled datalogger with data transmission via lridium or Cellular.Ideal for use with multiple digital and analog sensors supporting basic or advanced monitoring applications.The product comes in two models tailored to fit different application and budget requirements.The XLink 100 and XLink 500 carry over all the great capabilities from its predecessor family (CDMALink, HSPALink, GPRSLink, lridiumLink)

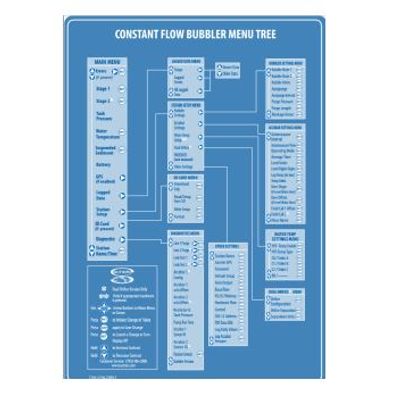

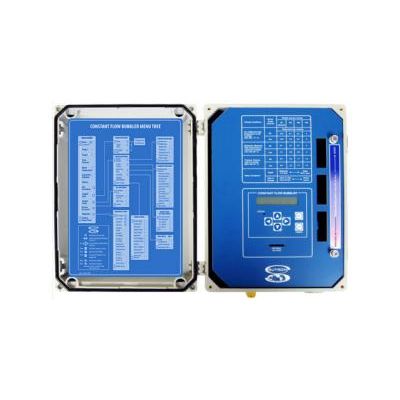

The Compact Constant Flow Bubbler (Part #56-0133-25-1S), 50% smaller than Sutron’s original Constant Flow Bubbler, is a self-contained, precision device to measure water levels & temperature. It consists of a pump, tank, manifold, control board, display/keypad & enclosure. The new Compact CF Bubbler houses all components within a 10.5”x 8.5”x 7.5” polycarbonate NEMA-4X enclosure. An optional external desiccant is available. The Compact Constant Flow Bubbler’s built-in precision Accubar® Pressure Sensor meets the high accuracy requirements for stream gaging & monitoring of tidal/coastal areas, estuaries, groundwater & reservoirs. The Bubbler includes a built-in datalogger for stand-alone operation and/ or backup (redundant) data recording and RS232 and SDI-12 ports for communications and maintenance. The front panel includes a display and keypad. It also supports MODBUS.

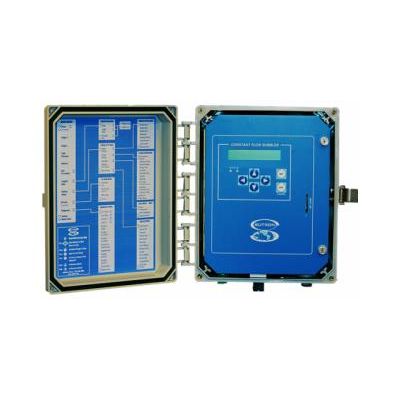

The Accubar Constant Flow (CF) Bubble Gage is a self-contained, precision device to measure water levels & water temperature, consisting of a pump, tank, manifold, control board, display/keypad & enclosure. The CF Bubbler’s built-in precision Accubar® Pressure Sensor meets the high accuracy requirements for stream gaging & monitoring of tidal/coastal areas, estuaries, groundwater, & reservoirs. The Bubbler includes a built-in datalogger for stand-alone operation &/or backup (redundant) data recording and RS232 & SDI-12 ports for communications & maintenance. Also supports MODBUS.

Introducing the World’s First Wi-Fi Multi-Communications Logging Transmitter. Now with Python!

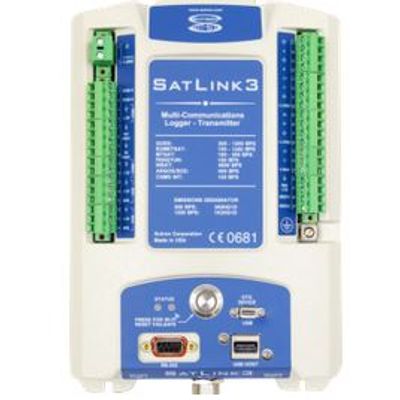

The ability to connect to the SatLink3 using various communications, such as cellular, through a single logging transceiver – ensuring transmission redundancy and security.

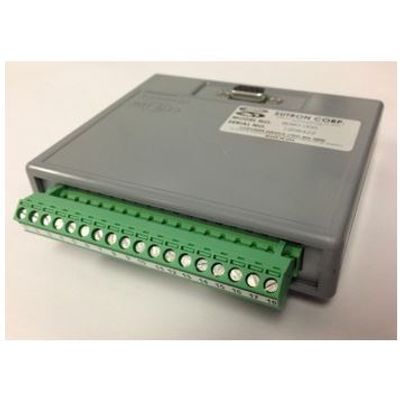

The Analog I/O Module (ADC) has six analog I/O lines. The analog lines are capable of being inputs and outputs simultaneously giving the user tremendous flexibility in setup. As an example, the simple resistance measurement is made by exciting the input the resistor is connected to and measuring the current and voltage on that input line just as would be done using a conventional multimeter. This analog I/O module is compatible with the Xpert and 9210 dataloggers.

The Sutron Accubar Constant Flow (CF) Dual Orifice Bubble Gauge/Recorder, a self-contained, precision device for measuring water levels, water temperature*, suspended sediment* & density* using long established bubble gauge principles, combines the following components into a single package. Ideal for rivers, streams, dams & reservoirs, oceans & industrial areas plus any area where water density changes, eg, tidal & estuary areas.

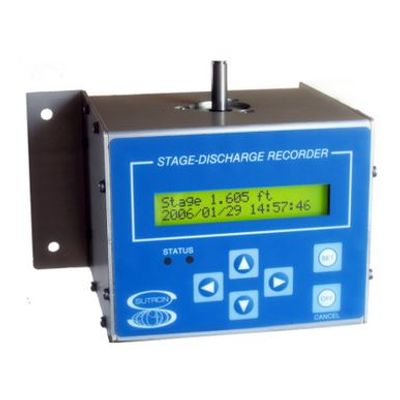

Sutron fused the ultra-reliable SDI-12 optical encoder with our state-of-the-art SatLink2 Logger technology to create an encoder that never forgets.

Water level sensor with built-in datalogger for surface and groundwater applications. The OTT ecoLog 500 is a complete system for water level and temperature measurement. Designed for full deployment inside groundwater wells as well as surface water applications, the OTT ecoLog 500 offers data and alarm message transmission options via SMS, HTTP, FTP and e-mail, giving users flexible remote data access from their office.
