Suzhou Green Hydrogen Energy Co., Ltd products

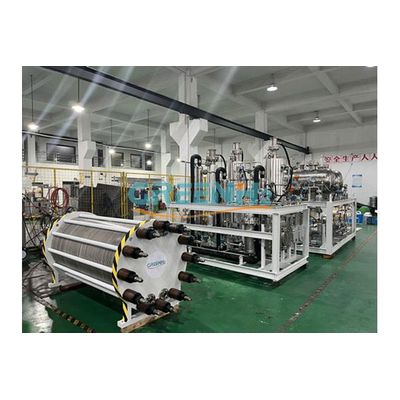

Water electrolysis hydrogen (oxygen) is the process of water electrolysis into hydrogen and oxygen by using KOH solution as the electrolyte.The electrolyzer stack is composed of two bipolar plate electrolytic cell group. And the chamber is equal to the number of two cell groups, with a common cathode plate transmission.It has features of compact structure, safe operation and reliable performance. Hydrogen and oxygen separator are horizontal type, with good separation performance. Oxy-hydrogen liquid level balanced on both sides, and the height of the equipment is greatly reduced.The electrolyte will be compulsively recycled, and the raw water is consumed by the piston pump automatically, and the operation parameters can be automatically monitored and controlled.

Mini-portable water electrolysis hydrogen generator is an European technology based water electrolysis hydrogen and oxygen gas generating unit which can simply electrolyze the H2 and O2 from the steamed or purified water. The unit is extremely compact, one button start smart gas generator which requirement almost zero maintenance and portable for operation at different locations and applications.

The de-hydrogen unit installed after Hydrogen-Oxygen Gas Generating Unit is to removal Hydrogen from Oxygen. The catalyst loaded to promote the reaction between Hydrogen and Oxygen to Form H2O and the residual Hydrogen will be removed to less than 1ppm and the moisture formed could be de-hydrated by the molecular sieve in the following process.
