18 products found

SwapLoader USA, Ltd. products

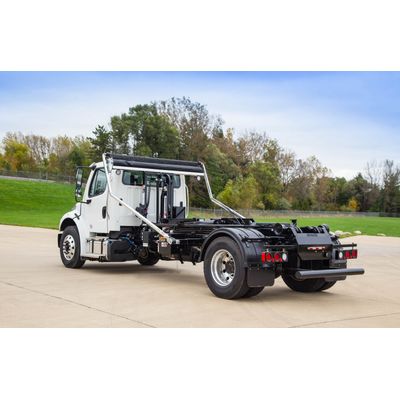

SwapLoader - Model SL-145 - (14,000 lb. Capacity) Hook Lift

Recommended CA: 120″. Recommended GVWR: 26,000 lb.. Required Clear Frame (useable) Rail: 152″. Chassis Frame Height: Up to 40″. Body Lengths: 12′ to 15′. Body Lengths w/CVS Option: 10′ to 15′. Hook Height: Fixed 36″. Flow: 11.4 GPM @ 1,000 RPM. PSI: 3,250.

SwapLoader - Model SL-180 - (18,000 lb. Capacity) Hook Lift

Recommended CA: 138″. Recommended GVWR: 26,000 lb. to 31,000 lb.. Required Clear Frame (useable) Rail: 172″. Chassis Frame Height: Up to 40″. Body Lengths: 14′ to 18′. Body Lengths w/CVS Option: 12′ to 18′. Hook Height: Fixed 36″ or Adjustable 36″ to 54″. Flow: 11.4 GPM @ 1,000 RPM. PSI: 3,250.

SwapLoader - Model SL-185 - (18,000 lb. Capacity) Hook Lift

Recommended CA: 120″. Recommended GVWR: 26,000 lb. to 31,000 lb.. Required Clear Frame (useable) Rail: 156″. Chassis Frame Height: Up to 40″. Body Lengths: 12′ to 16′. Body Lengths w/CVS Option: 10′ to 16′. Hook Height: Fixed 36″ or Adjustable 36″ to 54″. Flow: 11.4 GPM @ 1,000 RPM. PSI: 3,250.

Hook Lift Trucks - 100 Series Hook Lifts

SwapLoader - Model SL-75 (7,500 lb Capacity) - Hook Lift Truck

Recommended CA: 96″ (Commonly mounted on 84″ CA). GVW Range: 14,000 lb – 16,000 lb. Required Clear Frame (useable) Rail: 126″. Chassis Frame Height: Up to 38″. Optimum Body Lengths: 10′ – 12′. Potential Body Length: 9′ – 13′. Hook Height: 35 5/8″. Flow @ Pump RPM: 7.2 GPM @ 1,000 RPM. PSI: 3,250.

SwapLoader - Model SL-105 (10,500 lb. Capacity) - Hook Lift Truck

Recommended CA: 96` (commonly mounted on 84` CA). Recommended GVWR: 19,000 lb.. Required Clear Frame (useable) Rail: 130`. Chassis Frame Height: Up to 40`. Body Lengths: 10` to 13`. Hook Height: Fixed 36`. Flow: 7.2 GPM @ 1,000 RPM. PSI: 3,250.

SwapLoader - Model SL-160 (16,000 lb. Capacity) - Hook Lift Truck

Recommended CA: 120″. GVW Range: 18,000 lb – 26,000 lb. Required Clear Frame (useable) Rail: 153″. Chassis Frame Height: Up to 40″. Optimum Body Lengths: 12′-14′. Potential Body Length: 10′-15′. Hook Height: 35 5/8″, adjustable 35 5/8″ or 53 7/8″. Flow @ Pump RPM: 11.4 GPM @ 1,000 RPM. PSI: 3,250.

SwapLoader - Model SL-212 (20,000 lb. Capacity) - Hook Lift Truck

Recommended CA: 120″. GVW Range: 25,000 lb – 35,000 lb. Required Clear Frame (useable) Rail: 156″. Chassis Frame Height: Up to 40″. Optimum Body Lengths: 12′ – 14′. Potential Body Lengths: 10′ – 16′. Hook Height: Fixed 35 5/8″, Adjustable 35 5/8″ or 53 7/8″. Flow: 11.4 GPM @ 1,000 RPM. PSI: 3,250.

SwapLoader - Model SL-214 (20,000 lb. Capacity) - Hook Lift Truck

Recommended CA: 138″. GVW Range: 22,000 lb – 35,000 lb. Required Clear Frame (useable) Rail: 172″. Chassis Frame Height: Up to 40″. Optimum Body Lengths: 14′ – 16′. Potential Body Lengths: 12′ – 18′. Hook Height: Fixed 35 5/8″, Adjustable 35 5/8″ or 53 7/8″. Flow @ Pump RPM: 11.4 GPM @ 1,000 RPM. PSI: 3,250.

Hook Lift Trucks - 200 Series Hook Lifts

SwapLoader - Model SL-220 (22,000 lb. Capacity) - Hook Lift Truck

SL-220 (22,000 lb. Capacity) Hook Lift. Recommended CA: 174″. GVW Range: 25,000 lb. to 35,000 lb.. Required Clear Frame (useable) Rail: 216″. Chassis Frame Height: Up to 43″. Body Lengths: 18′ to 22′. Body Lengths w/CVS Option: 16′ to 22′. Hook Height: Fixed 53 7/8″, Adjustable 53 7/8″ or 61 3/4″. Flow: 17.4 GPM @ 1,000 RPM. PSI: 2,800.

SwapLoader - Model SL-222 (22,000 lb. Capacity) - Hook Lift Truck

SL-222 (22,000 lb. Capacity) Hook Lift: Recommended CA: 160″. GVW Range: 25,000 lb. to 35,000 lb.. Required Clear Frame (useable) Rail: 202″. Chassis Frame Height: Up to 43″. Body Lengths: 16′ to 20′. Body Lengths w/CVS Option: 14′ to 20′. Hook Height: Fixed 53 7/8″, Adjustable 53 7/8″ or 61 3/4″. Flow: 17.4 GPM @ 1,000 RPM. PSI: 2,800.
