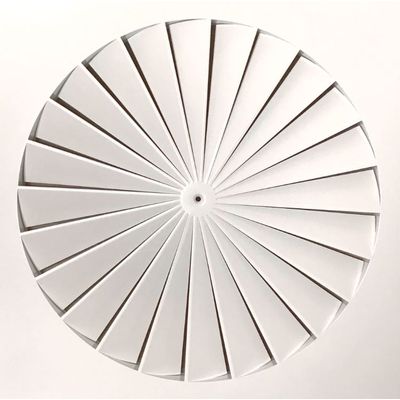

The diffusers KRE (round front panel) and RME (square front panel) are swirl diffusers with rigid, radially arranged air guiding blades and a surrounding frame. The front panel is mounted by a central screw.

The PDA-R (round front panel) and PDA-Q (square front panel) are swirl diffusers with fixed delicately stamped, radially arranged blades. The square diffuser PDA-Q may be perforated in two different variants. The blades of the variants Q1 and Q2 are slightly less delicate in their perforation. The front panel is mounted by a central screw.

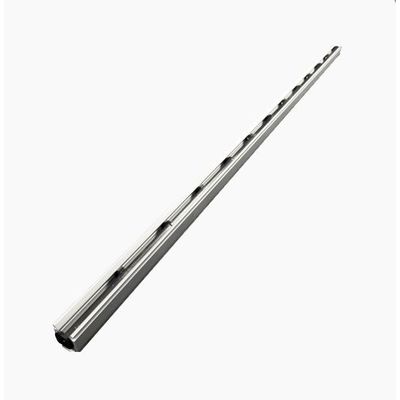

The slot diffuser VZ-15 is a linear diffuser with a system width of 15 mm, especially well suited for nearly invisible incorporation into ceiling panels and shadow joints as a single diffuser or as a continuous run. The diffuser can be used for supply as well as exhaust air and is suited for constant and variable volume flows in rooms with ceiling heights from 2,70 m to 4,00 m at temperature differences of +10 K and -12 K.

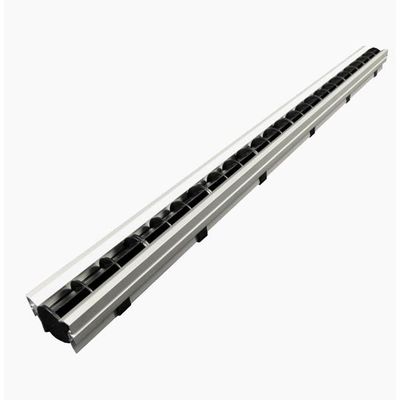

The slot diffuser VZ-41 is a linear diffuser with a system width of 41 mm, especially well suited for wall and ceiling mounting. The diffuser is available in single- and multi-slot configurations and is suited for continuous assembly. The slot diffuser consists of extruded aluminium profiles with or without side support as well as rotatably mounted, individually adjustable air guiding elements with rectifier blades and boomerang profiles. The slot diffuser VZ-41 can be used for supply as well as exhaust air (also as a combined supply and exhaust air diffuser with parallel rails) and is especially suited for constant and variable volume flows in rooms with ceiling heights of 2,30 meters to 4,00 meters. The recommended flow rate is between 50 m³/h and 150 m³/h per meter at temperature differences of +4 K to -12 K.

The VQA is an innovative low velocity diffuser with variably adjustable outflow geometry meeting the highest of aesthetic demands. The selectable outflow surfaces are rectangular, round, half-round, flat-round, quarter-round, hexagonal, half-hexagonal, quarter-hexagonal, special surfaces are possible. The perforated front plates are invisibly mounted to a connecting unit with a round or rectangular spigot and interior distribution elements. They can be disassembled from the room side without a problem in order to adjust the jet geometry or for cleaning purposes. There are no visible screws or other mounting systems. Certified in accordance with the DVI 6022 and SWKI VA-104-01 guidelines.
