Swiss Pump Company AG products

The UG submersible pumps of Swiss Pump are made of corrosion- and abrasion-resistant stainless steel in 4`, 6`, 8` and 10`. The UG series is manufactured to the highest standards of efficiency and performance. The pumps are robust and long-lasting under even demanding conditions.

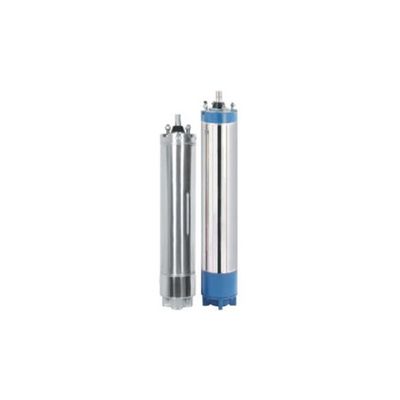

The UGM 4` submersible motors of Swiss Pump are fully stainless steel, rewind able and water-cooled. UGM 6`, 8`, 10` are made of cast-iron top and bottom with epoxy-coated paint. The other parts are of stainless steel SS304. Motors for high water temperature up to 90°C and motors made of only stainless steel SS316 are available on request.

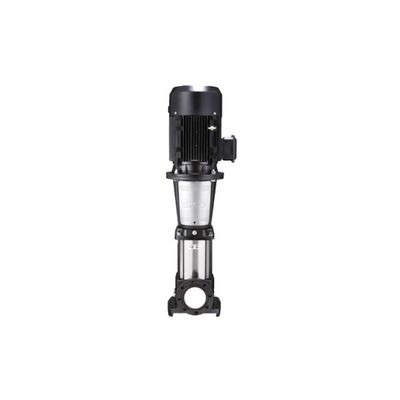

The vertical multi-stage pumps of Swiss Pump are powered by standard electric motors. The pump unit consists of optimized hydraulics, various types of connections, an outer sleeve, a pump head and various other parts. The in-line construction provides a more compact design and easier installation. All pumps are equipped with a mechanical shaft seal of the detachable cartridge type. They are available with various stages and capacities to provide customers a choice of models for different applications.

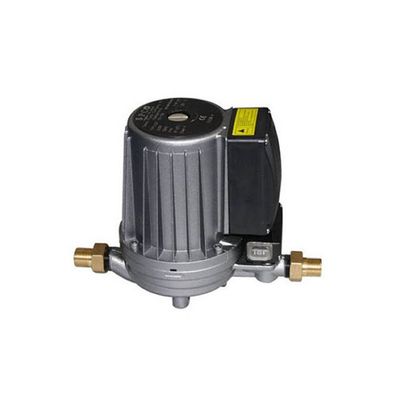

The SCP Circulation pumps of Swiss Pump operate with 3 different speeds to achieve the best duty point. The pumps are available in cast iron, bronze or stainless steel casings.

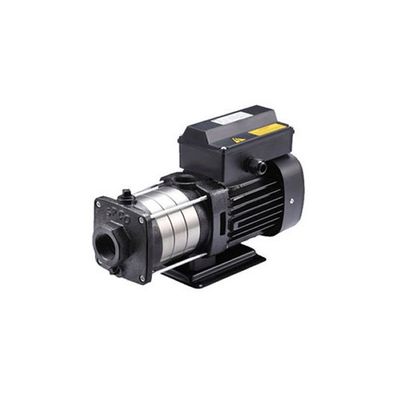

The HM series of Swiss Pump consist of light-duty, stainless steel, horizontal, multi-stage centrifugal pumps for use with base mounted electric motors. The mechanical seal is designed for easy replacement. These pumps are suitable for use with mildly corrosive liquids due to the contact parts being made of 304 or 316 stainless steel.

The CC pump series of Swiss Pump is powered by a standard electric motor. The motor is connected through an extended shaft with the pump. The pump unit uses the latest hydraulic technology. All pumps are equipped with a mechanical shaft seal. Impellers are available in cast iron, bronze or stainless steel.

The Split Case Pumps of Swiss Pump are manufactured individually according to our customer´s requirement. They are powered by a standard electric motor. The motor connects with the pump by a hitch. All pumps are equipped with a mechanical shaft seal. Impellers are available in cast iron, bronze or stainless steel. The pump is mounted on a base plate. For easy maintenance the pump body can be taken apart in the middle.

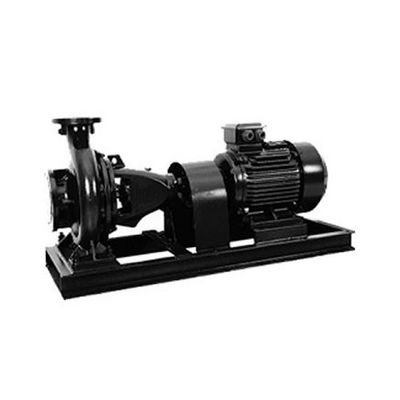

The ND – pumps of Swiss Pump are manufactured according to DIN 24255. They are powered by a standard electric motor. The motor connects with the pump by a hitch. All pumps are equipped with a mechanical shaft seal. Impellers are available in cast iron, bronze or stainless steel. The pump is mounted on a base plate.

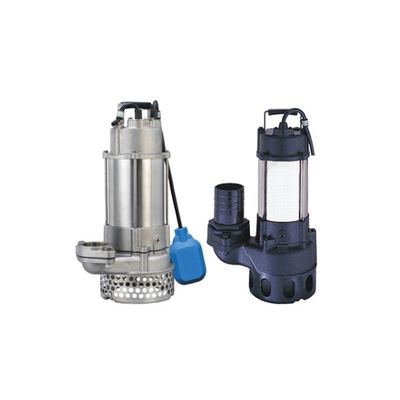

Drainage and sewage pumps of Swiss Pump consist of optimized hydraulics. Due to their different sizes, they can be used for all kinds of applications. All pumps are equipped with a mechanical shaft seal. The pumps are available in various designs and capacities to provide customers a choice of models for different applications. Guide-rail systems for easy removal are optional.
