Swissfluid AG products

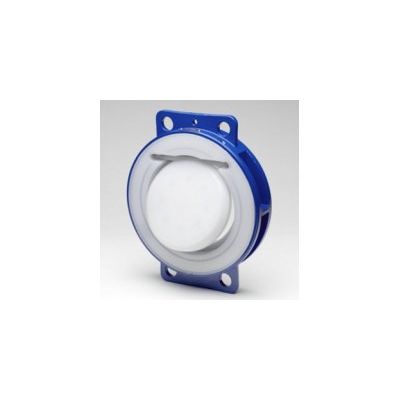

Robust design, maintenance-free operation.No need of additional flange gaskets due to wide and chambered flange sealing surface.Horizontal or vertical installation.Bodies DIN/ANSI combined, centering lugs.Disc with machined sealing lip.Silent operation

Heavy-duty, proven construction,maintenance-free.No need of additional flange gaskets due to wide and chambered flange sealing surface.

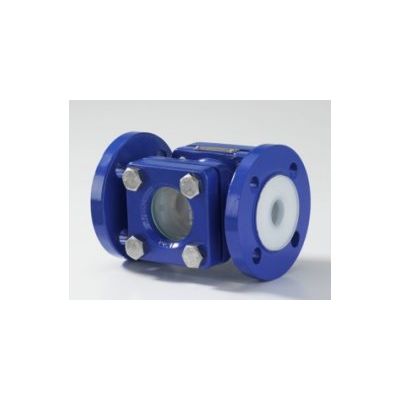

Standard drip ledge .Large observation opening

Proven construction, maintenance-free. No need of additional flange gaskets due to wide and chambered flange sealing surface . Horizontal or vertical installation

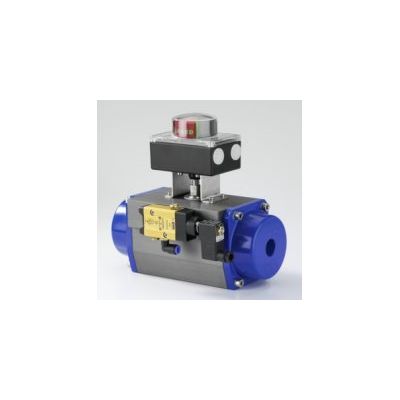

Robust design, body/cover made of cast aluminum, reliable function by proven rack and pinion construction Option: actuators with stainl. steel bodies Smooth surface finish of the cylinder bore (Ra 0.4-0.6 microns) for increased life span of actuator.Excellent corrosion protection, resistant to salt spray for up to 500 hours Easy replaceable guide pads made of materials with low coefficient of friction Actuators with at least two bolt circles ace. to ISO 5211 for direct mounting onto valves NAMUR interface for easy installation of limit switch boxes and solenoid pilot valves Visual position indicator, integrated standard Special actuators, for extreme temperatures and any environmental conditions, upon specified request

Sizes: DN15 - DN150 resp. Vi` - 6`.Flanges ace. to DIN PN10/16 resp.ANSI 150lbs Face to face ace. to EN 558-1 range 1 resp. ASME B16.10.

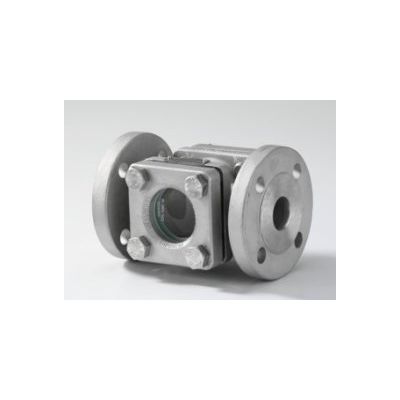

Body/cover: Stainless steel casting.CF-8M (1.4408) or CF-3M (1.4404).Glass plates: Borosilicate ace. to DIN 7080 Gaskets: C-4400 asbestos-free

Heavy-duty, proven construction, maintenance-free.No need of additional flange gaskets due to wide and chambered flange sealing surface.

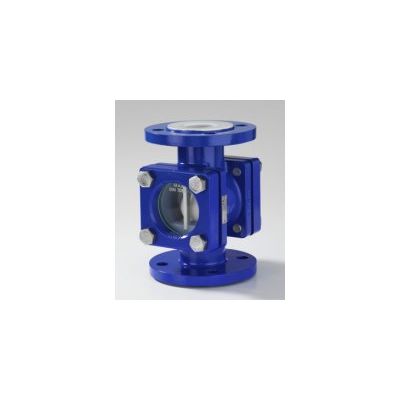

Solid PTFE or hollow balls, guides PTFE-R.Standard drip ledge.Large observation opening

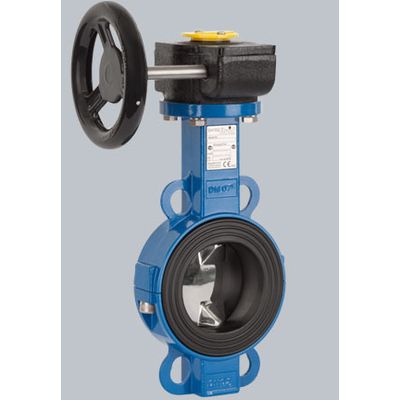

Soft seated elastomeric Butterfly Valves SBE are available in either wafer or lug design for on/off, throttling or control applications for dilute acids and lyes, powdery media or gaseous service.

Plastic lined butterfly valves SBP are available in either wafer or lug style for on/off, throttling or control applications for liquid, powdery media or gaseous service.

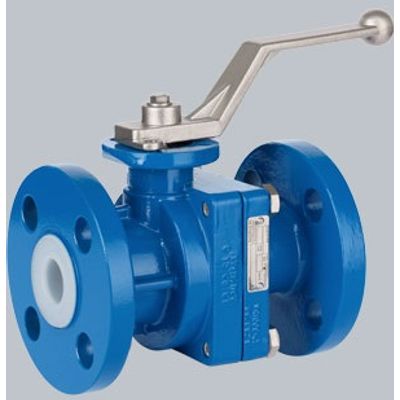

Fully lined Ball Valves for shut-off and control of corrosive, permeating liquids or gaseous media.

Fully lined Ball Valves for shut-off and control of corrosive, permeating liquids or gaseous media.
