Synecom Srl products

The SF6 Sniffer by Synecom is a portable device designed for the accurate detection of SF6 gas leaks. Featuring both audible and visual alarms, it ensures reliable performance in various environments. Its automatic measurement range adjustment allows the detector to handle diverse SF6 concentrations efficiently. With a sensitivity of up to 5 PPM, the sniffer is versatile, offering high, medium, and low sensitivity levels to adapt to different detection needs. A LED graphic display enables straightforward monitoring, while its battery life extends up to 6 hours, ensuring sustained operation in the field. This instrument is especially useful for professionals requiring precise and adaptable SF6 detection capabilities during maintenance or inspection of electrical installations where SF6 gas is used.

The SF6 Leak Detector is an essential tool designed to identify and quantify leaks in equipment utilizing SF6 gas. It is equipped with both audible and visual alarms to alert the user, and it features a clear digital display that provides precise measurements in parts per million by volume (ppmv). With an impressive sensitivity, the device allows for accurate identification of leak origins, even in environments with negligible SF6 concentrations. The unit boasts a rapid response time of approximately one second and maintains an accuracy rate of 2 grams per year, backed by a repeatability of ±0.2%. Weighing 2.8 kg, it integrates an easy-to-clean dust filter, contributing to its maintenance efficiency. The dimensions are compact, measuring 285 mm in length, 114 mm in width, and 150 mm in height, making it a portable solution for on-site analysis of SF6 leaks.

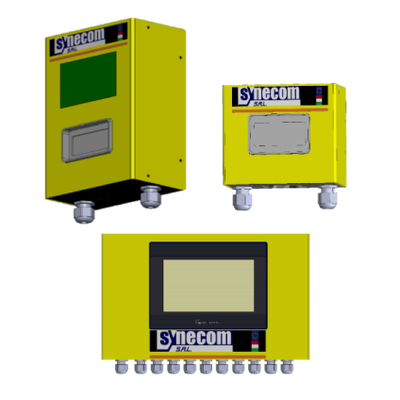

The Fixed SF6 Leak Detection System is engineered to monitor SF6 gas levels in indoor installations, utilizing a control unit for real-time detection. This system integrates the LEK104-02 network monitor, which displays data from connected sensors. Users can configure alarms and warnings, while the system provides precise readings of SF6 dispersion in ppm or gr/y. Notably, sensors LEK104-03 (with display) and LEK104-04 (without display) can be combined for enhanced monitoring. The system is capable of measuring SF6 concentrations from 0 to 1500 ppm, with a high digital resolution of 1 ppm, offering high sensitivity for accurate leak detection. It's crucial for environments where SF6 gas is used, ensuring safety and compliance with emission standards. Technical specifications include dimensions for each component to facilitate precise integration into existing setups.
