SynVivo, Inc. products

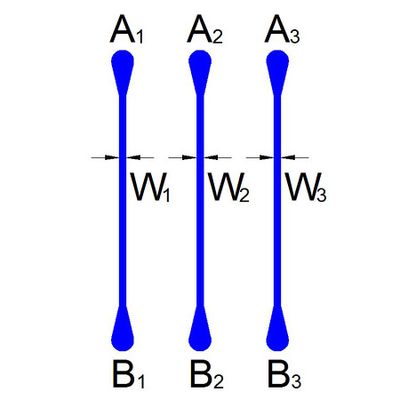

3 x 100μm wide channels, 100μm depth

3 x 250μm wide channels, 100μm depth

30° Sym (15° + 15°) 100μm parent, 50μm daughter widths, 100μm depth.

60° Sym (30° + 30°) 100μm parent, 50μm daughter widths, 100μm depth

The pneumatic priming device is recommended for the automated priming of the co-culture SynVivo chips. This method is much simpler and more robust than the manual method which requires water immersion in a vacuum desiccator. Protocols for using SynVivo chips make use of this pneumatic priming device to impart a constant low pressure on the fluid to prime the microfluidic device.

The SynVivo Cell Impedance Analyzer is designed to measure changes in impedance (resistance) across cells cultured in SynVivo IMN2-Z devices. The SynVivo Cell Impedance Analyzer provides real-time monitoring of cellular changes at a frequency of 500, 1,000, and 10,000 Hz. Perfect for non-invasive and label-free monitoring of tight junction formation between cells, the system offers robust and easy protocols for error-free operations. It comes standard with power adapter and micro grabbers for use with SynVivo IMN2-Z devices.
