Systea S.p.A. products

ROBUST AND RELIABLE: Designed for industrial and environmental on-line applications, ensures the highest level of robustness in the electronics, mechanics and hydraulics components. With a complete separation between electronics and hydraulics and a simple and robust μLFR* hydraulics, it allows long term and reliable operations.

ROBUST AND RELIABLE: Designed for industrial, environmental, laboratory and on-line applications, ensures the highest level of robustness in the electronics, mechanics and hydraulics components. With a complete separation between electronics and hydraulics and a simple and robust hydraulics, allows long term and reliable operations.

MICROMAC ECO is a microprocessor controlled on-line analyzer, specifically designed for automatic monitoring at the outlet of WWTPs.

MICROMAC Total Lead/Total Cadmium is a microprocessor controlled online analyzer specifically designed for automatic and multiparametric TPb/TCd monitoring on several types of waters matrices.

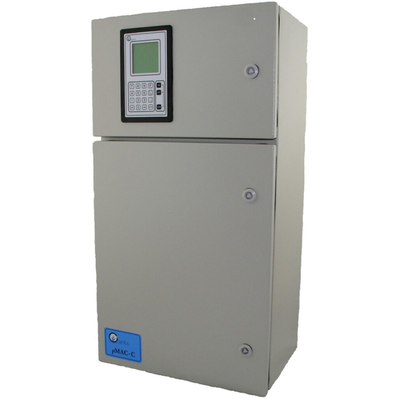

Micromac C TN&TP is designed to analyze Total Nitrogen and Total Phosphorus in the same device; UV digestion is applied for Total N, UV and high temperature digestion for Total P. The measurement is performed in a combined mode, ensuring one hour of measurement for both parameters; 4-20 mA data output is provided at the same time.

The dichromate method follows the international standard where in the sample, after filtration, Potassium Dichromate, Mercury (II) sulfate and Sulfuric acid with a proper catalyst are added; Mercury (II) sulfate concentration is adjusted to mask the expected Chloride amount. The sample is then heated at 170° for 20 minutes or at 150° up to 2 hours (digestion time and digestion temperature can be adjusted depending on the matrix to digest completely all the substances that give a contribute to COD). After digestion the sample is cooled and the absorbance measured at 592 nm is proportional to a COD concentration.

As a result of years of intensive research and development activities, EASYCHEM online is an original direct reading multi-parametric analyzer based on discrete analysis technology, for fully automated chemical measurements of water samples by well-known spectrophotometric methods.

As a result of years of intensive research and development activities, EASYCHEM TOX Early Warning is an original direct reading on-line analyzer based on discrete analysis technology, for fully automated toxicity measurements of water samples using live cultures of luminescent bacteria.

EASYCHEM COLI online is a microprocessor controlled on-line analyzer automating COLILERT®-18 test to detect coliforms in drinking, surface, waste and bathing water.

For waste water or other dirty samples application a self-cleaning filtration unit can be installed close to the analyzer. Thanks to the integrated PLC, the filtration unit runs periodically a self cleaning cycle, using compressed air generated externally or even internally (as option). One filtration unit can be used to supply a clean water sample up to 10 analyzers.
