Systec Controls Mess- und Regeltechnik GmbH products

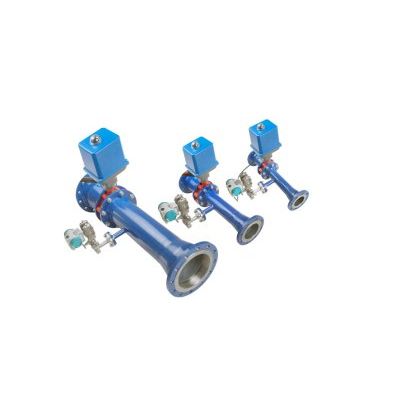

Model Deltafit - Industrial Air Flow Regulator
The precise regulation of the air flow into sewage basins does not only influence the optimal quality of your cleaning process but furthermore still saves pure money because the energy-intensive compressed air is well applied in optimal quantities. A too low oxygen supply leads to insufficient pollutant reduction and consequently to a reduced cleaning performance. In the worst case, an infringement of the desired limits occurs.
Fuji clampOn ultrasonic flowmeters for liquids
Fuji clampOn ultrasonic flowmeters are used for measuring liquid and gas flows in full pipes without beaking into them. In use on pipes from 13mm to 6 Metres!! Particular advantage: The clamp-on mounting of the ultrasonic sensors, so that any cutting of the pipe is unnecessary and pressure loss can be avoided. The clamp-on measurement is available either as a portable, battery run version, or as a non-withdrawable type.Model Flowcom - Energy and p/T compensation computer
The flowcom compensates for flowmeter errors due to pressure or temperature variations and computes mass or standard volume flow rates for gases, steam or liquids. It can even do so for a pair monitoring stations. It also computes heat transfer rates and thermal-energy contents for heat transfer media or refrigerants.
Model Truckflow - Pitot Tube for Gas Flow Metering at Engines
Systec Controls develops and manufactures pitot tubes for more than 15 years. They are used for the measurement of aggressive and polluted gas, liquid and steam flows. Pitot tubes on the engine are of particular advantage because they are insensitive to contamination and have a very low pressure drop. Additionally, they have a very high dynamic and allow ultra fast mesurements. The truckflow pitot tube is particularly recommended for the measurements of air flow before and after the compressor and the determination of recirculated exhaust gas (EGR).
Model Truckflow - Gas Mass Flow Measurement Probe
The truckflow-insertion-probe is an ultra-fast gas mass measurement for the air management to automotive engines. It operates on the principle of differential pressure and is insensitive to deposits such as oil films or particles. A mass measurement for gas according to the differential pressure principle typically consists of a primary element (eg orifice, venturi or nozzle), a differential pressure sensor, a pressure sensor, a temperature sensor and a computing unit that calculates the mass flow or standard volume flow. truckflow combines these five components to the smallest and fastest dp-gas mass flow meter.
TFI4 - the new approch to perfect engine air management
The TFI4 electronics is a sensor system consisting of differential pressure, absolute pressure, and temperature sensors. TFI4 has a processor that analysesand filters the sensor signals and processes the mass flow signal. A CAN-bus provides the connection to an engine controller (ECU) or other computing systems. The TFI4-sensor system was developed for measuring the flow of air intake to an engine, but it offers also other applications such as boost pressure measurement or a p, T-sensor combination. The individual sensors are optimized in a complex calibration process on the individual application. By this the TFI4 sensor system achieves the highest possible accuracy – exactly in the range that is required for your application. With modern coating technologies TFI4 is insensitive to a number of aggressive compounds in the fluid.Ultra Fast Signal Processing – the basis for high accuracy
Flow and pressure measurements close to an engine are influenced by strong pulsations. The superposition of compressor, valve lifts, EGR injection etc leads to a complex pressure-flow characteristic, depending on the engine map, the aging and ambient conditions (air pressure, air temperature) and other variables. Since pressure and flow are coupled by the energy conservation (Boyle Mayotte), the correct pressure measurement and mass flow calculation becomes a complex task. The TFT4 measures pressure, temperature and flow up to 4000 times per second and analyses in real time the condition of the fluid in the pipe by a complex real time algorithm.The New deltaflow DF12 - Meter Neater
systec Controls stands for efficient and precise flow metering solutions. The experience of thousands of succesful applications makes systec Controls your partner for robust, precise and reliable flowmeters for gas, steam and liquids. For smaller pipe sizes systec Controls proudly introduces the new deltaflow DF12. The DF12 now covers pipe sizes from DN20 to DN100 in a very cost-effective way. The patented deltaflow profile ensures a drift-free, maintenance-free measurement and guarantees a brilliant accuracy of better 1% over a wide span. The DF12 as well as all flowmeters of the deltaflow series is characterized by its high robustness against dirt and condensate. This makes it the right flowmeter for challenging applications like biogas, natural gas or exhausts. The extrem low pressure loss helps you optimizing your plant efficiency and minimizing your operational costs.
Systec - Model Deltafit - Air Flow Regulation System
The precise regulation of the air flow into sewage basins does not only influence the optimal quality of your cleaning process but furthermore still saves pure money because the energy-intensive compressed air is well applied in optimal quantities. A too low oxygen supply leads to insufficient pollutant reduction and consequently to a reduced cleaning performance. In the worst case, an infringement of the desired limits occurs.
Ultrasonic Flow Measurement for Gas and Liquids
Systec - Model deltawaveC-Fix - Clamp-On-Ultrasonic Flowmeter
Clamp-On Flowmeter deltawave C is simpler, more precise and more reliable than everything you experienced before. Within a few minutes, the quick-setup guides you through the setup of the electronics - without the need for the manual. The mounting of the transducers is simple and robust. With its new auto optimizer, clamp-on flowmeter deltawaveC will not only perform perfectly on simple water applications, but also on highly contaminated hydrocarbons, natural gas or compressed air pipelines (deltawaveCoG). deltawaveC`s KISS philosophy "Keep-It-Safe-and-Simple" will perfectly meet your requirements for modern process automation.
