Taizhou Jinhulong Mechanical Equipment Co.,Ltd products

Tested by the China National Fisheries Machinery and Instrument Quality Supervision and Inspection Center in July 2009, all nine parameters show that Jinhulong paddle wheel ae「ato「has proved to meet the requirement of industrial standard SC/T6017-1999, including oxygen transfer「ate at 2.59kg/h, surpassing the standard 36.3%, power efficiency at 1.71 kg/k.W.h, surpassing the standard 36.8%. All test results show our paddle wheel aerator will make significant effect on sewage discharging at the bottom of the semi-intensive and intensive ponds.

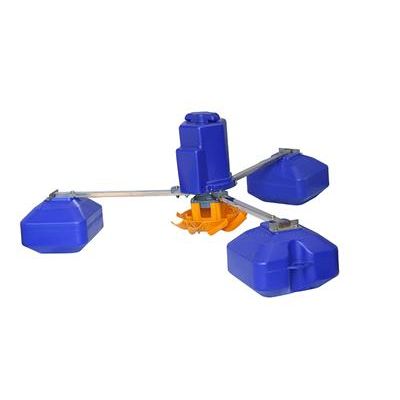

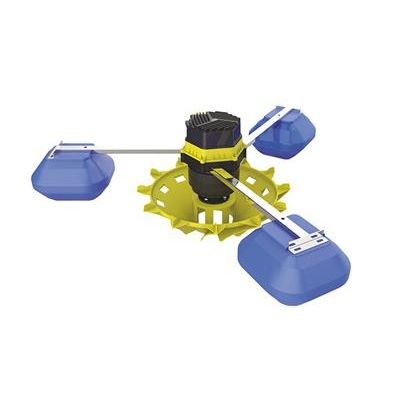

It`s made according to the updated enterprise standard.The major technological index for the enterprise standard is more higher than the industrial standard.  Integrated impeller, easy to disassemble, and common with ordinary water truck impeller, wide application range.  The impeller forms a spiral impeller, which makes the flow of flow formed by the push flow of the oxygen increasing machine, the proliferation of high water flow, and extensive water.

Diesel engine driven multi-impeller waterwheel aerator is developed by Jinhulong Company for aquaculture in power-deficient areas.Impeller aerator. The machine uses a small diesel engine as the power source, and shifts through the gearbox to drive 10~16 sets of waterwheels.Splashing water, driving water to flow, dissolving oxygen, decomposing harmful substances, improving pond water quality, is aquaculture A good helper for the family.

An Mechanical oil seal, 9 spline (Taiwan-type) with different voltage, frequency and power can be manufactured according to customer requirements.

An Chinese-type 1.5 kW main unit with different voltage, frequency and power can be manufactured according to customer requirements.

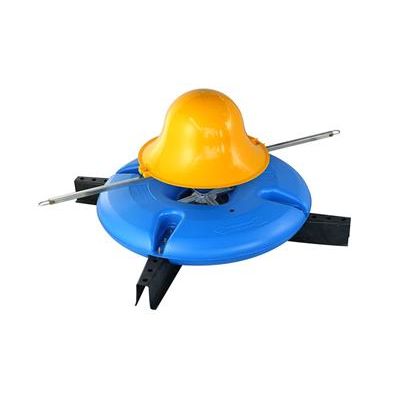

Surge aerator of simple and light design has the biggest advantage of power saving. Being different from impeller and paddle wheel aerators, its aeration principle lies in the unique flower-shaped spiral impeller fit with the unique float-bowl design, which can make the output water erupted upward to create a certain area of the water body like boiling water and surge, thereby increasing the water contact with the air during eruption to enhance the dissolved oxygen in the water. Secondly, the water goes around the motor and the reducer, allowing long hours’ running thanks to optimum water cooling, so as to eliminate problems like being burnt out, increased current and overheating after the long time running. This aerator can operate normally at the low voltage of 300~350V.

The product uses the gear deceleration technology of automobile engine and aircraft engine to improve the output torque, make the load more stable and reduce the noise. Pond wave making accelerate oxygen dissovle rate,modulate upper and lower water temperature, and improve water quality. The product is more efficient and efficient than the 1.5kW power products of the same kind, and the range of water waves is large.

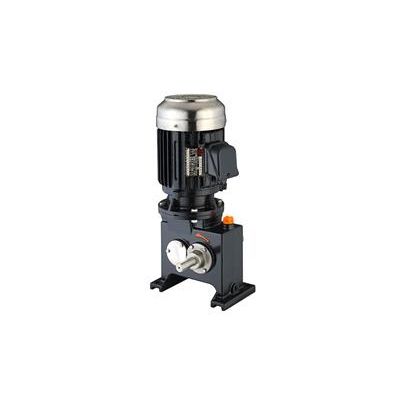

No gear transmission, low noise, low energy consumption, high transmission efficiency, greatly improving the various drawbacks of traditional impeller gear transmission and prolonging the service life;

Compact structure,large torque output,high accuracy,low noise, stable performance and less energy consumption
