Taizhou Shuanghao Plastic Mould Co.,Ltd products

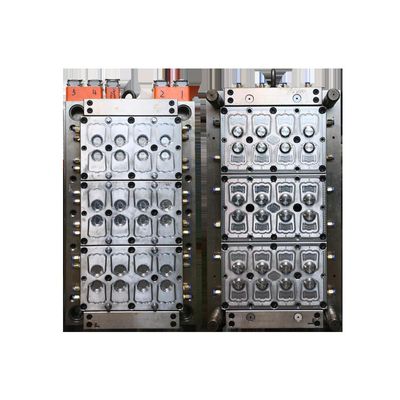

Core & Cavity Steel: 2316#steel, S136, H13, 718, SKD61, P20, S50C, 45#steel, 4Cr13, 3Cr13, BeCu or based on customer`s requirement. Mould base & Standard Component DME,HASCO,MISUMI,LKM,Self-made etc. Steel hardness: HRC30-35 for base material. HRC45-48 for core and cavity material. HRC60-62 for special parts material. Plastic material PP,,PE,HDPE etc. Cavity Number 1*4, 1*6, 1*8,1*12, 1*16, 1*24, 1*32, 1*48 etc. Injection System Pin gate, Submarine gate, Valve gate etc. Ejector System Unscrew by motor, stripper plate, ejector sleeve, ejector pin. Cycle Time Based on cap design. Tooling lead time 30-60 Days. Mould life At least 1.5million Shots. Quality assurance ISO9001:2008/ CE certificate for European customers.

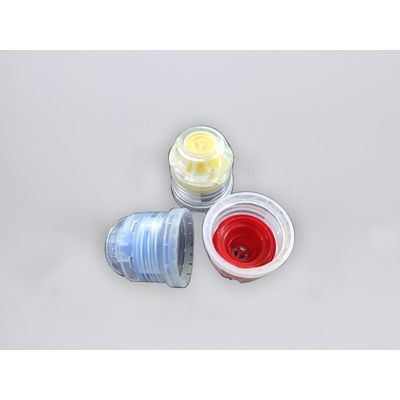

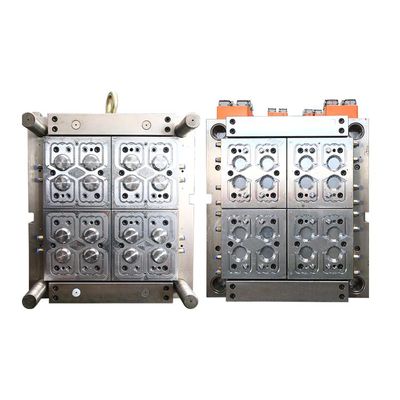

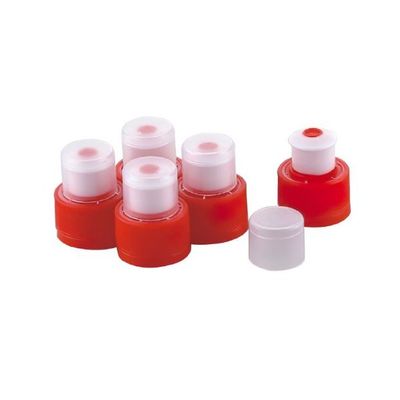

Product Name Push-pull cap mould. Core &Cavity Steel. 2316#steel, S136, H13, 718, SKD61, P20, S50C, 45#steel, 4Cr13,. 3Cr13, BeCu or based on customer`s requirement.. Mould base & Standard Component DME,HASCO,MISUMI,LKM,Self-made etc.. Steel hardness: HRC30-35 for base material.. HRC45-48 for core and cavity material.. Plastic material PP,,PE,HDPE etc.. Cavity Number 1*4, 1*6, 1*8,1*12, 1*16, 1*24, 1*32, 1*48 etc. Injection System Pin gate, Submarine gate, Valve gate etc. Ejector System Unscrew by motor, stripper plate, ejector sleeve, ejector pin. Cycle Time Based on cap design. Tooling lead time 30-60 Days. Mould life At least 1.5million Shots. Quality assurance ISO9001:2008/ CE certificate for European customers.

Location: Taizhou, China. Business Type: Manufacturer, Exporter. Brands: SHUANGHAO. Certificate: ISO9001,CE,TUV. Model: Plastic mould and machinery. Delivery method: By air, By sea, By express. Minimum order quantity: 1PC/SET. Price: Consultation. Packing details: Standard export packing way. Delivery time: 30-60days. Payment method: TT, LC, Paypal, Westen Union.

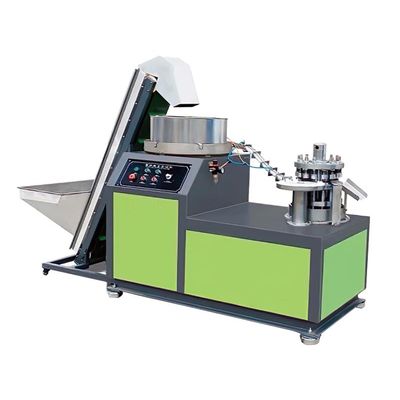

Machine main structure: Sorting bin(Vibrating disk or Centrifugal pan), Channel, Die heads for folding and slitting, Holder, Blade, Heater for blade. Vibrating disk: when the design of cap is: DiameterHeight, the cap can stand well and it will not be fallen. It only use the centrifugal pan to arrange the cap fixed direction is OK. Installed electrical power: 1.2KW/Absorbed electrical power: 0.8KW. Compression air consumption: 0.6m3/h. Cap diameter and height: Can be customized. Bigger cap and small cap both can be designed to be slitted.

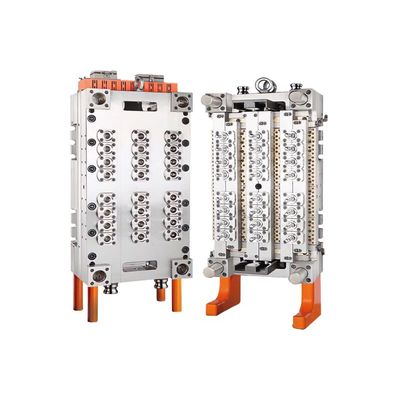

Core &Cavity Steel: 2316#steel, S136 stainless steel or based on customer`s requirement. Mould base & Standard Component: DME,HASCO,MISUMI,LKM,Self-made with P20, 3CR13, 4CR13 material etc. Steel hardness:: HRC30-35 for base material. HRC45-48 for core and cavity material, HRC60-62 for special parts material. Plastic material: PET, PP, etc. Cavity Number: 1*4, 1*6, 1*8, 1*12, 1*16, 1*24, 1*32, 1*48 etc. Injection System: Pneumatic Valve gate with shut off&free-cut or short tail or long tail etc. Ejector System: Mould slider + Stripper plate ejection. Cycle Time: Based on PET preform thickness. Tooling lead time: 30-60 Days. Mould life: At least 2.0million Shots. Quality assurance: ISO9001:2008/ CE certificate for European customers.

Adopt imported steel P20, Germany 2316, S136 etc. Each cavity and core have independent cooling system, with independent parts for replacement Rational mold design to extend mold life and get high production efficiency. Mirror hand polishing and mold plates chroming to create added-value. Precision Machining to ensure high production efficiency & fine parting line effect. Skilled Language in communication and experienced in international standard. Hot runner system: China advanced brand or imported hot runner system brand. Each cavity has independent temperature control and heater system.

Adopt imported steel P20, Germany 2316, S136 etc. Each cavity and core have independent cooling system, with independent parts for replacement Rational mold design to extend mold life and get high production efficiency. Mirror hand polishing and mold plates chroming to create added-value. Precision Machining to ensure high production efficiency & fine parting line effect. Skilled Language in communication and experienced in international standard. Hot runner system: China advanced brand or imported hot runner system brand. Each cavity has independent temperature control and heater system.

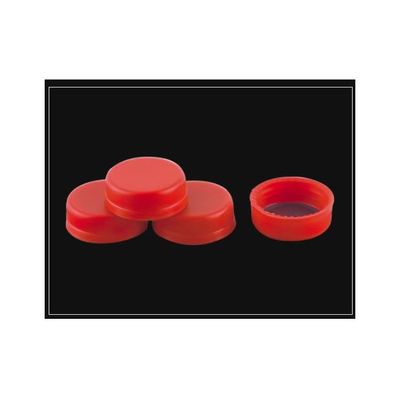

100% new material with food grade. Good pilfer proof cap. Different neck diameter and thread (accord with customers requirement). We can produce different kinds of caps in according with customer special requirements after opening new moulds or modifying our existing moulds. Different colors can be chosen (blue, red, clear, milky, and yellow etc.). hot filling or cold filling or Water. Sample information: free samples will be sent for evaluation if needed.
