Tanis Technologies products

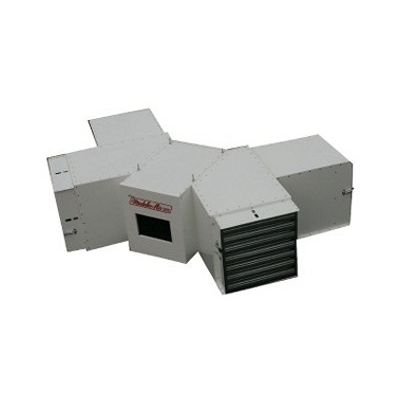

The AF-2243 is an excellent choice for shop coverage. This 4 intake system draws in air from many different angles, creating circulation throughout your shop. This unit works great above plasma or laser tables.

The AF-2423 is an excellent choice for shop coverage. This 4 intake system draws in air from many different angles, creating circulation throughout your shop. This unit works great above plasma or laser tables.

The AF-3623 is our largest unit currently available. With 6 intakes, this system covers a large circulation area. This unit is be best value for it`s class in terms of CFM per dollars. It is an excellent choice if you are looking to cover a large area.

The AF-3623 is our largest unit currently available. With 6 intakes, this system covers a large circulation area. This unit is be best value for it`s class in terms of CFM per dollars. It is an excellent choice if you are looking to cover a large area.

Our mist collectors come in two sizes: 1,000 CFM and 2,000 CFM.  The smaller unit is primarily used for small mills and turning centers up to 250 ft³.  The 2,000 CFM model is our workhorse, able to handle two medium sized mills or one large mill up to 1300 ft³. It also handles cast-iron dust easily with our cast-iron attachment, with the capacity of up to 14 gallons per minute spraying straight into the intake. Our Stainless steel unit features a HEPA filter on the exhaust , easy cleaning surfaces, and like the standard 2,000 CFM model, will accept any level of filtration.

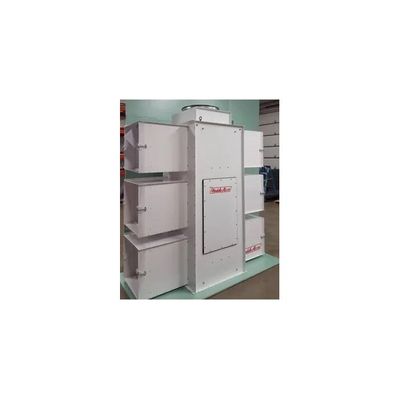

Voltage: 208v, 230v, 480v, 575v. Motor: 10 HP premium grade. AMPs-FLA: 208v (27), 230v (25), 480v (12.5), 575v (10). Drive: Belt and pulley system with auto-tensioner. CFM: 15,000. Weight: 730 lbs. Dimensions: 31” L x 91” W x  88” H. Construction: Steel, Aluminum, Bolted, Riveted, Sealed. Finish: White, two-coat power coat. Applications: Clean and circulate, whole shop filtration. Db: 68. Standard Features: Easy, no-tool filter changes. Balanced/Machined drive assembly parts. Balanced blower. Greaseable bearings with easy-access grease fitting located outside unit. Comes standard with spark arrestors. Many filter options to suit your needs. Easy-hang uni-strut mounting options available. NOTE: this unit is mounted vertically.

Ambient Air Cleaner. Voltage: 208v, 230v, 480v, 575v. Motor: 10 HP premium grade. AMPs-FLA: 208v (27), 230v (25), 480v (12.5), 575v (10). Drive: Belt and pulley system with auto-tensioner. CFM: 15000. Weight: 770 lbs. Dimensions: 39” L x 91” W x  88” H. Construction: Steel, aluminum, bolted, riveted, sealed. Finish: White two-coat powder coat. Applications: Clean and circulate, whole shop filtration. Db: 68. Standard Features:. Easy, no-tool filter changes. Balanced/Machined drive assembly parts, balanced blower, grease-able bearings with easy access grease fitting located outside the unit. Comes standard with spark arrestors. Many different filter options to suit your needs. Easy-hang uni-strut mounting options available.

Voltage: 208v, 230v, 480v, 575v. Motor: 5 HP premium grade. AMPs-FLA: 208-230v (13.7-12.6), 480v (6.3), 575v (5). Drive: Belt and pulley system with auto-tensioner. CFM: 8500. Weight: 400 lbs.. Dimensions: 31” L x 82” W x  58” H. Construction: Steel, aluminum, bolted, riveted, sealed. Finish: White two-coat powder coat. Applications: Clean and circulate, whole shop filtration. Db: 68. Standard Features: Easy no-tool filter changes. Balanced/Machined drive assembly parts, balanced blower, greaseable bearings with easy-access grease fitting outside unit. Comes standard with spark arrestors. Many different filter options to fit your needs. Easy-hang uni-strut mounting options available.
