The Taoglas Quantum, KHA16.24C is a 2D antenna array with integrated beamformer RFICs to provide full amplitude and phase control across the 16 elements comprising the array. This active array is integrated into a multi-layer PCB that contains the RFICs and 16 antenna elements; layers provided for power optimization and thermal control, digital control, and RF feed lines all in the footprint of 53×84 mm. The array has separate H and V-pol ports for dual linear performance. The array scans along both azimuth and elevation axes. The array is designed to operate from 26.5 to 29.5 GHz, making this ideal for 5G applications.

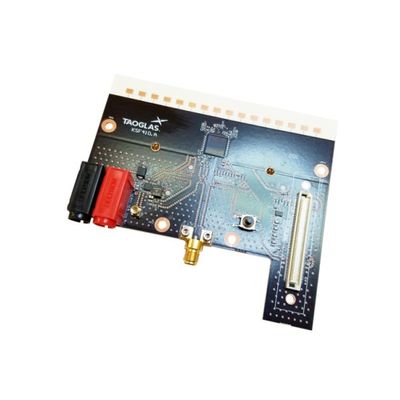

The Taoglas 5G NR, KSF410.A is an industry first, 5G mm-wave beam-steering antenna with a sixteen-element linear phased-array. With 17dBi gain, a wide 3dB beamwidth for wide angular coverage in azimuth, most of the energy is focused within 45° of the main beam. Since propagation losses at Ka-band are 20x more than at 6GHz, the beamwidth of the antenna is reduced as the antenna gain increases. To alleviate this problem, the fan-beam type antenna can be useful to provide simultaneously high gain and wide azimuth coverage. The KSF410.A provides an integrated antenna solution for use cases such as 5G Ka-band fixed access wireless gateways.

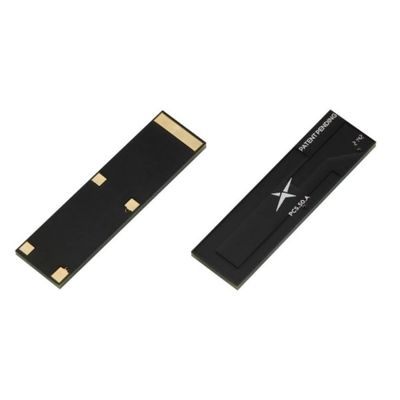

The Taoglas Universe PCS.50A is a patent pending active Cellular and GNSS antenna designed specifically for IoT devices with small ground planes. With an unprecedented level of integration, it combines aperture tuning and active switching technologies to provide a wideband coverage for GNSS and most 4G cellular bands, including the most challenging 700MHz bands.

Designed for electronic and IoT devices, the Taoglas SPKM range of dynamic audio miniature speakers deliver long-lasting pure and true sound, critical for a product that requires clear audio output.

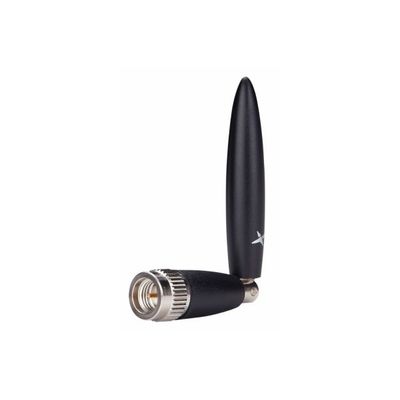

The Taoglas TG.66 is a hinged monopole antenna designed to cover all global 5G/4G frequencies between 600MHz and 6GHz. Despite its miniature size, just 70.3 x Ø10mm, the TG.66 has omnidirectional radiation patterns and provides stable gain across the hemisphere. The TG.66 is supplied with a rotatable 90° hinged SMA connector meaning can be covertly installed on all types of gateways and routers at straight or bent angles. The TG.66 performs excellently at 5G bands with efficiencies above 45% across the entire 5G/4G spectrum when positioned on the edge of a small ground plane of just 120 x 45mm in size.

The Taoglas Accura AGVLB.25A is a multi-band GPS, GLONASS, BeiDou/Compass and IRNSS, high-performance GNSS L1 / L5 Active Stacked Patch Antenna for high precision GNSS accuracy and fast positioning. It utilizes a 25*25*8mm advanced dual-stacked ceramic patch antenna with optimized gain for GPS L1/L5, GLONASS, Galileo, IRNSS and BeiDou bands. Integration of IRNSS allows for better navigation accuracy and enables compliance with AIS-140 for tracking devices in India.
