Tapasan Inflatable Pipe Plugs and Packers products

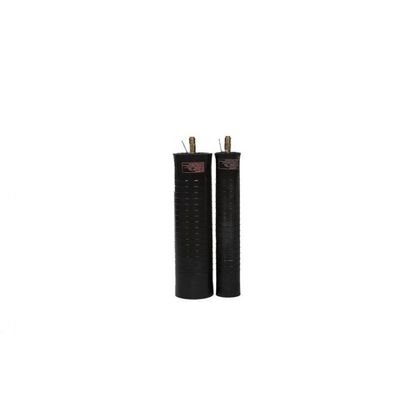

Mini Pipe Plugs are channel balloons that are used in case of short pipe lengths to be blocked temporarily. It is produced from SBR + NR blended rubber and strength cloths. It can operate at temperatures between -30 ° C and +70 ° C. 1.3 times the working pressures, they are tested and have high explosion pressures.

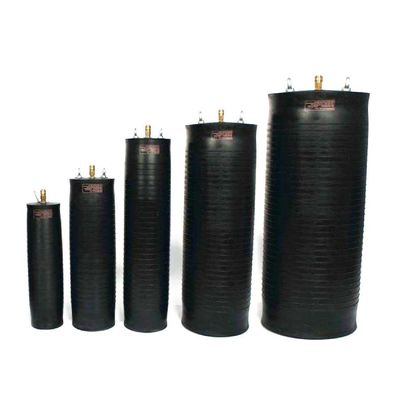

C Pipe Plugs are channel balloons that are used in case of short pipe lengths to be temporarily blocked. It is produced from SBR + NR blended rubber and strength cloths. It can operate at temperatures between -30 ° C and +70 ° C. 1.3 times the working pressures, they are tested and have high explosion pressures.

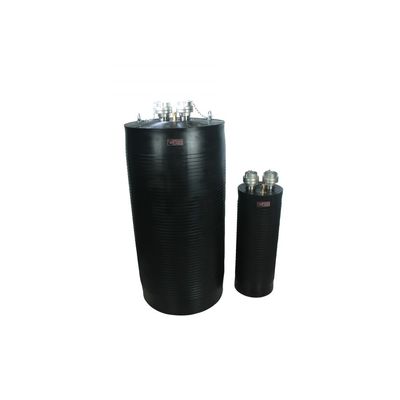

Recommended for use in areas with high back pressure. It is produced from SBR + NR blended rubber and strength cloths. It can operate at temperatures between -30 ° C and +70 ° C. They have 1.3 times the working pressures and have very high bursting pressures.

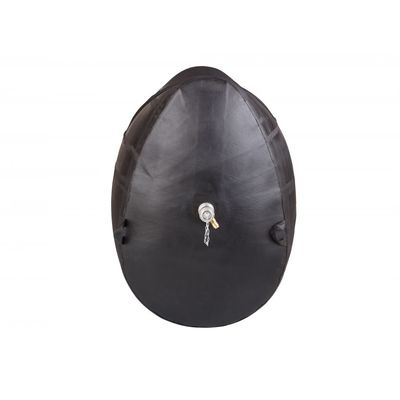

Egg - shaped pipe plugs are products used to dull the oval pipelines temporarily. Egg - shaped pipe plugs are made from SBR+NR mixed rubber and strong fabrics. Egg-shaped pipe test plugs are able to run between -30°C and + 70°C. They are tested at the 1, 3 times higher than their working pressure and they have ultrahigh bursting pressure.

(Min.Pipe Diameter) (mm): 50. (Max.Pipe Diameter) (mm): 70. (Mak. Working pressureı) (bar): 2,5. (Product Diameter) (mm): 45. (Item Length) (mm): 145. (Product weight) (kg): 0,3. (Back Pressure) (bar): 0,5.

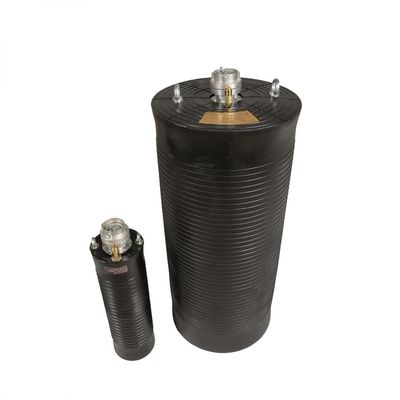

Pipe test plugs have the bypass system to provide the opportunity for test of the pipelines during their dulling temporarily and change their fluid direction. Pipe test plugs are made from SBR+NR mixed rubber, nylon cord, kevlar cord and strong fabrics. They are able to run between -30°C and + 70°C. They are tested at the 1, 3 times higher than their working pressure and they have ultrahigh bursting pressure. Their biggest advantage is that they reach the high friction force rate in the working pressure grasping the pipe diameter at very low pressures.

Pipe Diameter (mm) 35-70. Max. Working Pressure (bar) 2.5. Product Diameter (mm) 33. Product Length (mm) 210. Bypass Diameter (inch) 2x1/8”. Product Weight (kg) 0.3. Rear Working Pressure (bar) 1.0.

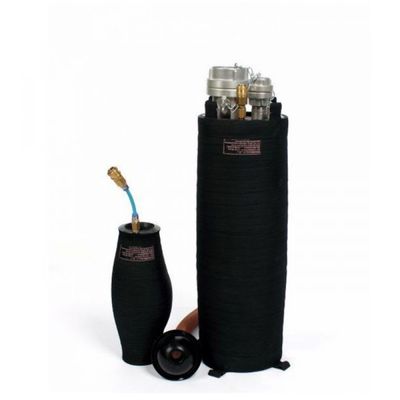

Professional pipe test plugs have the pontoon system which enables to drain the entrained air during the test of pipeline having the elevation difference, with water as well as they act as dulling pipelines temporarily. Professional pipe test plugs are made from SBR+NR mixed rubber and strong clothes. Professional pipe test plugs are able to run between -30°C and + 70°C. They are tested at the 1, 3 times higher than their working pressure and they have ultrahigh bursting pressure.

(Pipe Diameter) (mm): 100-200. (Max. Working Pressure) (bar): 1.5. (Product Diameter) (mm): 94. (Product Length) (mm): 400. (Bypass Diameter) (inch): 2”. (Product Weight) (kg): 5.2.
