Tarnos, S.A. products

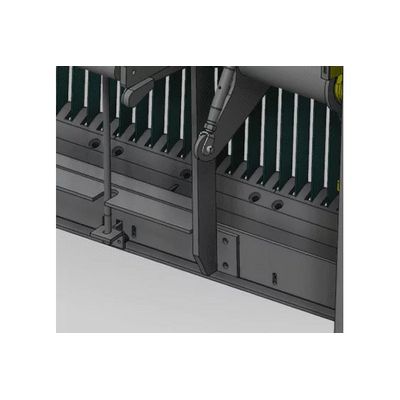

Heavy duty design composed of parallel bars with back reinforcement. Designed for collection of coarse solids (20 to 100mm or more). Anchored to the civil works. Vertical or slanted design (up to 15° for compatibility of trash rake). High structural strength. Designed for automatic cleaning. Removable bar screen for manual cleaning (link a otros equipos de filtración).

Automatic band screen or traveling band screen with a mesh size from 0,5 mm to 10mm, that is designed to remove all fine solids (algae, plastics, leaves, jellyfish, branches, etc). Each band screen is comprised by a head section, a set of guides and a series of chain-linked filtration baskets. Heavy duty design, with unitary flow from 1.000 m³/h to 150.000 m³/h. It can be designed to comply with very strict material specifications. Optionally, it can include a fish protection system

Stop logs are installed in the inlet and outlet of screening channels, at the exit of water intake inlet pipes or at the inlet of pump bays. They allow isolating equipment and channel sections during maintenance operations while the rest of the installation is still operational. A stop log, or stop log board, is composed by one or several sections, which are introduced into the channel between guides embedded on its sides.

Automatic band screen or traveling band screen with a mesh size from 0,5 mm to 10mm, that is designed to remove all fine solids (algae, plastics, leaves, jellyfish, branches, etc). Each band screen is comprised by a head section, a set of guides and a series of chain-linked filtration baskets. Heavy duty design, with unitary flow from 1.000 m³/h to 150.000 m³/h. It can be designed to comply with very strict material specifications. Optionally, it can include a fish protection system

Parallel bar screen, frame mounted. Removal of coarse solids, 20 to 100mm. Vertical design, designed to slide between embedded or anchored lateral guides. Can operate with a lifting beam and be compatible with same width stop-logs. Heavy duty design. Designed for manual cleaning, when expected debris collection rate is very low.

Automatic band screen or traveling band screen with a mesh size from 0,5 mm to 10mm, that is designed to remove all fine solids (algae, plastics, leaves, jellyfish, branches, etc). Each band screen is comprised by a head section, a set of guides and a series of chain-linked filtration baskets. Heavy duty design, with unitary flow from 1.000 m³/h to 150.000 m³/h. It can be designed to comply with very strict material specifications. Optionally, it can include a fish protection system

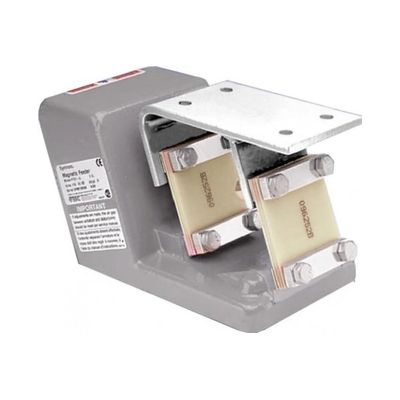

Characteristics: Instant flow dosing and regulation via manual control or external signal. Stable and quiet operation between 70 and 80 dB. Product care. IP65 / ATEX configurations depending on model. No moving parts, low maintenance.

Characteristics: Instant flow dosing and regulation via manual control or external signal. Custom tray designs with covers, wear protection, tubular formats, and various materials. ATEX 21 certificate. Availability of special voltage configurations.

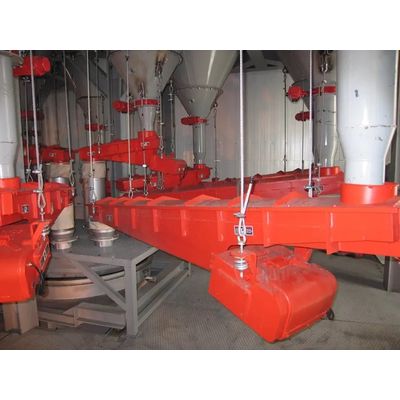

Characteristics: Operate below resonance frequency. Fast start-up and smooth stop without losing control. Driven by a single conventional electric motor. Stable operation and uniform dosage for different background loads. Custom design based on product and materials.

Characteristics: Driven by two rotary vibrators. Operation possible with 2, 4, 6, or 8-pole configurations. Robust equipment. Simple maintenance. Tray design tailored to customer requirements.
