Taset Inc. products

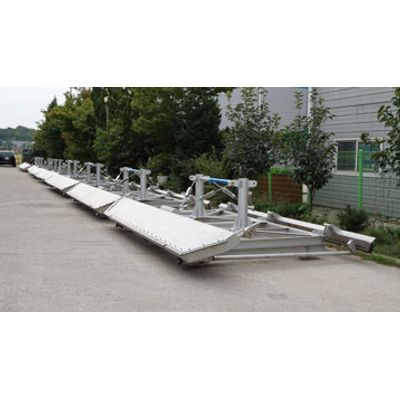

Usage: Perforated (fine) screen for wastewater treatment plants. Characteristics: Perforated screen (Ø3~5mm). The existing flat screen of wastewater plants can be replaced with folded band screens without making any changes to civil works. There are no idle sprockets under the screen. A separate debris drier is needed.

Type: Inclined Rotary Drum Screen. Usage Applications: The purpose of the product is to remove debris in sewage channel / Ultra fine screen less than 1mm for MBR protection / Normal fine screen for sewage and wastewater treatment plants.

Type: Non-metal chain flight sludge collector. Applications: Sludge removal in the sedimentation tank by a flight mounted on a caterpillar chain. (Water purification plant, Sewage treatment plant, Wastewater treatment plant).

Scraping efficiency is maximized as the structure of the scraper minimizes water flow resistance and sludge floating. Water quality of the discharged water is made constant by changing running speed according to turbidity. Energy is saved and efficiency optimized by controlling the running speed according to sludge loads.

Scum blade using buoyancy and buoyant scum box. Improvement in sedimentation efficiency due to improved feed well. Installation of inclined plate inducing floc formation. Inexpensive cost for maintenance and management.

Rate of rake varying with inflow water. Structure where the obstacle can not pass through the gap between the electric potential screen and the main screen. Maintains constant tension with take-up device without chain release.

Floc formation in water blended with chemicals is maximized. It is most efficiently designed and produced depending on shape structure and dwelling time of flocculants. Variable-speed operation is possible for 24 hours.

Continuous operation is possible since filtration and back washing are implemented simultaneously. Back washing is possible with small power since back washing is realized in only one cell. Water collection apparatus in the lower part capable of support of media layer and back washing. Automatic operation according to water level/time. Quantity of back washing cases is small. Diversified field applications such as civil engineering structure and mobile tank structure, etc.

High nitrogen treatment: Optimal method for treating substances high in nitrogen content such as livestock manure, food wastewater, recycle water, wastewater, and leachate.
