TATANO s.n.c. products
Solar Panels
Tatano - Natural Circulation Solar Systems
The operating principle of a natural-circulation boiler is quite simple. It optimizes the capture of solar energy that reaches the earth`s surface producing hot water by convective heat transfer, which allows the movement within the solar panel heat exchanger.
Because of its high-efficiency, it ensures functioning even at low temperatures. Natural circulation solar systems consist of pre-assembled components that ensure a quick and safe installation. It isn`t necessary to install a pump or some electronic controls.
The panels can be connected in parallel to provide a large scale hot sanitary water (HSW)
Domestic Heating - Biomass Boilers - Wood Pellet-Wood

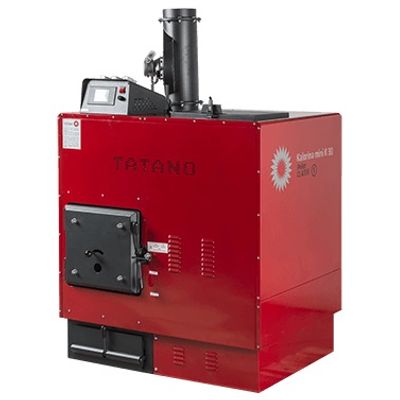

Tatano Kalorina - Model Mini K - Low Emission Boiler
The Kalorina Mini K Low Emission Boiler, developed by Tatano, is an advanced heating solution designed for both new constructions and renovations of existing systems in single-family homes. Featuring a compact design, this boiler incorporates dual combustion chambers capable of burning both pellets and wood, coupled with a refractory-lined burner and an integrated ash drawer. The boiler's technology ensures high efficiency through its safety heat exchanger, superior insulation, and innovative energy management systems like a silent smoke extractor. With a power modulation range of 1:4 and compliance with Class 5 environmental standards, it efficiently adjusts to varying energy demands, delivering low emissions. The system includes a touchscreen interface for straightforward interaction and remote management capabilities via GSM and Wi-Fi. Additionally, an automated heat exchanger cleaning system, bolstered by a Lambda sensor, guarantees sustainable combustion with continuous performance monitoring and optimization. The ability to incorporate a pneumatic loading system further complements its versatility for sustainable heating.Industrial Heating - Biomass Boilers - Wood Pellet Heating

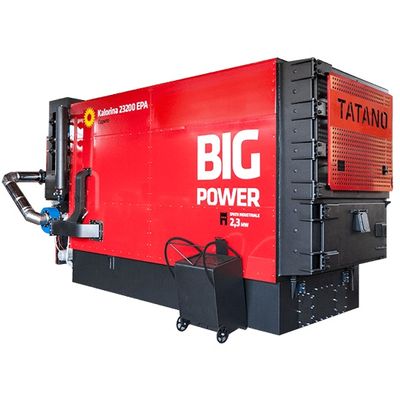

Tatano Kalorina - Model 22 E Series - Industrial Pellet Systems
The efficient use of an energy source other than fossil fuels, combined with the most modern technologies, allows the construction of industrial wood pellet or wood pellets that meet the needs of structures characterized by a high demand for thermal energy: industries, companies of the manufacturing sector, public bodies, greenhouses, district heating and cogeneration networks. Industrial wood or wood pellet boilers guarantee the highest levels of efficiency and a significant reduction in costs and contribute decisively to environmental sustainability for the responsible management of natural resources. The Tatano industrial heat generators are comparable to a gas or oil heating system with fully automatic operation. Tatano follows every stage of the installation, from the first feasibility study to commissioning. Power range: from 1 MW to 3 MW.
