Taylor Machine Works, Inc. products

11-ft. ULTRA-VU 2-Stage Mast (109-in lowered height). 60-in Pin-type "C" Carriage. 2.5-in X 6-in X 48-in pin mounted Forks. Cummins QSF 3.8L 120Hp Tier-4 Final diesel Engine. Donaldson dy-type air cleaner w/safety element & restriction indicator(vertical air intake extension with TaylorMax Precleaner). Dana TC-20 3-Speed powershift Transmission. Powertrain Protection System for engine and transmission. Kessler D-41 HD planetary Drive Axle with Wet Disc Brakes. Taylor 125 welded steel Steer Axle (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles). Solid plate steer angle stop (more contact area than bolt heads which require adjustment). 8.25 X 15 - 18PR bias pneumatic drive and steer tires.

The XH-180 Pneumatic Tire Forklift by Taylor is a robust material handling machine designed specifically for challenging environments. It features a pneumatic tire configuration, which ensures optimal traction and stability when navigating uneven surfaces commonly found in industries such as lumber, distribution, and manufacturing. The vehicle is capable of handling loads up to 18,000 lbs, indicating substantial lifting power. The chassis and cab are built with durability in mind, integrating advanced electrical systems for efficient operation. Standard safety features include a comprehensive VIP system, safety lights, and cab guards. Equipped with essential operator guides and a detailed forklift safety manual, the XH-180 ensures safety and efficiency. It offers customization options like specialized parts and accessories, including load scales, rider seats, and telematics for enhanced operation insights.

The XH-300L Pneumatic Tire Forklift by Taylor Machine Works is designed to tackle demanding material handling tasks with efficiency and precision. This forklift has a substantial lifting capacity of 30,000 lbs and a comprehensive lifting height of up to 148 inches. It features a robust chassis for enhanced durability and stability, while the cab is engineered to provide ergonomic comfort for operators. Its advanced electrical systems ensure reliable performance in a variety of industrial settings. This forklift is suitable for industries such as lumber, distribution, manufacturing, and textiles where heavy-duty lifting is essential. Taylor Machine Works provides customization options to optimize this forklift with specialty parts, enhancing functionality and safety with options like safety lights, cameras, cab guards, fire protection, load scales, and advanced telematics features. This forklift is a practical choice for businesses seeking reliable equipment for strenuous applications.

Taylor Machine Works has designed, built, and marketed empty container handlers since 1976. "Big Red" empty-container handlers reflect that experience and knowledge gained during those years. Our empty container handlers are "All American," designed and built in the USA, We strive to stay on the cutting edge of industrial technology, always committed to designing and building the best, most productive, most dependable container handling equipment in the world. Features include: Taylor Made Spreader, Wide stance drive axle, End User Diagnostics, Joystick Controls, Heavy Duty Lift Chains, Enclosed All-Steel Operator Cab, Super Heavy Duty Hydraulic and Engine Cooling System, Heaviest built steer axle in the industry and standard LED lights. Taylor`s empty container handlers are equiped with a wide assortment of masts and attachments to better meet your particular need. The following lists the standard mast and attachment by model.

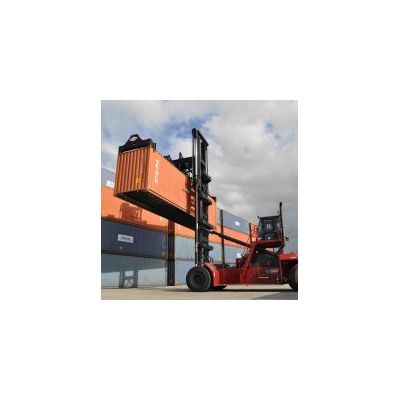

Taylor Machine Works` line of loaded container handlers continue with the new XLC Series Loaded Container Handlers. The XLC Series loaded container handlers anchor the tilt cylinders to the counter-weight. Each model in the XLC line features a Taylor Made Spreader, Wide Stance Drive Axle, End User Diagnostics (TICS), Joystick Controls, Heavy Duty Lift Chains, Enclosed All-Steel Operator Cab, Super Heavy Duty Hydraulic and Engine Cooling System, Heaviest built steer axle in the industry, and standard LED lights.. With the lowest total operating cost in the industry, it`s no wonder why so many businesses choose Taylor Loaded Container Handlers. 90,000-lb. Capacity at 97-in. Load Center

The Taylor GTC-40 Cushion Tire Forklift is specifically designed for industrial applications that require precision and durability. This model features a compact design with a 24-inch width and a lifting capacity of 4,000 pounds, making it ideal for navigating tight spaces and handling substantial weight. Its chassis is engineered for robustness, ensuring stability during operation. The cab offers ergonomic controls for operator comfort and efficiency. Electrical systems are integrated throughout for reliable performance. Additionally, the forklift is equipped with uprights and carriages that enhance load handling capabilities. Key available options include safety lights, cameras for enhanced visibility, and fire protection systems. Advanced telematics and keytroller systems can also be incorporated to improve operational monitoring and security. The GTC-40 is suitable for diverse industries such as manufacturing, distribution, and retail, providing a versatile solution for various material handling needs.
