Taylor Valve Technology products

The RB Series unique valve trim design provides accurate control by the use of precision orifices in the flow nozzle. This design minimizes wear and maximizes service life.

The MC and MCX Series pressure and flow control valves feature a superior design for unequalled throttling and accuracy. Unique sealing and fluid flow dynamics permit compliance with current environmental (FTE) requirements.

The MD Series pressure and flow control valves feature durable, high quality construction for longer life and drastically reduced maintenance.Taylor Valve MDA / MDAS Series Chokes are made with wear resistant material to extend service life, with redundant O-Rings on the Bonnet Seals and Stem Seals that help prevent leakage. Fully Guided Stems reduce imbalance and vibration.Control Discs provide ASME Class lll/IV Shut off.

The C series is a variable orifice valve economically designed to provide accurate and dependable flow control and an increased valve life under all types of conditions and applications.

The 7700 Back Pressure Regulator (BPR) Series is an excellent and economical device for relief and control of pressure in liquid and gas service. Valve control is accomplished by upstream pressure acting on a lapped piston, which is acted on by a spring. The valve will open at a determined set pressure, which is field adjustable.

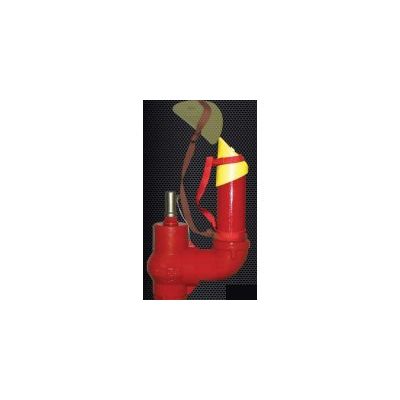

Our EPC’s ensure valve and system protection from environmental elements, enhancing service life and limiting repair costs. A unique lanyard design and a leak detection capability set this apart from competitive products. NOW, introducing the threaded EPC cap! A much more convenient and permanent solution.

The Taylor Valve 9000 Series Stack Vent Valve provides reliable pressure and vacuum protection for storage tanks.  The valve opens with a pressure condition that exceeds the set pressure or a vacuum condition that exceeds the pre-determined vacuum setting.  The valve returns to a bubble-tight, sealed position once the tank pressure returns to within the desired range.

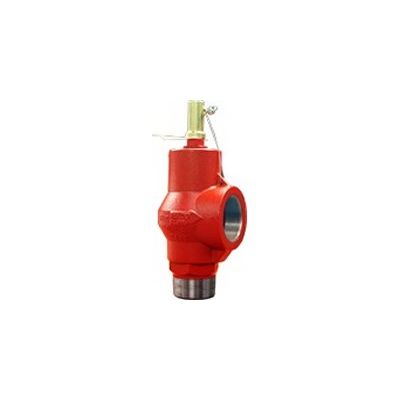

Our 8200/8300 Series safety relief valves are engineered and manufactured to the highest standards and feature a high endurance soft seat which guarantees a bubble-tight seal for hundreds of “pops”. Our unique patented radius disc design guarantees dependable, repeatable relief even under the most difficult of conditions.

The 9400 Series High Pressure Relief Valve provides pressure protection for various types of equipment at high-pressure conditions with liquid media. The 9400 Series valve exhibits the characteristics of a modulating relief valve in that there is virtually no blow-down, and therefore will reseat very near set point following relief.

The 8400 Series is designed for pressure relief in applications where hazardous vapors are to be piped away. Maintains safe, internal working pressure while preventing routine expulsion of waste to the atmosphere.
