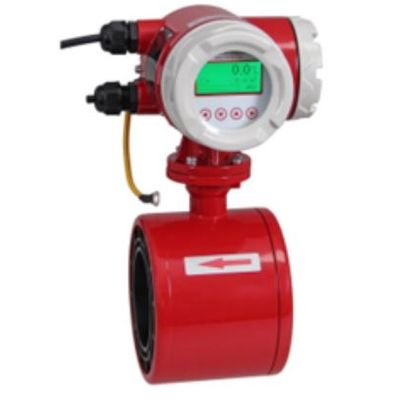

Flowtech MID is a range of electromagnetic flowmeters offered by TEC42 for measuring liquid flow in full pipes in industrial and water applications.

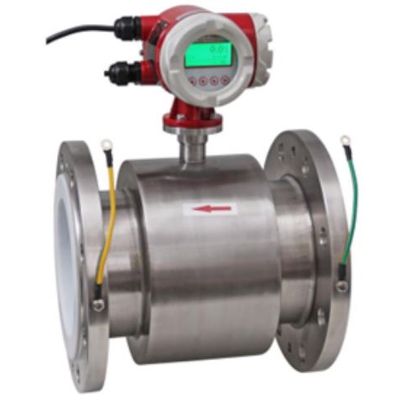

The Flowtech Waver Compact MID flowmeter DN80 is a precision instrument designed for accurate measurement of water or liquid flow in pipes with a DN80 (3-inch) nominal diameter. It complies with MID (Measuring Instruments Directive) standards, ensuring reliability for billing and regulatory applications in Europe. This compact model suits industrial, water management, and utility installations requiring high accuracy and durability.

The LDM is a calibrated measuring device for backflow-free flow measurement of wastewater in partially or fully filled pipes, in open channels or in gravity pipes. The system measures even the lowest levels with the highest reliability. 10 ultrasonic flow speed measuring sections distributed over the entire cross-section ensure the greatest precision in flow measurement. The system is suitable for water, wastewater and raw sewage. The LDM is characterised by its high accuracy, which enables cost accounting according to the source. The data is transmitted directly to your process control system via the most common interfaces. The system monitors itself independently and reports any disturbing contamination. The LDM is simply mounted between two pipes with bolts / threaded rods. Thanks to its standardised length, an old measuring device can be replaced by an LDM without any pipework adjustments. Efficient installation and commissioning is guaranteed by the factory calibration, a very intuitive operation and commissioning instructions.

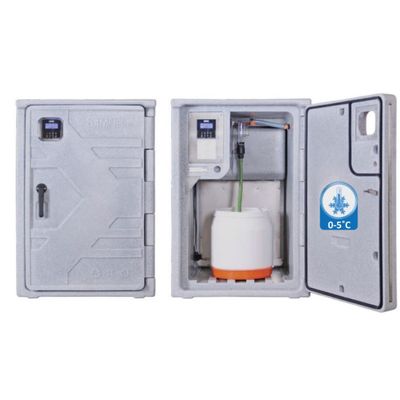

Robust outdoor PE enclosure made with recycled plastic / fully recycable Easy removable cooler / reusable cooler with SS316 evaporator. Future proof cool refrigerant R290a GWP 3 Safety first, ULV hardware 2AVDC User & maintenance friendly.

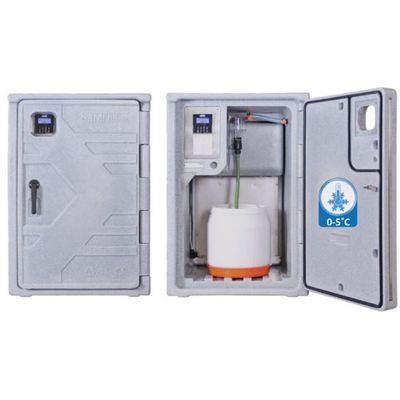

Robust outdoor PE enclosure made with recycled plastic / fully recycable Easy removable cooler / reusable cooler with SS316 evaporator. Future proof cool refrigerant R290a GWP 3 Safety first, ULV hardware 2AVDC User & maintenance friendly.
