The UVR16x2 device provides numerous control options for heating and building management through more than 40 different function modules that can be combined as required . Linking up to 128 functions leaves the programmer with virtually no limits. A 4.3“ touch display serves as user interface. A graphical overview of the important control parameters can be defined for convenient system operation.

The UVR610 freely programmable controller has the same technology as the UVR16x2 controller. The controller is programmed using the TAPPS2 software. All the function modules of the UVR16x2 controller are available in a maximum program configuration of 44 functions. Data transfer via Micro SD-Card or CAN-Bus.

The CAN-MTx2 with its 4.3” touch display is an operating unit for CAN bus networks. The software TA-Designer can be used to create a personalized graphical interface with up to 160 pages, transferable to the device via SD card. Individual pages can be locked for certain users (basic User, Technician). Devices of the x2 series can send messages to the CAN monitor, which will display them accordingly. Additionally, the CAN-MTx2 allows for full access to other controllers in the network. The concept of operation is the same as with the controller UVR16x2 and features internal sensory equipment for room temperature, humidity and ambient air pressure.

The module processes PT1000 temperature values and digital signals, and outputs them to corresponding indices on the DL bus. Due to the low transfer rates, the DL bus is not suitable for switching light.

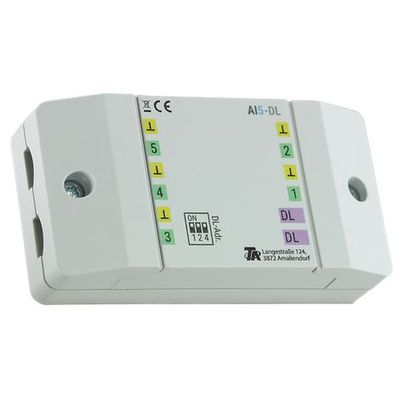

The module enables an additional 5 analogue inputs (0-10V) for devices with x2 technology. DL bus load: 11%
