Technomax Enterprises (I) Pvt. Ltd products

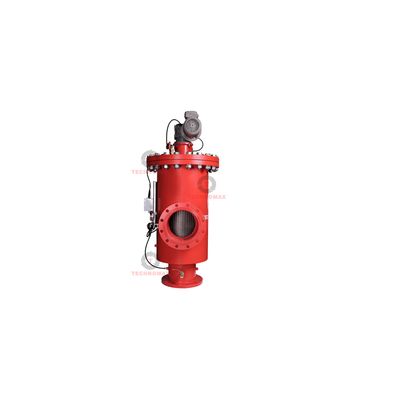

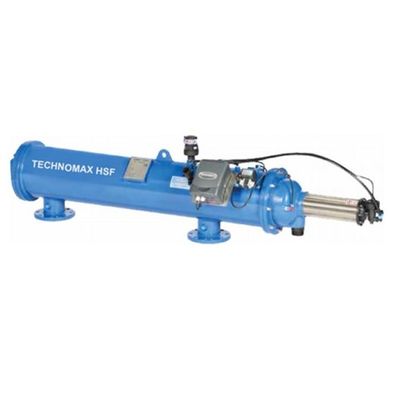

Automatic self-cleaning filters for high loads of suspended solids and heavy duty applications. Flow rates : 3 up to 1800 m /h (8000 US gpm). Filtration degrees : 800-10 micron. Water for cleaning : less than 1% of the total flow. Minimum operating pressure : 2 bar (30 psi).

Automatic self-cleaning filters for high loads of suspended solids and heavy duty applications. Flow rates : 3 up to 1800 m /h (8000 US gpm). Filtration degrees : 3500-200 micron. Water for cleaning : less than 1% of the total flow. Minimum operating pressure : 2 bar (30 psi).

The Filtration Process: Hydraulic Self-cleaning with filters with no requirement of external source of power. The filtration process begins when raw water flows through the filter inlet into the coarse screen which pre-filters the water to protect the cleaning mechanism from large debris. The water then passes through the inner surface of the fine screen where dirt particles are trapped and accumulate inside the filter, while clean water flows through the filter outlet. The gradual buildup of dirt on the inner screen surface causes a filter cake to develop which causes an increase in the pressure differential across the screen.

Technomax’s distinctively developed disc filtration technology operates using thin, color coded polypropylene discs of a specific micron rating. The discs are diagonally grooved on both sides, in opposite directions. A series of discs are stacked and compressed on a specially designed spine. The stacked discs are enclosed in a corrosion proof and pressure resistant housing. The grooves of any two adjacent discs, pressed together, create a series of crossing points which form multiple particle traps. In the filtration process, the force of the spring along with the differential pressure firmly compresses these discs together providing exceptional filtration effciency. Filtration occurs as water percolates from the outer diameter to the inner diameter of the filter element. Depending on the micron rating, there are multiple crossing points in each track, creating distinctive in-depth filtration.

Key Points: AFM will double the performance of any sand filter. 97% Filtration down to 4 microns with no flocculation (Grade 1). Nominal filtration down to 0.1 microns with flocculation. No bio-instability or transient worm-hole channeling of unfiltered water into the product water. Barrier to Cryptosporidium oocysts. Return in capital out of revenue, usually less than 2 years. Direct Replacement for sand and lasts for 20+ years. Reduces operating costs by saving on Chemicals, Water and Energy.

ZPM by Dryden Aqua stands for Zeta Potential Mixer. ZPM‘s are static mixers for the injection of products such as APF, ACO or NoPhos and for the cavitation of water. They are manufactured in stainless steel for freshwater and in titanium or plastic for marine applications. The ZPM is flanged into the pipework, the water is made to cavitate and spin at high speed which helps to kill parasites.The ZPM also helps to drop the zeta potential of the water, this causes flocculation of solids and increases the redox oxidation potential at the same time; the water is becoming self sterilizing. The water molecules are pulled apart by the cavitation reactions which creates nano-bubbles. These help disinfecting the water. The greater the pressure differential across a ZPM, the stronger the cavitation reactions. No energy is lost through this reaction as it is returned to the water in the form of heat.

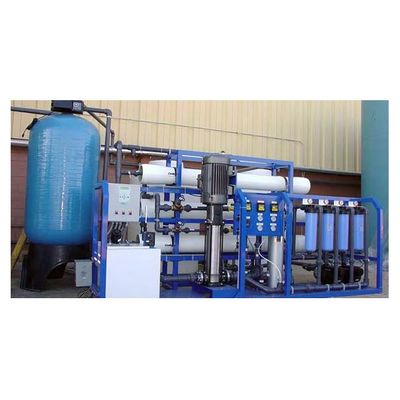

At Technomax, we encourage site visits. For us there`s no better way to quickly see what`s happening at your plant and to begin to determine right away how we can solve your challenges. We are an established player for the manufacturer & suppliers of customised Industrial Water Treatment Plants.  Our product range consists of Pressure Sand Filters, Activated Carbon Filters, Water Softeners, Demineralization Plant and Reverse Osmosis Plant. Our products are highly appreciated due to their application specific design, simple installation, user-friendly operations, maintenance and efficient performance.
