Technosystem Engineering Sp Ltd products

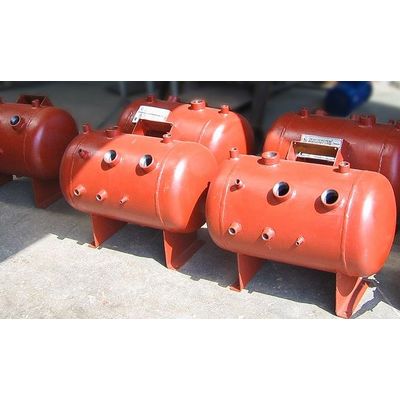

Vertical or horizontal compressed air storage tanks and reservoirs made of carbon or stainless still with a maximum with a capacity between 150l and 160 000l. The maximum working pressure depends on customers specifications and it ranges from 8 bar to 40 bar. The vessels are equipped with drain ports on the bottom to remove condensation and can be supplied with mounting plate to secure motors, pumps and other components.

Cylindrical or rectangular tanks for the storage of liquid derivatives (fuel oil/water), suitable for above ground or underground installations. Their maximum capacity is 50m3 and they are made of carbon steel or stainless steel. The reservoirs are covered with an anticorrosion inner lay and alkydprimer and they offer bituminous waterproofing.

Vertical or horizontal accumulators for hot and cold water storage with a capacity of up to 5000l. They are made of carbon steel or stainless steel, covered with an anticorrosion inner layer and alkydprimer. The accumulators support a maximum working pressure of 10 bar and a maximum temperature of 65C.

Vessels under pressure, for air, vertical, type PHB (RNV), for pressure up to 1.6MPa.

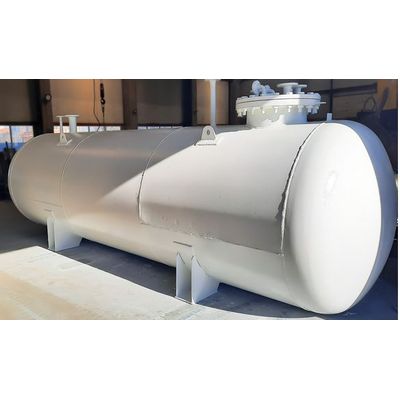

Vessels under pressure for air, horizontal, type PHBX (RNVH). up to 1.6MPa.
