Tecnocom S.p.A. products

Tecnocom makes both shutters with self-reacting moulds and traditional shutters with foundation anchorage for parts with a preloaded stress of 25.000 KN: V beams, hollow bridge girders, bridge girders with a plate, and curved tunnel beams. These parts are used in the construction of viaducts, bridges or high-speed railroads. Tecnocom makes shutters for the manufacture of New Jersey beams and balustrades for viaducts. These parts can be manufactured both in battery moulds and using carrousels if higher production is needed.

For the manufacture of prefabricated 3-D concrete parts e.g., transformer sub-stations, elevator shafts, Prefabricated bathroom, Blocks of complete rooms and Garage, we offer a wide range of shutters with different designs appropriate to the desired degree of automation and available manufacturing space. Both continuously running concrete parts and concrete parts with a roof or floor can be produced. The shutter core is either conical in shape or equipped for hydraulic or mechanical reduction of volumetric capacity. The surface of the steel plate is ultra flat and guarantees a high-quality concrete surface. On request, the moulds can be equipped with various types of heating system.

Battery moulds can be supplied in customized sizes, number of pouring bays and as single or double battery moulds. The number of bulkheads determines the number of bays – variably adjustable to suit the desired production capacity. The steel plate is ultra flat and guarantees high-quality elements with smooth surfaces on both sides.

Tecnocom manufactures a wide range of shutters for the production of staircases and landings from simple shutters and/or double battery shutters for fixed standard staircases, all the way up to flexible shutters for variable staircase sizes and shapes. This product is available both as an all-steel model for especially long lifetime and as a steel / wood model for the greatest degree of flexibility when manufacturing staircases having the most-varied shapes and sizes.

Tecnocom manufactures shutters with self-reacting moulds as well as shutters with foundation anchorage for the production of heavy-duty prestressed ceiling slabs (1,200 kg/m2 and up to 35 meters in length). Omega beams, reverse Omega beams, TT beams, TT beams with lower plate, I beams, double-ribbed elements with hollow tube and flat ceiling. They can be automatically adjusted for different heights, widths, and thicknesses via the hydraulic drive, an operator‘s station, or by remote control.

Tecnocom offers a wide range of solutions for the manufacture of concrete parts for industry and commercial building and construction; from tiltable production lines all the way up to stationary conveyors for the manufacture of wall panels, fixed and variable shutters for supports all the way up to complex multi-purpose shutters for beams in the most varied sizes and shapes.

For the manufacture of prestressed concrete parts, we make both shutters with self-reacting moulds and traditional shutters with foundation anchorage. In the first case, the shutter structure itself can counteract the preload forces, and the customer doesn‘t have to provide for a concrete depression in his plant. Both solutions make use of relaxing cylinders and safety rings. All this equipment can be produced with prestressed values.

Roof trusses for industry and commercial building and construction can have a wide variety of shapes and sizes. Our extensive experience enables us to find the right solution for any situation. Besides shutters with self-reacting moulds and shutters with foundation anchorage, we also make shutters for the production of straight and curved plates, gables, cladding boards, water gutters, and side beams. We thus cover all the requirements of this sector.

Stationary production is usually performed with the following types of formwork: fixed and tilting tables, vertical battery moulds, moulds for elements such as girders, columns, roof coverings both with standard and with pre-stressed made to measure mesh. moulds for 3D elements. Stationary production makes possible extreme flexibility in the production area with low investment, even where production areas are reduced, keeps maintenance costs low and facilitates ease of operation.

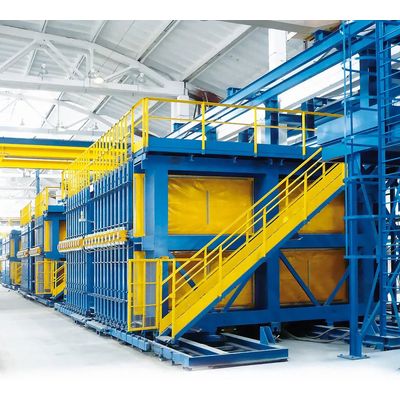

Battery moulds for precast concrete elements offer maximum productivity in minimum space. The battery moulds have been designed for vertical concreting of individual concrete panels and floor elements in various sizes and thicknesses. The system consists of several vertical chambers and can therefore produce various elements simultaneously.
