TEGAM Inc. products

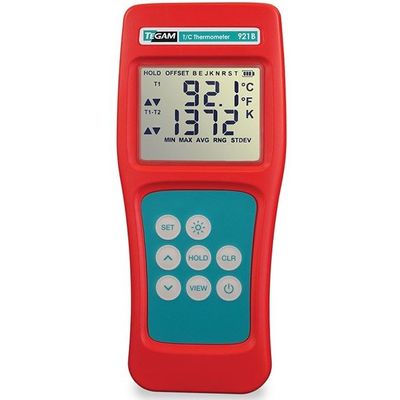

The Model 921B is a single-channel intrinsically safe digital thermometer compatible with type K, J, T,E , N, R, S  or B thermocouple probes to provide a wide range of temperature measurements, (-418 °F to 2502 °F) certified intrinsically safe for use in potentially hazardous environments. The 921B boasts a 2000 hour battery life using three AA batteries.  The 921B provides dependable and uninterrupted portable measurement capability without expensive batteries, AC adapters or chargers.

The Model 932B is a dual-channel, digital datalogging thermometer compatible with type K, J, T, E, B, N, R & S thermocouple probes to enable a wide range of temperature measurements, (-418 °F to 3308 °F) and boasts a 1000-hour battery life using three AA batteries.  The 932B provides dependable and uninterrupted portable measurement capability without expensive batteries, AC adapters or chargers. The easiest data logging function available allows users to accurately record and store up to 1000 time-stamped measurements.  An unlimited number of data points may be collected when used with a Bluetooth® version 4.0 compatible wireless phone, tablet or PC either locally or on the freely accessible cloud server running TEGAM Thermometer Link for Android or for Apple iOS.

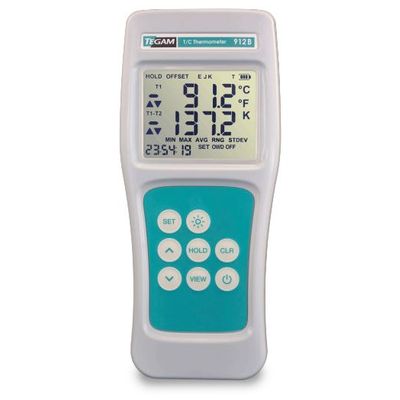

The Model 912B is a dual channel digital thermocouple thermometer compatible with type K, J, T or E thermocouple probes to provide a wide range of temperature measurements, (-418 °F to 2502 °F) and boasts a 2000 hour battery life using three AA batteries.  The 912B provides dependable and uninterrupted portable measurement capability without expensive batteries, AC adapters or chargers.

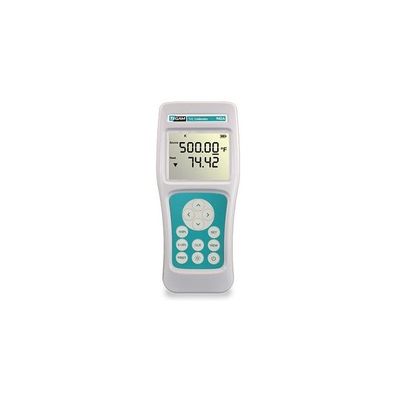

New challenges require new tools. TEGAM has rethought thermocouple calibration to offer you the performance you need today without complicating your work. The new 940 Series handheld thermocouple temperature calibrators provide laboratory-grade temperature calibrations in a highly portable package that goes to the work site with ease. Industries that measure temperature are being pushed to achieve better results for both quality and product safety. TEGAM has responded by designing a temperature calibrator that leads its class in terms of accuracy, battery life, convenience and ease of use.

Model 869 Digital RTD Thermometer measures temperatures from -220 to 630 °C. Compatible with either 3 or 4 wire RTDs, temperature measurement is performed with a best accuracy of ± 0.3 °C. This thermometer is specially constructed with a heavy duty ABS case specifically designed for industrial use. Model 869 reads in °C. An optional tilt stand/belt clip, Part Number 8660, is available for field or bench top use.

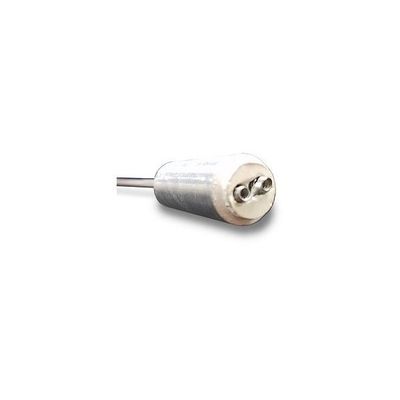

Type T Thermocouple Temperature Probe. For fast response temperature measurement on all types of surfaces. Sheaths are 6″ in length and are constructed with 304 stainless steel. The thermal junction is actually mounted on a 1/4″ diameter tip and makes direct contact with the surface being measured. 3-ft coil cord. This thermocouple temperature probe is for use as part of the 921B or 922B Intrinsically Safe System.

Intrinsically Safe, Factory Tough, Lab Accurate, ATEX-Compliant. Everything customers need in the 911B but the 921B thermocouple thermometer is also UL, CE and ATEX-compliant intrinsically safe for potentially hazardous applications.

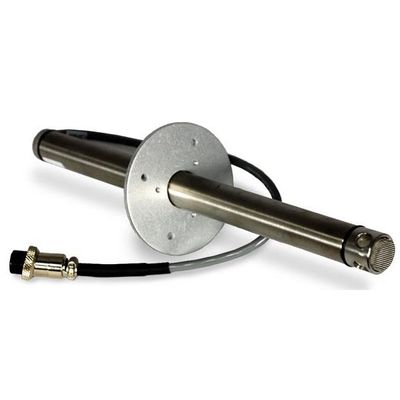

Stainless Steel Duct - 4-20 mA. TEGAM’s Humitran duct probes provide a reliable, accurate, and low cost method for monitoring relative humidity plus temperature. Solid state sensors supply excellent sensitivity, fast response and long term stability. Simple hook up and linearized output permit interfacing with most display or control devices.
Model RDP-20C outputs a 4 mA to 20 mA current loop for long virtually unlimited cable distances.

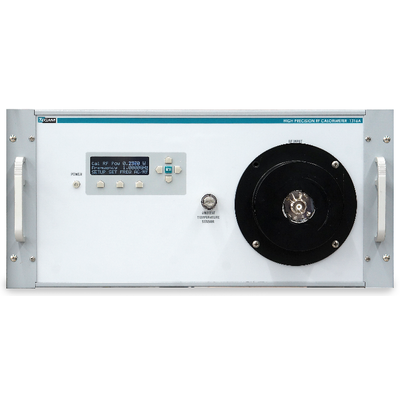

The TEGAM model 1316 is a precision calorimeter that is capable of providing highly accurate RF power measurements up to 10,000 W in the 50 Hz to 500 MHz frequency range. The TEGAM 1316 combines a calorimeter and chillers which can precisely measure input power in the form of RF energy known as a calorie. A calorie is defined as the amount of energy in the form of heat to raise the temperature of a certain mass of liquid by a given amount. By accurately measuring temperature and mass we can determine the amount of heat and therefore, the amount of energy applied to the liquid. The TEGAM 1316 accurately measures both the temperature rise and the mass of the liquid.
