Tekon products

TT11 are produced as stationary arm with bushing M12x1,5 threaded. Top side is fixed with springs to the process. As standard  L=30mm, D=6mm, but when requested different length can be produced. Cable type and length should be indicated when order.

Portable thermocouples are commonly used in different types of processes to measure surface temperature and environment temperature. Portable thermocouples are generally produced as stationary armed. Wire length should be indicated when placing an order.

They are ptefeted in basic processes.Produced as stationary armed and assembly onto system with a compressed spring. Sensor probe (works as a sensor) has no leakage approve. Because of that its not advisable to use on humid and liquid applicaitons. Generally thet are used in metal blocks which has holes by touching the surface. Standard is M12 x 1,5 thread.

They are used in surface temperature .ambiente temperature and many other measurement applications. Generally . they are producted as stationary armed. Cable type and length should be indicated when ordering.

Its used between thermocouple and the device. Thermocouple cables specifications are compitable for thermocouple wires. Because of that for Fe-Const thermocouple , Fe-Const cable and for NiCr-Ni thermocouple, NiCr-Ni cable should be used.

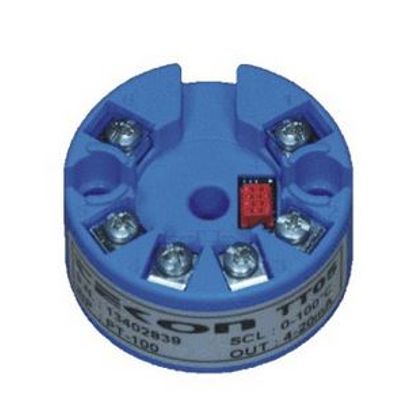

Wide Range Power Supply (8...36VDC). Wide Range Working Temperature (•40...+85°C). 16 Bit Input Resolution. 100 ms Sampling Period. High Output Accuracy. Compatible for DIN43729 Form B Sensor head. Protected for Cross Connection. Free Configuration Software (CoNiOl). USB Configuration Without Power Supply. Selectional Input Types (PT100 and Thermocouple types). Adjustable Temperature Range. 4-20mA or 20-4mA Optional Output. Selectional Sensor- Error Level. Adjustable Response Time (0,2 ...120s). 3 Years Warranty for Manufacturing Errors.

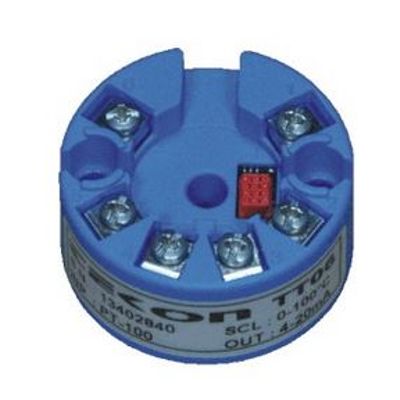

Wide Range Power Supply (10...36VDC). Wide Range Working Temperature (•40...+85°C). 16 Bit Input Resolution. 100 ms Sampling Period. High Output Accuracy. Compatible for DIN43729 Form B Sensor head. 1500V Galvanic Isolation. Protected for Cross Connection. Free Configuration Software (CoNiOl). USB Configuration Without Power Supply. Selectional Input Types (PT100 and Thermocouple types ). Adjustable Temperature Range. 4-20mA or 20-4mA Optional Output. Selectional Sensor- Error Level. Adjustable Response Time (0,2 ...120s). 3 Years Warranty for Manufacturing Errors.

Wide Range Power Supply  (8...36VDC). Wide Range Working Temperature (•40...+85°C). 16 Bit Input Resolution. 100 ms Sampling Period. High Output Accuracy. Compatible for DIN43729 Form B Sensor head. Protected for Cross Connection. Free Configuration Software (CoNiOl). USB Configuration Without Power Supply. Selectional Level Range. 4-20mA or 20-4mA Optional Output. Selectional Sensor- Error Level. Adjustable Response Time (0,2 ...120s). 3 Years Warranty for Manufacturing Errors.

Wide Range Power Supply (10...36VDC). Wide Range Working Temperature (•40...+85°C). 16 Bit Input Resolution. 100 ms Sampling Period. High Output Accuracy. Compatible for DIN43729 Form B Sensor head. 1500V Galvanic Isolation. Protected for Cross Connection. Free Configuration Software (CoNiOl). USB Configuration Without Power Supply. Selectional Level Range. 4-20mA or 20-4mA Optional Output. Selectional Sensor- Error Level. Adjustable Response Time (0,2 ...120s). 3 Years Warranty for Manufacturing Errors.

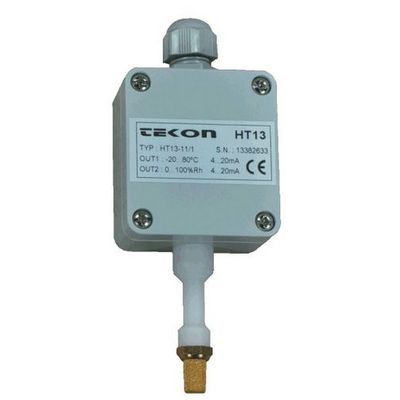

Replaceable Sensor. Replaceable Sensor Filter. Calibrated Single Chip Temp + Humidity Sensor. Approved Capacitive Sensor Technology. Sensor Heating Function. 2 Analog Output for Temperature and Humidity. 2 Separated Analog Output for Temperature and Humidity Wide Range Power Supply (16...36VDC). Wide Range Working Temperature (-20°C...+80°C). High Output Accuracy. Low Thermal Drift on Output. Long Stability Duration. IP65 Protection Class (Except Sensor). Small and Convenient Design. Excellent Price/Performance Relation. 3 Years Warranty for Manufacturing Errors.
