Teledyne Gas and Flame Detection products

Bringing together the latest data logger and alarm unit for gas and flame detection systems, the MX 62 TP features an innovative HMI interface specifically designed to facilitate user-controller interactions. This interaction is simplified by a large, fully interactive 10" (up to 15") high-definition colour touchscreen, allowing for clearer visualisation of critical gas detection data.

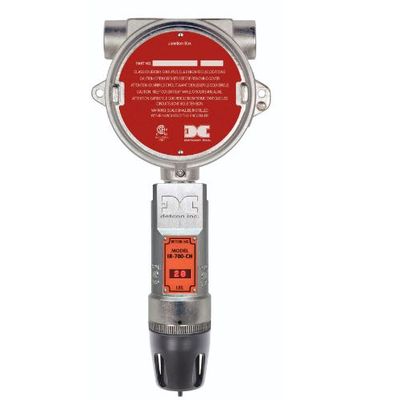

Model IR-700-CH is a non-inirusive "Smart" sensor designed to detect and monitor combustible hydrocarbon gases in air over the range of 0-100% LEL using miniature non-dispersive Infrared Optical (NDIR) sensor technology. As compared to catalytic bead sensors, with NDIR there is no risk of sensor poisoning, no risk of high concentration saturation, and no need for 02 to be present. The plug-in, field replaceable detector features over-sized gold-plated connections that help prevent corrosion.

Model FP-700 is a non-intrusive "Smart" sensor designed to detect and monitor combustible gases in air over the range of 0-100% LEL using catalytic bead sensor technology. The plug-in, field replaceable detector is poison-resistant and features over-sized gold-plated connections that help prevent corrosion. The FP-700`s rugged framework includes an electro-polished 316 stainless steel housing with fully encapsulated electronics and dual layer surge protection. This innovative design virtually eliminates sensor failure due to water ingress, corrosion, vibration, and transient spikes.

Model 700 Series Sensors are a non-intrusive "Smart" sensors designed to detect and monitor oxygen and Toxic Gases in air using electrochemical sensor technology.

Whether you are building a new facility or updating an existing one, there are a myriad of safety decisions to make. One decision, however, is now crystal clear. To best protect your workplace and employees, choose the 7800 Controller. Five simple function buttons make configuration and setup of the 7800 Controller easy and intuitive. Built-in programming flexibility allows you the ability to configure the controller to the needs of a wide variety of applications. Moreover, alarm LEDs indicate three levels of alarm status for every channel monitored.

The MX 16 is a compact digital or analog controller, one input, low-profile controller that continuously monitors gas detection, like: O2, CO2, CH4, H2, LPG. Specially designed for applications in laboratory, storage, small boiler room, and breweries or battery charging rooms, the MX 16 measuring unit prevents the risks of explosion linked to the presence of toxic, anoxic and explosive gases in the ambiant air. Small size, ease of installation and use are the main strengths of the plant. Used with the OLCT 10N O2 and CO2 digital sensor series or any other O2, CO2, CH4, GPL and H2 analog sensor, the MX 16 guarantees you a solution that complies with French and European standards.

The MX 256 is a digital control unit intended for the detection and measurement of gases present in the atmosphere and more generally for the processing of any digital signal from digital sensors (OLCT 10N types), relay module, analog output module, logic input module. Thanks to its new option, an industrial controller module or remote HMI, it is possible to add analog input modules for sensor-transmitter connection (4-20 mA) and / or relay modules, this allows to not only extend the capacities but also to have event recordings (Location, Alarms,.....) and to have access to the data via the embedded web page.

The CPS car park air monitor accurately and reliably protects the public and employees from airborne toxic gases in parking facilities and tunnels. The system was designed to comply with the high air quality safety standards enforced in such European countries as Germany, the Netherlands and Belgium.

Teledyne Gas and Flame Detection has designed the SURVEYOR 4B as a monitoring apparatus specifically designed to ensure the safety of boiler plants, battery charging rooms or small units where your operations are at risk due to the possibility of flammable gas leaks. Developed for quick, safe detection, the SURVEYOR 4B control module combines highly reliable monitoring, simple implementation and low costs.

We introduce the new MX 32, a controller that takes analog & digital inputs and covers all needs for a wide variety of applications. The MX 32 is a compact, low-profile controller that continuously monitors gas detection and more generally any 4-20 mA, MODBUS RS485 signal from compatible detectors.
