Teledyne Valeport Ltd. products

The MIDAS CTD (previously known as the Model 606) is Valeport`s premier CTD Profiler. High accuracy sensors (including ±0.01% pressure) and robust titanium design allow reliable operation to 6000m depth, under the harshest conditions. It also features truly synchronised sampling to ensure that all sensors are sampled at exactly the same point during a profile. Primarily for use as a self recording profiler, the MIDAS CTD also has a range of communications options for real time use, and the low power consumption and large memory also make it suitable for longer term deployments.

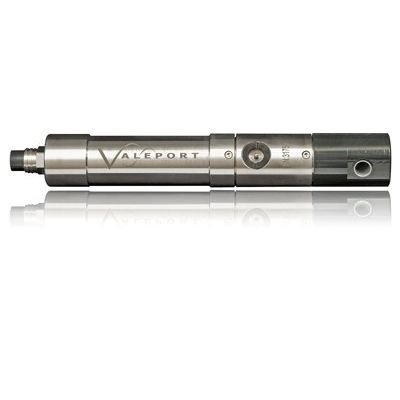

The miniCT probe is Valeport latest direct reading Conductivity and Temperature sensor, featuring digital sampling techniques for improved performance, and high strength construction methods to ensure consistent performance and stability under extreme pressure. 500m acetal and 6000m titanium versions available, both with RS232 or addressable RS485 data outputs as standard.

The MIDAS CTD+ is a revolutionary Multiparameter CTD, with a wide choice of standard sensors. Featuring Valeport`s latest 400 Series electronics, the CTD+ will sample all fitted sensors at exactly the same instant, at up to 8Hz. Advanced setup software allows a variety of sampling regimes including burst modes, delay starts, and conditional sampling. With up to 64Mbyte memory and internal battery pack, as well as a selection of real time output formats, the CTD+ is perfect for both profiling or fixed mooring applications. In addition, the CTD+ may be used with Valeport own water bottle carousel.

The MONITOR CTD+ utilises the same accurate, robust sensors and synchronised sampling techniques as the MIDAS range, but packaged as a smaller, lightweight unit to suit small boat or shallow water applications. The addition of a an extra sensor makes the MONITOR CTD+ a versatile and cost effective tool for gathering profiles of CTD and one other parameter of either Turbidity, Dissolved Oxygen or Chorophyll.

Based on the leading MIDAS CTD Profiler, the Monitor CTD offers excellent performance but in a smaller, lightweight package for shallow water applications. With internal battery pack and large memory, the Monitor CTD is suitable for both self recording operations down to 500m depth, and real time use with a choice of data output protocols.
