Tezel Isıtma Soğutma Havalandırma Ltd. Şti. products

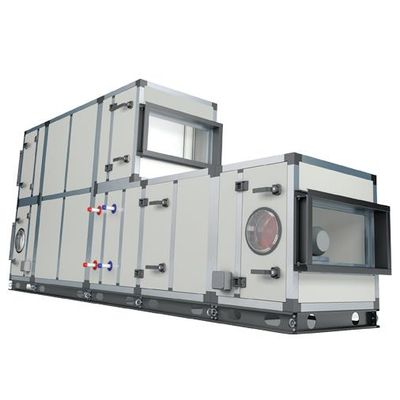

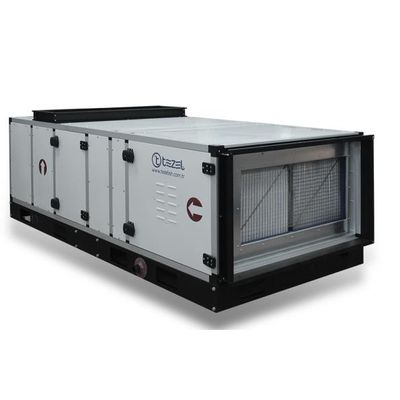

The air handling units, which are designed as modular, are produced in the range of 1.000 m3/h – 125.000 m3/h, by using the panels at 40 mm thickness with stone wool isolation in the double walled construction. The TEZEL Air Conditioning Units are used for air conditioning in the residences, work places and industrial facilities.

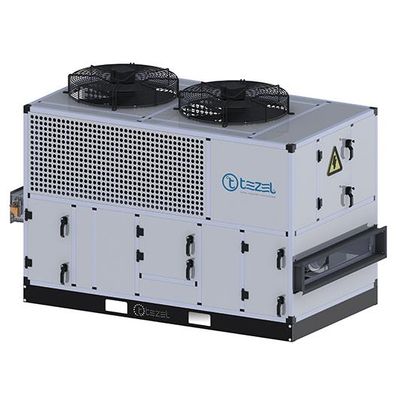

Rooftop, Air Handling Units and condensing equipment in a single structure, the cooling or heating cycle takes place in the same unit is a compact and unified air conditioning.

Moisture and condensing water released in indoor pools cause serious structural damage to buildings, but also shortens the life of the building. High capacity pool dehumidification plants designed by TEZEL engineers provide all comfort conditions and guarantee to extend the structural life of the building. 2.500 m3/h – 25.000 m3/h flow rate range from 20 kg/h dehumidification value up to 160 kg / h dehumidification capacity is produced.

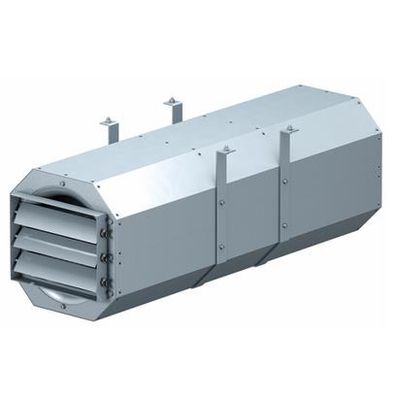

The TDEF series axial fans are developed for ventilation without using any air channels in places such as the parking garages and tunnels. The TEZEL Jet Fans manufactured in line with the EN 12101-3 standards as five series of TDEF315, TDEF400, TDEF450, TDEF560 and TDEF630 provide air volume at the range of 4.750 m3/h – 36.000 m3/h. The wings that are highly productive, aluminum casting and have adjustable angles are used for our jet fans. There are Unilateral or Reversible types. The TDEF series axial jet fans are designed by the TEZEL engineers in order to create hot smoke exhaust without any interruptions in cases of fire. The engines having the F200/2h, F300/2h, F400/2h fire resistance category and certified with CE and EN are used.

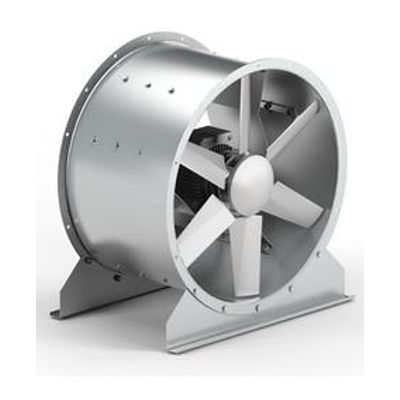

Our axial type smoke exhaust fans offer different diameter alternatives in the range of 0315mm-125Omm. Our devices are CE branded and tested and approved in accordance with en12101-3 standards in an internationally accredited institution. According to customer demands, 200°C, 300°C, 400°C temperatures, 30min, 1 hour, 2 hour strength, double or single speed motor can be designed and produced.

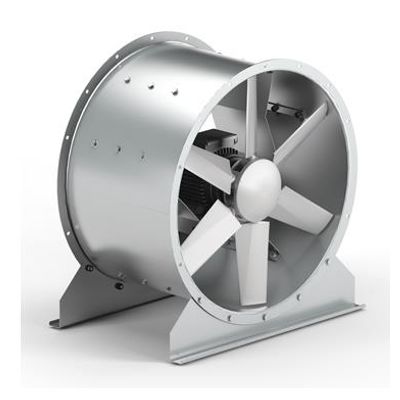

Tezel axial sleeve fresh air Fan series mak. Suitable for operation at 60 °C. With a diameter range of 355 mm – 1250 mm, the series ‘ adjustable wing angle offers a wide range of performance while also providing the desired flow rate precisely. The performance of the axial Hive fresh air fans has been tested in accordance with the AMCA 210-07 standard. Although it is used to provide fresh air to smoke evacuated areas and to pressurize stair hives, it provides the best solution for your basic ventilation needs. Simple exhaust and fresh air meet your needs.

Our kitchen exhaust fans with electrostatic filter are manufactured in accordance with TSE 60335-1 and TSE 60335-2-80 standards as THMF-E50, THMF-E75, THMF-E100, THMF-E150, THMF-E225, in capacity ranges of 5000-22500 m3/h.

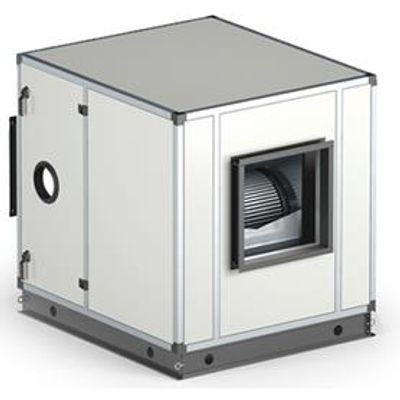

Our cell fans are produced in line with TSE 60335-1 and TSE 60335-2-80 standards in the range of 1000-90000 m3/h. 1000m3/h – NICOTRA or S&P brand fans with high efficiency and low volume are used for our fans which provide air flow in the range of 90.000m3 / h. It is designed by TEZEL engineers to meet the ventilation needs of industrial, residential and commercial areas such as shopping centers, hotels, commercial establishments, factories, restaurants, sports and training facilities. Our fans, which are offered to our customers by performing flow rate, pressure, decibel and warm-up tests in our laboratories, offer excellent solutions.
