The Detection Group, Inc. products

Part Number: DT-501, Dimensions: 5.3"L x 4.7"H x 1.6"W, Power Supply Output: 5 Volts, 2.5 Amps, Power Supply Input: 100-240 VAC, 47–63 HZ, 0.8 Amp Max, Operating Temperature: 50º – 122º F (10º – 50º C), Battery Backup: 3.7 Volt LiPo (Lithium Polymer) Rechargeable Battery, Battery Operation: Up to 5 Days, Operating Frequency: RF (sub -1000 MHz), Health Reporting Frequency: Every 5 minutes, Mounting Hardware and Methods: Screw Mounted, 3 x 0.2" size screw holes, Adhesive Backed Hook-N-Loop or screw mounted (zinc-plated steel), Sensors per Hub: 100 Sensors or 20 valve controller & critical sensors (FM approved)*, Certifications: FM Approved, UL Listed (adapter), FCC #2AK4V-DT-501.

Part Number: DT-502, Dimensions: 3.7"L x 3.6"H x 1.3"W, Power Supply: 2 CR123 Lithium Ion Batteries, Operating Temperature: 32º – 122º F (10º – 50º C), Battery Life Expectancy: >5 Years Standard, 1 Year Critical, Operating Frequency: RF (sub-1000 MHz), Communication Range: 300 feet maximum, obstructed, Sensing Frequency: Every 15 seconds, Health Reporting Frequency: Every 60 minutes, Critical Sensor Health Reporting Frequency*: Every 5 minutes, Mounting Method: 1" x 2" Strip Velcro Adhesive Backed Hook-N-Loop, Pre-Alarm Delay: Customizable (15 seconds standard), Certifications: FM Approved, FCC #2AK4V-DT-502, IC #22517, IP54.

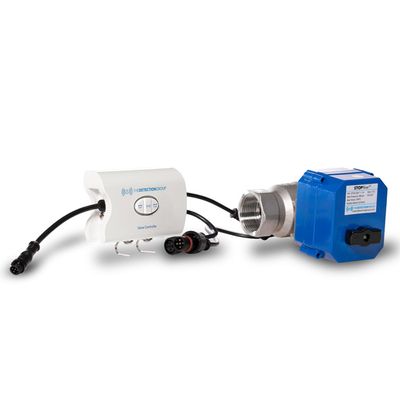

Part Number: DT-503, Dimensions: 4.78"L x 3.54"H x 1.39"W, Size of Valves Controlled: Up to 2" Diameter, Maximum Number of Valves per Controller: 2, Power Supply Output: 5 Volts 4 Amps, Power Supply Input: 100–240 VAC, 50–60 HZ, Operating Temperature: 50º – 122º F (10º – 50º C), Battery Backup: 2 CR123 Lithium Batteries, Battery Operation: Up to 48 hours, Operating Frequency: RF (sub -1000 MHz), Mounting Methods: 1" x 2" Strip Velcro Adhesive Backed Hook-N-Loop, Valve Controllers per Hub: 20 Max, Certifications: FCC #2AK4V-DT-503, IC# 22517, IP54.

Reliable - The valve automatically cycles every 30 days, ensuring it will close dependably when it’s needed Flexible Installation - Runs on plug power or battery, so you choose. Install it anywhere. Battery life is at least two years. Code-Compliant - Certified to be potable water compliant Corrosion Resistant - Made of high-grade 304 stainless steel that will not degrade over time. Commercial-Grade - Available for pipe sizes up to 2-inch diameter. Can control two valves of different sizes. Suitable for rugged commercial applications.
