The Veeder-Root Company products

With user-friendly navigation, streamlined inventory and compliance reporting, and powerful business analytics, the TLS-450PLUS Automatic Tank Gauge (ATG) is a fuel management tool that allows you to run fueling operations at peak efficiency. And, with frequent releases of operating software for the TLS-450PLUS tank gauge you can be assured that data is secure and software features are routinely updated and enhanced.

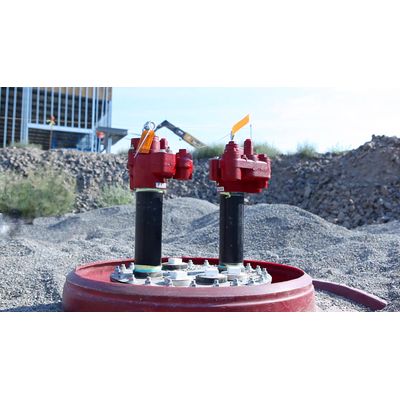

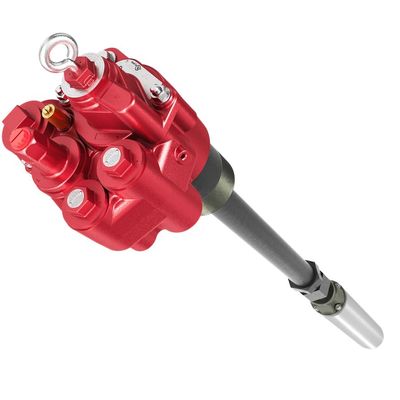

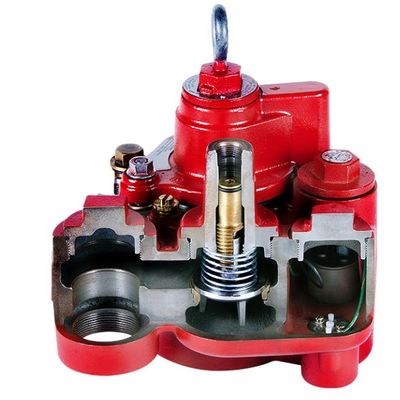

The Red Jacket Submersible Turbine Pump (STP) platform delivers faster, more reliable fuel flow for the lowest cost of ownership. With a motor that delivers higher flow rates than any other motor in the industry, The Red Jacket STPs optimize fuel flow to your dispensers. It features Red Jacket’s advanced packer manifold design, making it the fueling industry’s easiest and safest submersible pump to install and service.

The Red Jacket 4 HP Submersible Turbine Pump (STP) rounds out the 4” Veeder-Root STP portfolio, offering high throughput, high reliability, and reduced power consumption. The best in-class fixed speed technology services up to 7 simultaneous fuel transactions at the required 10 Gallons Per Minute (GPM) per nozzle. With an automatic electrical disconnection mechanism, disruptions are minimized to site operations making servicing safe, quick, and efficient to ensure site uptime.

The Red Jacket 2+2 HP Fixed Speed Solution Increases Flow Performance. When paired with Red Jacket IQ Control Boxes, a 2+2 HP manifolded system turns on the secondary Submersible Turbine Pump (STP) if the primary STP becomes unable to pump fuel

The EMR4 ensures there is an accurate record of all delivery data and reduces loss due to antiquated and manual processes. The EMR4 is designed to be installed or integrated with any meter as a custody transfer approved electronic meter register for mobile and stationary bulk fueling. The EMR4 system is comprised of two separate components: The Register Head, and the IB Box. These core components, along with a series of accessories, allow the user to configure a system that meets their specific needs on the delivery vehicle, loading rack, or other liquid dispensing application.

The EMR4 Meter-Mounted Display Head is for installation on top of the meter. The housing is the exact same footprint as both a mechanical register and its EMR3 Meter-Mounted Display Head predecessor. The display head has an ultra-bright WHITE LED backlight to easily see the screen and is built to withstand extreme heat and constant sunlight as well as exposure to harsh and abrasive chemicals. It is UL/cUL, ATEX, and IECEx approved. Part numbers for French and Spanish versions are also available.

The EMR4 Panel-Mounted Display Head (also referred to as the Remote Display Head) allows for customizability and flexibility in both mobile and stationary installation applications. It is for installation with an external pulser and when it will be panel mounted or when being used as a repeater display and installed on a lift deck, in the cab of a truck, in an office, or any other remote location. The display head has an ultra-bright WHITE LED backlight to easily see the screen and is built to withstand extreme heat and constant sunlight as well as exposure to harsh and abrasive chemicals. It is UL/cUL, ATEX, and IECEx approved. Part numbers for French and Spanish versions are also available.
