Thermal Care, Inc. products

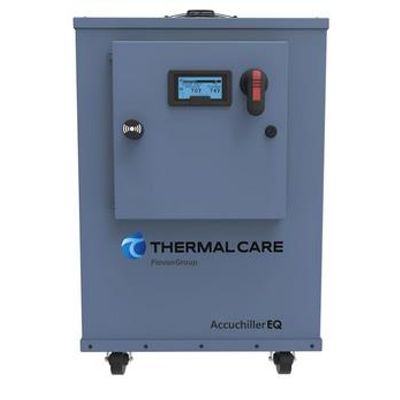

Accuchiller EQ Series Portable Industrial Chillers feature nonferrous construction, a compact footprint with easily accessible interior and a microprocessor that provides precise temperature control and extensive diagnostics. Air-cooled, water-cooled and remote condenser models are packed with many standard innovative features that improve chiller performance and reliability.

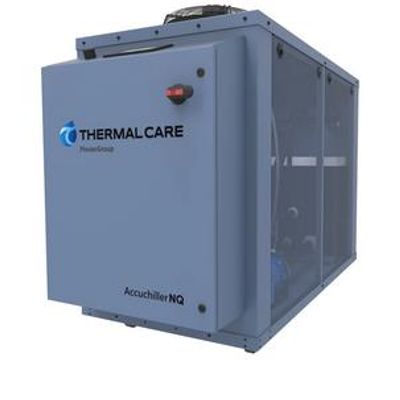

NQ Series portable chillers use components such as R410A refrigerant, scroll compressors, micro-channel condensers, low noise fans, stainless steel brazed plate evaporators, and sophisticated controls provide the best available technologies for the ultimate performance and reliability in a chiller package.

Thermal Care is at the leading edge of process cooling technology. TC Series centrifugal compressor industrial central chillers use revolutionary, frictionless, magnetic bearing Turbocor compressors to deliver optimum chiller performance and part load efficiencies. This translates into the quietest, most reliable, and most energy efficient chillers ever built. Models are available with either single or completely independent dual refrigeration circuits.

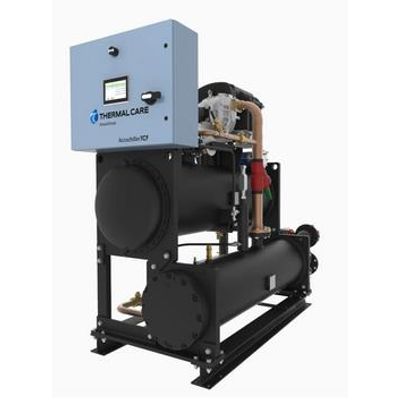

Thermal Care has expanded its line of industrial TCF central chillers to include the TCFW375 ice rink chillers. TCF central chillers combine the efficiencies of both a hybrid film evaporator and a Turbocor variable speed centrifugal compressor to deliver optimum full and part load efficiencies. The result is one of the most energy efficient central chillers ever built.

The compact size of the TSE industrial central chiller minimizes floor space; while its modular design allows up to 12 refrigeration circuits to be combined into a single system for over 1,000 tons (3,517 kW) of cooling capacity. The chiller`s innovative high flow design assures consistent process leaving water temperatures from 20°F to 80°F (-7°C to 27°C) and as low as 5°F (3°C) differential across the process.

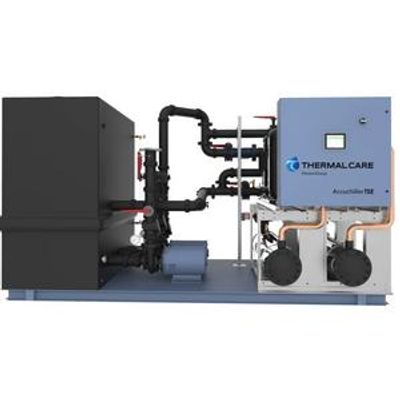

Accuchiller TSE Series central chiller with tank integrates a chiller with a complete process pumping system and reservoir in one package to minimize floor space. Units come fully assembled and wired, ready for quick and simple installation and include an insulated integral tank and pumping system mounted on the same frame.

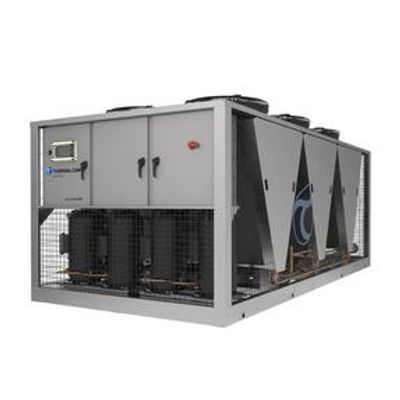

KSE Series industrial outdoor air-cooled chillers with integral tank feature a compact, all-in-one package designed to minimize installation cost, maximize usable space and lower electric bills. Designed for harsh outdoor environments KSE Series chillers require no options to operate within the standard -20°F to 125°F (-29°C to 52°C) ambient environment conditions. Standard process fluid temperatures of 20°F to 80°F (-7°C to 27°C) are ideal for industrial applications. The modular design allows up to 12 refrigeration circuits to be combined into a single system for up to 720 tons (2,532 kW) of cooling capacity.

KSE Series industrial outdoor air-cooled chillers feature a compact, all-in-one package designed to minimize installation cost, maximize usable space and lower electric bills. Designed for harsh outdoor environments KSE Series chillers require no options to operate within the standard -20°F to 125°F (-29°C to 52°C) ambient environment conditions. Standard process fluid temperatures of 20°F to 80°F (-7°C to 27°C) are ideal for industrial applications. The modular design allows up to 12 refrigeration circuits to be combined into a single system for up to 720 tons (2,532 kW) of cooling capacity.

These lightweight fiberglass cooling towers are designed for long life and low maintenance at a competitive price. FT Series towers are of a counter flow design, carefully engineered with the optimum combination of heat transfer media, uniform air flow and even water distribution. They provide maximum air/water contact and low air pressure drop to assure efficient heat transfer while minimizing power requirements to save on operating costs.
