Thermocouple Technology, LLC (TTEC) products

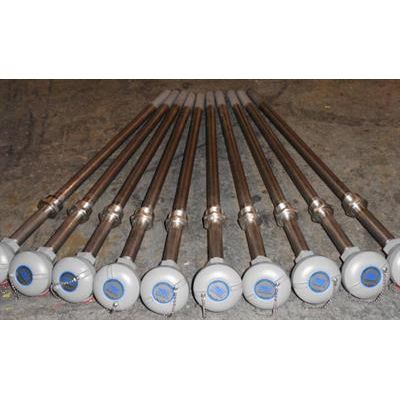

These assemblies feature straight, rugged metallic protection tubes in a variety of materials including 304SS, 316SS, 310SS, 446SS, Inconel, and HR160. The protection tube materials are selected to provide resistance to temperature and corrosion. Base metal (Types J, K, T, E) beaded ceramic insulated elements are standard for these cost effective yet durable assemblies.

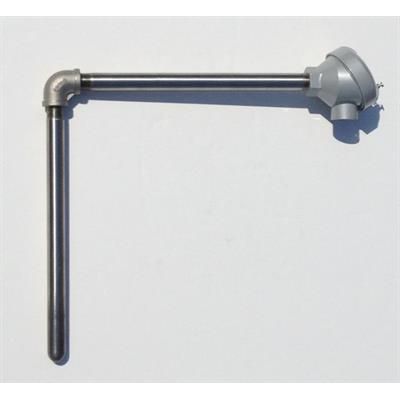

These rugged TTEC Assemblies feature a 90º configuration ideal for “bath or pot" type applications where mounting is over the side. Selectable tube materials & element wire gauge allow customers to select the assembly best suited for the application.

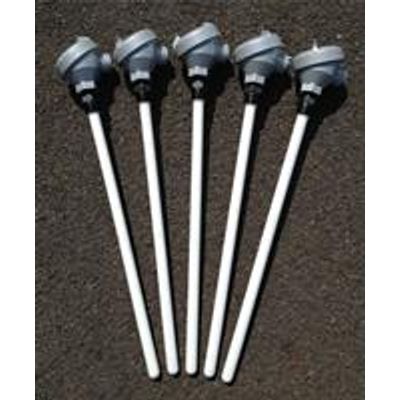

TTEC Series 3000 High Temperature Thermocouple Assemblies utilize ceramic protection tubes with noble metal (types S, R, B) elements. Double & triple tube designs are available for protection against thermal & mechanical shock. Protection tube materials include Mullite, High Purity Alumina & Recrystallized Silicon Carbide for custom multi tube assemblies. These units provide optimum performance at temperatures ranging from 2000ºF to 3100ºF.Type K, 8 gauge elements are also available for measurements to 2300ºF.

Ceramic insulated Thermocouple Elements. Base, Noble & Refractory Metal Calibration Types. Replacement Elements for the Series 2000 & 3000 Thermocouple Assemblies. Easily removed & replaced. Variety of wire gauge sizes & insulators.
