Thermometrics Corporation products

Thermocouple assembly, types E, J, K, N & T with general purpose conduit head and metal sheath with mounting threads.

Universal design allows for quick Thermocouple or RTD installation into existing twist-lock adapters.

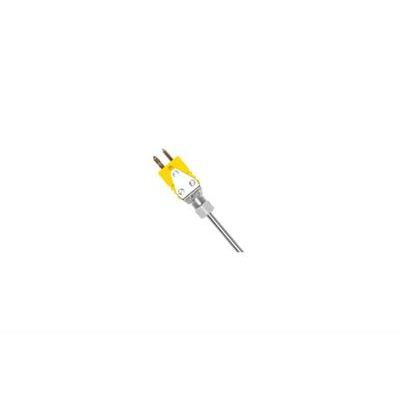

Accurate thermocouple types E, J, K, N & T with standard size connectors attached with metal sheaths (sizes from 1/16 inch to 1/4 inch diameter).

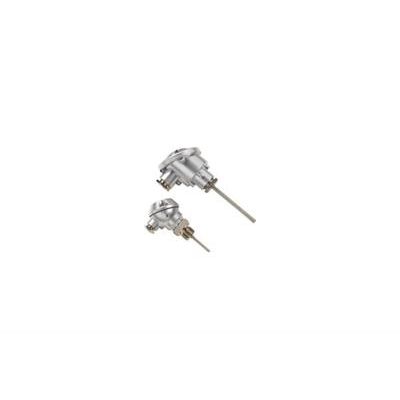

Protection Head Probes are typically utilized in an industrial environment to help protect the probe from harsh conditions. Omega offers protection heads made from stainless steel, aluminium, galvanized cast iron, and glass filled plastic. The head is mated to a thermocouple probe which typically incorporates a threaded NPT fitment (fixed or spring loaded) as well as termination block for lead wire connection. A ceramic or metal thermowell can also be utilized to offer greater protection for the sensor portion of the assembly.

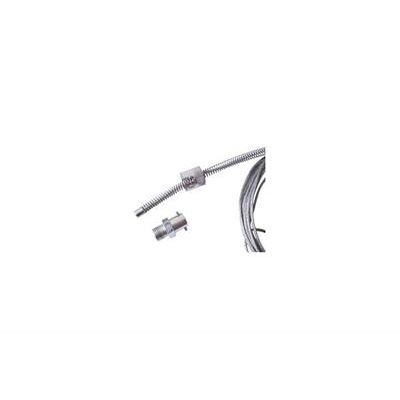

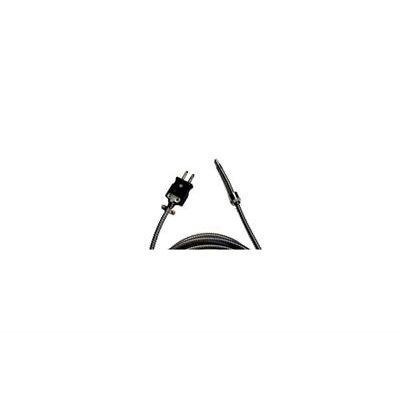

Armor cable protects the leads of Thermocouples types E, J, K, N & T. Metal sheaths made to your required length. Armored thermocouples feature a heavy duty stainless steel armor over the thermocouple wire. The armor protects the wire from mechanical damage. Armored thermocouples are well suited for industrial environments where an unprotected thermocouple may be cut or broken. An alternative to an armored thermocouple is an over braided thermocouple. The over braided thermocouple is more flexible than an armored cable but provides less resistance to abrasion.

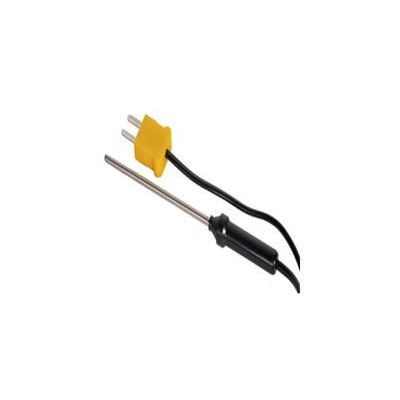

Handheld meter for various Thermocouples inputs. Rugged design, dual scale with loads of functionality. Handheld meter for various thermocouple inputs. Rugged design, dual scale with loads of functionality. Handle is permanently molded to probe sheath. Includes cable and miniature connector. A multi-use, low cost, versatile thermocuple which can be used with any handheld. Available off the shelf in many configurations.

Ultra-high temperatures to over 4,200°F with conduit head attached available in various sheath materials. Exotic Thermocouple Probes are designed for use in extreme temperatures, up to 2315°C (4200°F). These probes utilize either Platinum/Rhodium (types R, S, or B) or Tungsten/Rhenium (types G, C, or D) elements, with a variety of insulations and sheath materials. Depending upon the sheath material selected, these probes may be used in inert, oxidizing, reducing or vacuum conditions. The maximum temperature is based on the lowest max. temperature of the element, insulation and sheath material. Five cold end probe terminations are available: replacement probe, subminiature or standard size ceramic connector, heavy-duty standard size, molybdenum-sheathed nylon connector, or transition joint

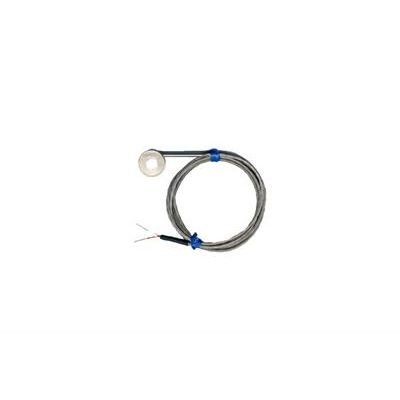

Surface thermocouple probes normally feature a flat Thermocouples element that is designed to make good contact with rigid surface. Surfacemount Thermocouple sensors are designed for use in a variety of applications. Our extensive experience in mounting sensors to precision sheet metal stampings provides efficiency to your process by having us perform this initial assembly step. The product shown is a Pt 100 ohm, RTD mounted with high temperature ceramic cement and spliced to 12” of lead wire.

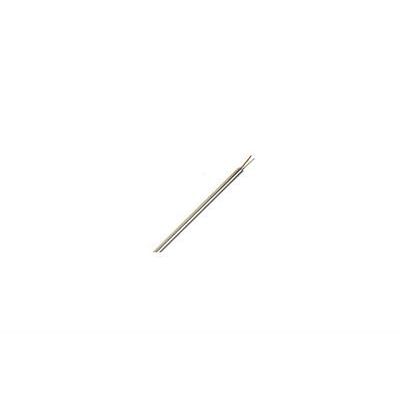

Transition Joint Thermocouples are typically made up of a metal sheathed thermocouple of a given diameter which `transitions` to a lead wire via a slightly larger cylindrical barrel. This barrel transition is typically made of metal or thermoplastic.

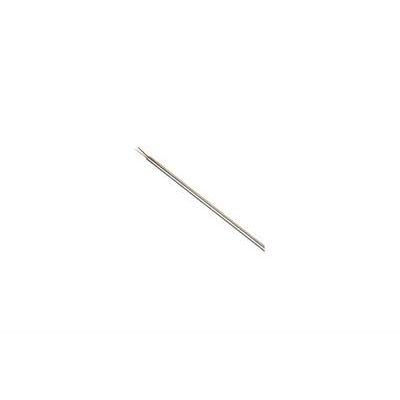

Bare Lead Mineral Insulated Thermocouple Probes can be used as replacement probes for plant operations. These bare lead mineral insulated probes are constructed of the same high grade materials that are used in our thermocouple sensors. A comprehensive range of diameters, lengths, materials and calibrations can be selected for quick delivery.
