Theway Membranes products

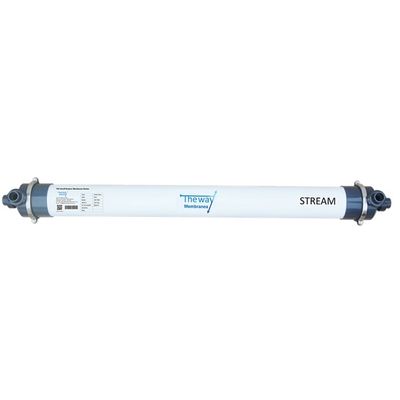

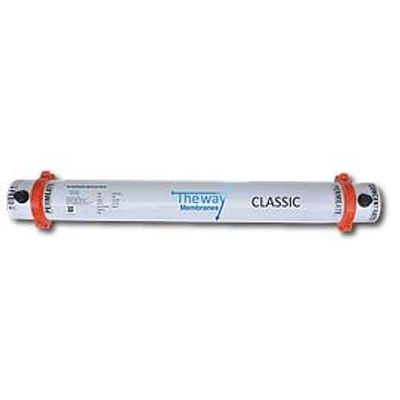

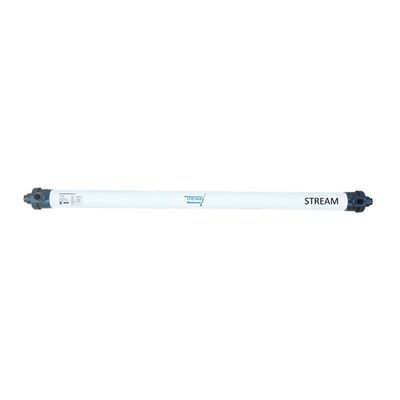

Theway Membranes’ Ultrafiltration (UF) is a pressure-driven membrane based specification process to remove suspended solids, bacteria, viruses, endotoxins and other pathogens to produce water with very high purity and low silt density. A uniquely designed ultrafiltration membrane, suitable for use in a wide range of applications including Desalination, Sewage, Effluent and Drinking water treatment, the TW 90 / 1100 from Theway Membranes  is widely used and adopted. The design is suited for a vertical skid configuration, from small to very large installations. Consult Theway Membranes for design and suitability.

Theway Membranes’ Ultrafiltration (UF) is a pressure-driven membrane based specification process to remove suspended solids, bacteria, viruses, endotoxins and other pathogens to produce water with very high purity and low silt density. A uniquely designed ultrafiltration membrane, suitable for use in a wide range of applications including Desalination, Sewage, Effluent and Drinking water treatment, the TW 160 / 1100 from Theway Membranes  is widely used and adopted. The design is suited for a vertical skid configuration, from small to very large installations. Consult Theway Membranes for design and suitability.

MOC of the membrane: PVDF. Size of the membrane: 1.4mm OD x 0.8mm ID x 300mm L. Porosity: 40-50%. Opening: 0.2 microns. Permeate water condensation flux MOC of the module: 3-5L/m2/hr. MOC of the Module: SS 316.

MOC of the membrane: PTFE. Size of the membrane: 2mm OD x 1.4mm ID x 300mm L. Porosity: 40-50%. Opening: 0.2 microns. Permeate water condensation flux MOC of the module: 3-5L/m2/hr. MOC of the Module: SS 316.

• MOC of the membrane: PP
• Size of the membrane: 0.45mm OD x 0.3mm ID x 300mm L
• Porosity: 50-60%
• Opening: 0.2 microns
• Permeate water condensation flux MOC of the module: 3-5L/m2/hr
• MOC of the Module: Acrylic

BeerFiltra is able to completely remove turbidity to provide the brewer with consistent bright beer. UF leaves behind dissolved solids which leaves behind a better sensory taste characteristic which is highly sought after in the beer industry. BeerFiltra’s Inside-Out filtration design ensures very high retention rates against impurities in beer and offers the highest efficiency in terms of removal along with convenience of easy cleaning and operation. TIPS technology fibers ensure very high mechanical strength and long term integrity of fibers. Fibers are compactly packed to provide the user with industry leading membrane surface area per module. Unique and proprietary fiber chemistry and manufacturing process ensure industry leading performance. The carefully tailored surface morphology of the membrane ensures no degradation in sensory quality of filtered beer.

WineFiltra, Theway`s answer to wine filtration, clarification and cold sterilisation problems, is able to completely remove turbidity to provide the Winemaster with consistent clear wine. UF leaves behind dissolved solids which leaves behind a better sensory taste characteristic which is highly sought after in the beer industry. WineFiltra’s Inside-Out filtration design ensures very high retention rates against impurities in Wine and offers the highest efficiency in terms of removal along with convenience of easy cleaning and operation. TIPS technology fibers ensure very high mechanical strength and long term integrity of fibers. Fibers are compactly packed to provide the user with industry leading membrane surface area per module. Unique and proprietary fiber chemistry and manufacturing process ensure industry leading performance. The carefully tailored surface morphology of the membrane ensures no degradation in sensory quality of filtered Wine.

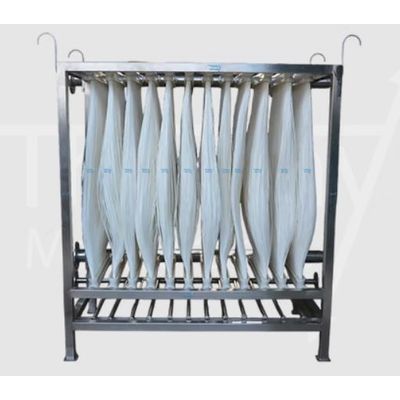

Theway Membrane Bioreactors (TW-MBR) represent a revolution in water treatment. TW-MBRs uniquely combine two important processes in water treatment. The secondary water treatment step of Activated sludge to remove oxygen demand from water and the tertiary treatment step of micro or ultrafilltration using membranes are combined into one seamless step of treatment.

Theway Membrane Bioreactors (TW-MBR) represent a revolution in water treatment. TW-MBRs uniquely combine two important processes in water treatment. The secondary water treatment step of Activated sludge to remove oxygen demand from water and the tertiary treatment step of micro or ultrafilltration using membranes are combined into one seamless step of treatment.

Type Hollow Fiber. MOC Membrane PES. Body PVC. Potting Epoxy. Cap  PVC/PP. MWCO 100 KDa. Area 55 M2. Size of Fiber 1.4 mm OD x 0.8mm ID. Flow Out - In. Operating Mode Cross Flow. Feed Pressure 3 Kg/cm2 Max. Tr Memb Pressure 1 Kg/cm2 Max. Backwash Pressure 2 Kg/cm2 Max. Operating pH 1 to 13. Operating Temp 45 Deg C. Feed Flux 50 -100 L/M2/ Hr. Backwash Flux 100 - 300 L/M2/ Hr. Filtration Time 10 -60 Mins. Backwash Time 1 - 10 Mins. Flush Time 1 -10 Mins.
