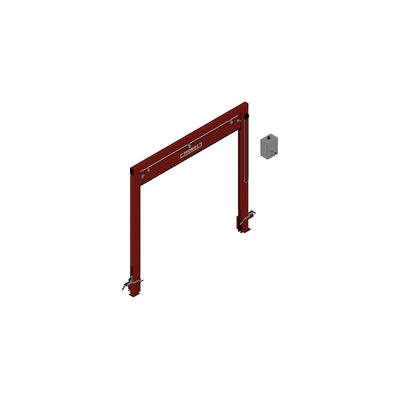

The TÜV and VdS certified firewater barrier consists of one left side U-profile and one right side U-profile as well as a hollow, thermally and mechanically resistant aluminum barrier. When not in use, the barrier is held in the upper position by pneumatic cylinders. The pneumatically controlled, weight-compensated closing of the barrier begins when designated buttons are activated or there is a loss of power. When the metal barrier has been lowered to the active position it is automatically locked into place by two pneumatic quick clamps. Unlocking of the clamps and resetting of the barrier to its upper position occur pneumatically. This product is protected by patent.

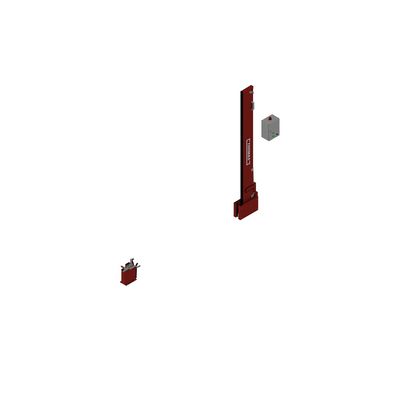

The TÜV and VdS certified firewater barrier consists of a vertically standing barrier body with a hinge and barrier box on one side as well as a U-profile receiver on the other. When not in use, the barrier is held in the vertical position by a pneumatic cylinder. Upon activation of a button, an on-site fire alarm or in cases of power loss, the vertically standing barrier pivots to the horizontal, closed position where it is automatically locked into place in the U-profile by pneumatic clamps. Unlocking of the pneumatic clamps and resetting of the barrier to its vertical position is carried out automatically by the pneumatic cylinder. This product is protected by patent.

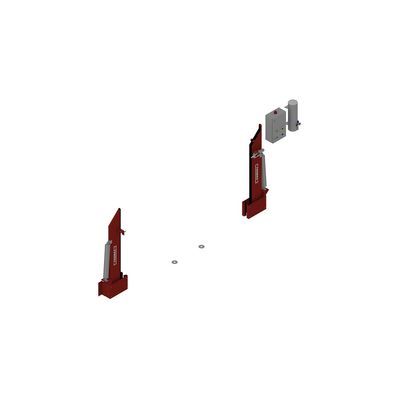

The firewater barrier, certified by TÜV and produced according to VdS guidelines, consists of a metal, multi-chamber profiled barrier which is thermally and mechanically resistant. On either the left or right sides, the metal barrier is attached to a pivoting hinge. When open, the the barrier’s vertical positioning is spatially economical. When not in use, the barrier is held in the open position by pneumatic cylinders.

The TÜV and VdS tested and certified firewater barrier consists of one left side U-profile and one right side U-profile as well as an aluminum, multi-chamber profiled barrier which is thermally and mechanically resistant. A counter balancing weight is located in a rectangular pipe. When not in use, the barrier is held in the upper position magnetically. If power is lost, the weight-compensated closing of the barrier begins by means of a flow control unit. When the metal barrier has been lowered to the horizontal, closed position it is automatically locked into place. Unlocking of the clamps and resetting of the barrier to its upper position occurs manually. This product is protected by patent.

The TÜV and VdS certified firewater barrier consists of one horizontal floor plate hinged on either the left or right side, a U shaped profile receiver on the opposite side and a metal barrier sized appropriately for the storage position. When not in use, the barrier is held in the vertical position magnetically. The metal barrier is lowered in a controlled fashion from its resting position to the horizontal sealing position in the U-profile on the opposite side. When in place, the metal barrier is automatically locked into place by an impulse clamp. Unlocking of the impulse clamp and resetting of the barrier to its vertical position occurs manually. This product is protected by patent.

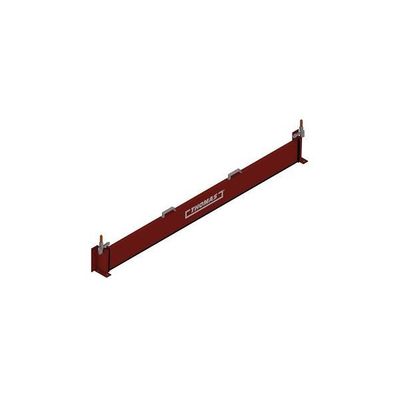

The TÜV and VdS certified firewater barrier consists of one left side U-profile and one right side U-profile which can either be mounted in or in front of the opening as well as a metallic barrier made of thermally and mechanically resistant hollow-chamber profile. The barrier is set into the U-profile and locked into place. Unlocking and removal occur manually. 2 L-shaped wall mounts are provided for storage outside of the U-profile. This product is protected by patent.

The firewater barrier, certified by TÜV and produced according to VdS guidelines, consists of one left side U-profile and one right side U-profile which can be mounted in or in front of the opening as well as a hollow-chamber, thermally and mechanically resistant metal barrier. The two metal barriers are set into the U-profile and locked into place using two quick clamps. Unlocking and removal also occur manually. Two L-shaped mounts are provided for storage of the barriers when they are not in place in the U-profile.

Automatic doorway spillbarrier FM approved. High temperature resistant, according to Hydrocarbon curve over 30 minutes up to 1000 °C tested barrier, to retaining burning and non-burning, solid and liquid substances. Automatically and without external energy closing and secure sealing barrier – consists of a perpendicularly standing metal barrier body with revolute joint and a barrier box on one side and a U-profile with impulse tensioner on the other side. The metal barrier is held at its vertical rest position by an electrical magnet.

High temperature resistant, according to Hydrocarbon curve over 30 minutes up to 1000 °C tested barrier, to retaining burning and non-burning, solid and liquid substances. Permanent mounted securely sealing barrier – consists of a fixed installed barrier element. The barrier is not open, the barrier element is screwed liquid-tight on the floor and wall. The unit is not provided with a channel system and sump with liquid sensor, it is not required for this type of barrier!

The barrier, certified by TÜV and produced according to VdS guidelines, consists of one left side U-profile and one right side U-profile which can be mounted in or in front of the opening as well as a hollow-chamber, thermally and mechanically resistant metal barrier. The two metal barriers are set into the U-profile and locked into place using two quick clamps. Unlocking and removal also occur manually. Two L-shaped mounts are provided for storage of the barriers when they are not in place in the U-profile.
