Titanium Electrode Products Inc. products

TELPRO Tubular Anodes are manufactured using titanium, which meets ASTM B338 Grade 1 or Grade 2 standards, which has been coated with TELPRO Mixed Metal Oxide coating. TELPRO MMO coating consists of IrO2/Ta2O5 and is suitable for use in all cathodic protection applications. Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate remains constant throughout the design life of the anode. Based upon accelerated life testing, conducted by an independent laboratory, TELPRO MMO coating has been proven to be equivalent or superior to other mixed metal oxide coatings which are currently being used; a copy of this test report is available upon request.

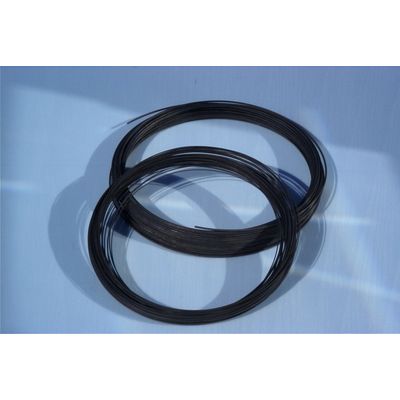

TELPRO MMO WIRE ANODES are available in two standard sizes (1.5mm dia & 3mm Dia), with two standard current ratings. Other sizes and rating are available upon request. TELPRO MMO Wire Anode consists of solid titanium wire which meets ASTM B863 Grade 1 or 2 standards that has been coated with Telpro Mixed Metal Oxide Coating. TELPRO MMO Anodes have an extremely low consumption rate. The titanium substrate remains constant throughout the design life of the anode.

TELPRO RIBBON ANODES for Use in Fine Sand and Concrete are manufactured using titanium substrate which meets ASTM B265 Grade 1 Standards and TELPRO Mixed Metal Oxide Coating. Working Environment: Evolution O2, Cl2 or a combination of both.

TELPRO RIBBON MESH ANODES  are manufactured from ASTM  B265, Grade 1 Titanium and coated with Telpro Mixed Metal Oxide Coating. Typically these anodes are used in the protection of steel rebar embedded in concrete / mortar. The use of Impressed Current Cathodic Protection systems has been proved to be a very effective way of controlling corrosion of rebar, particularly in hot and saline conditions. There are four standard sizes of Ribbon Mesh available with a variance in current output between them. Anode life is typically 75 years although greater lifetimes can be accommodated.

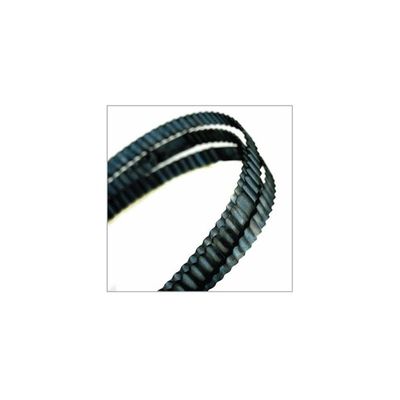

Telpro Sawtooth Ribbon Anodes are a new product development for Telpro. We corrugate a flat ribbon to increase its overall surface area to obtain a higher current output. Telpro Sawtooth  Ribbon Anode is manufactured using titanium which meets ASTM B265 Grade 1 which has been coated with Telpro Mixed Metal Oxide Coating. Telpro MMO coating consists of IrO2/Ta2O5 and is suitable for use in all cathodic protection applications. Because mixed metal oxide anodes have a very low consumption rate the titanium substrate remains constant throughout the design life of the anode.

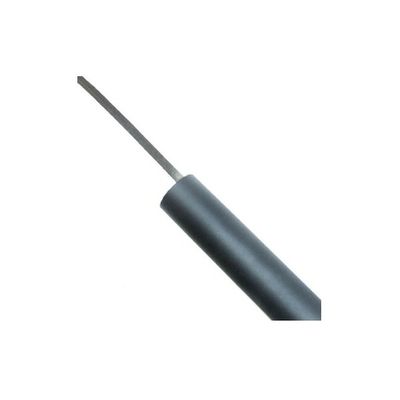

TELPRO Mixed Metal Oxide Activated Tubular Point Source Anodes are manufactured using titanium, which meets ASTM B338 Grade 1 or Grade 2 standards, which has been coated with TELPRO Mixed Metal Oxide coating. TELPRO MMO coating applied to the titanium substrate has been designed for use in all cathodic protection applications. TELPRO coating consists of IrO2/Ta2O5 and is suitable for use in soils, freshwater, brackish water and seawater. Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate used remains constant throughout the design life of the anode.

TELPRO TEL-TANK Anode Assemblies are designed for ease of installation and cost savings. TEL-TANK Anode Assemblies use TELPRO MMO Ribbon Anodes assembled on HMWPE Cable. TELPRO Ribbon is manufactured using titanium to ASTM B265 Grade 1 specifications, which has been coated with TELPRO Mixed Metal Oxide coating. TELPRO MMO coating consists of IrO2/Ta2O5 and is suitable for use in all cathodic protection applications. Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate remains constant throughout the design life of the anode.

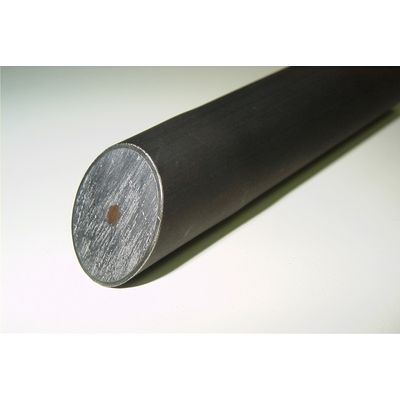

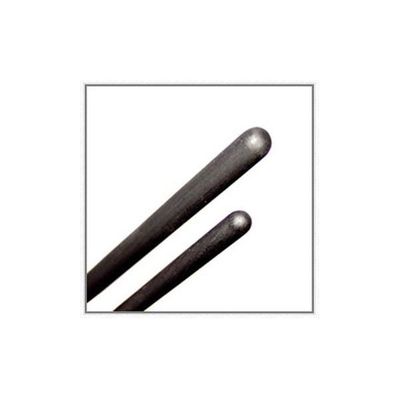

TELPRO Rod Anodes are manufactured using titanium, which meets ASTM B348 Grade 1 or 2 standards, which has been coated with TELPRO Mixed Metal Oxide coating. TELPRO MMO coating consists of IrO2/Ta2O5 and is suitable for use in all cathodic protection applications. Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate remains constant throughout the design life of the anode.  Based upon accelerated life testing, conducted by an independent laboratory, TELPRO MMO coating has been proven to be equivalent or superior to other mixed metal oxide coatings which are currently being used; a copy of this test report is available upon request.

TELPRO Disc Anodes are manufactured using titanium, which meets ASTM B265 Grade 1 or 2 standards, which has been coated with TELPRO Mixed Metal Oxide coating. TELPRO MMO coating consists of IrO2/Ta2O5 and is suitable for use in all cathodic protection applications. Because mixed metal oxide anodes have an extremely low consumption rate, the titanium substrate remains constant throughout the design life of the anode.
