TMVT Industries Pvt Ltd products

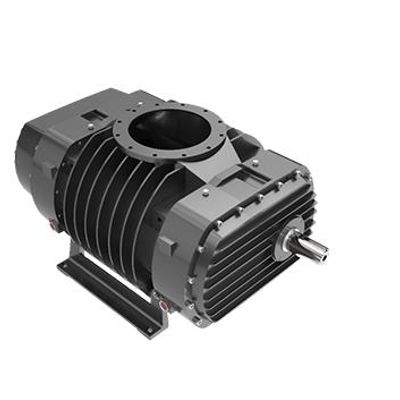

TMVT introduces the new 3MTL series of Three Lobe Roots Blowers having a capacity of 5 m3/hr to 60,000 m3/hr for discharge pressure up to 1 bar and vacuum up to -0.5 bar. Owing to `THREE LOBES` Rotor design, the discharge pressure variation is much lower compared to that of a conventional 2 lobes Rotor, resulting in less pulsation, thereby reducing vibration, noise, power consumption, and increasing the life of rotating parts like bearings and gears.

TMVT make Twin Lobe Roots Blowers MTLK Series are enjoying tremendous reputation in the market since about 3 decades.

TMVT introduces the revolutionary High Speed Gearless Turbo Blower, equipped with the state-of-the-art Non-contact Air Bearing and High Precision Direct-coupled Aerodynamic Impeller. The machine is driven by the Latest Energy Efficient Permanent Magnet Synchronous Motor. The rotation speed is varied by the optimally customized Variable Frequency Drive to control the flow or pressure. Real-time monitoring of the complete system is done by the Programmable Logic Controller having a user friendly touch screen Human Machine Interface built in a sound proof enclosure package.

TC type radial turbo compressors are modern flow machines for compression of large quantities of air or gas from 1,500 to 60,000 m3/h with pressure up to 2.5 bar g. Spatial technology machining of the impeller blades ensures high compression efficiency (over 85%) and high general efficiency. There are two modular types TCH & TCB consisting of Hydrodynamic journal bearings and Ceramic angular Ball bearing respectively. The Simple design guarantees maximum reliability for its industrial applications.

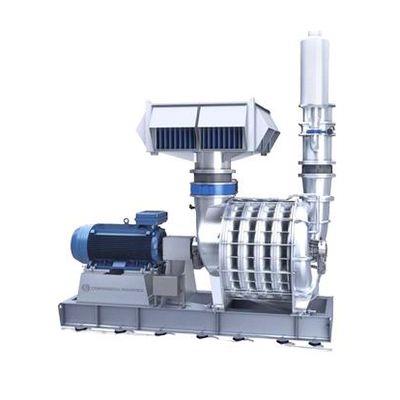

With more than 30 years of experience in manufacturing centrifugal machines, our engineering office in association with 2 French research center`s specialized in fluid mechanics has developed and optimised the efficiency of our machines. We now are proud to offer you the new generation of centrifugal boosters and exhausters ranging from 100 to 70,000 mA3/hr in dry clean and non-pulsing air, achieving pressures up to 1.8 bar and 6700 mm H20 (WG) Vacuum.

Dry screw vacuum pumps operate with two screw rotors rotating in opposite directions. This traps the medium to be pumped between the cylinder and the screw chambers and Transports it to be the gas discharge. Vacuum is formed by the principal of suction, Compression and discharging through passing regular intervals of two small pitches. Hybrid Combined Variable Pitch is a screw type to remedy the disadvantage of Single pitch and adjustable-pitch compare to conventional single pitch.

Material Of Construction: Considering corrosive conditions of gas to be handled, construction of the vacuum pump is selected. It is available in complete cast iron, complete S.S., partial S.S. or partial bronze construction.

TMVT Vacuum Boosters dramatically reduce process time by achieving faster evacuation. They also reduce power requirements. It can also achieve higher values of vacuum, if required. TMVT EH Series Booster applied Hydro kinetic Drive which is able to run from atmospheric pressure is not necessary of Pressure sensor or By-Pass compare to Direct Drive thus low repair and maintenance , fast reaching to operation vacuum degree and smooth operation is available and give customer satisfaction with the best system design and accessories installation considering various process conditions.
