TNR Offshore products

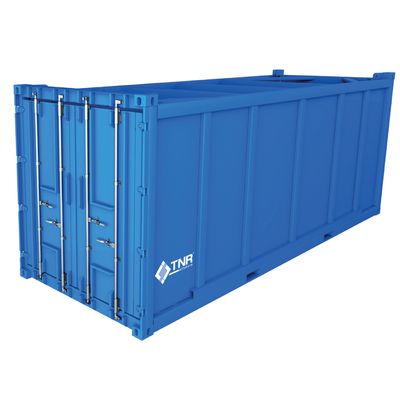

The 20x8 FT Container by TNR Offshore is engineered for versatile transportation of dry goods, specifically optimized for offshore environments. It features a proven and robust design that enhances durability and functionality, with internal lashing points for securing cargo, and forklift pockets for efficient handling. The container integrates ISO corners and stacking capabilities, ensuring compliance with standardized logistics operations. Constructed according to DNV 2.7-1, ISO 10855:2018, and IMO MSC/Circular 860 certifications, it guarantees adherence to international safety and performance standards. The container has dimensions of L 6058 mm, W 2438 mm, H 2570 mm and offers a payload capacity of 11500 kg while maintaining a tare mass of 4200 kg. It supports a maximum gross mass of 15700 kg, providing ample space and weight capacity for varied logistics needs.

The 3.5 m³ Cutting Box Container is engineered specifically for the offshore drilling industry to facilitate the secure storage, containment, and transportation of drilling waste. Its robust construction ensures durability, while the aluminum lids provide ease of handling and ensure safe sealing. Designed with two sets of forklift pockets, the container is easy to maneuver and relocate. It adheres to stringent industry standards with certifications like DNV 2.7-1, ISO 10855:2018, and IMO MSC / Circular 860, assuring its reliability and safety in operational environments. The container dimensions are 2212 mm in length, 1852 mm in width, and 1600 mm in height, with a tare mass of 1650 kg and a maximum gross mass of 11000 kg, providing ample capacity for substantial payloads. These containers are essential in enhancing operational efficiency in offshore drilling by managing waste securely and effectively.

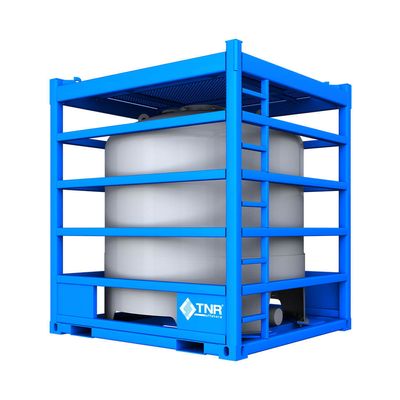

The 4800 L Vertical Waste Oil Tank is engineered for the secure storage and transport of hazardous chemicals in offshore environments. This robust tank is mounted on a skid to ensure stability and to endure dynamic lifting and impact forces in challenging sea conditions. It features a proven design with forklift access and is rated for a design pressure of 1.77 bar. The tank is equipped with a 2.5-inch pressure safety valve, and includes a drainage and sampling valve for operational efficiency. It is certified to comply with DNV 2.7-1, ISO 10855:2018, and ASME VIII Div.1 standards, ensuring reliability in harsh conditions. With dimensions of 2200mm x 2200mm x 2569mm and a tare mass of 2750 kg, it supports a payload of up to 7500 kg, offering a maximum gross mass of 10250 kg. This tank is ideal for operators requiring reliable and efficient offshore hazardous materials handling.

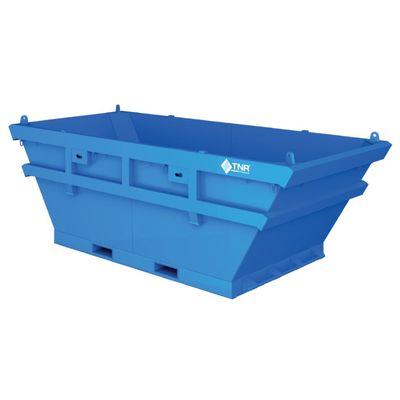

The 6 m³ waste skip container is tailored for the secure and effective transportation and storage of general waste. Engineered with a proven and robust design, it incorporates features such as drainage holes and forklift pockets, ensuring easy handling and fluid drainage. Its dimensions are meticulously specified at 3909 mm in length, 1894 mm in width, and 1410 mm in height, with the option to consider measurements in feet. The container's weight specifications highlight a tare mass of 1610 kg and a maximum gross mass of 6500 kg, enabling it to carry up to 4890 kg of payload. This container meets the stringent standards of DNV 2.7-1, ISO 10855:2018, and IMO MSC/Circular 860, making it a reliable choice for offshore and industrial applications. With its comprehensive certification, it assures users of its structural integrity and compliance with international regulations.

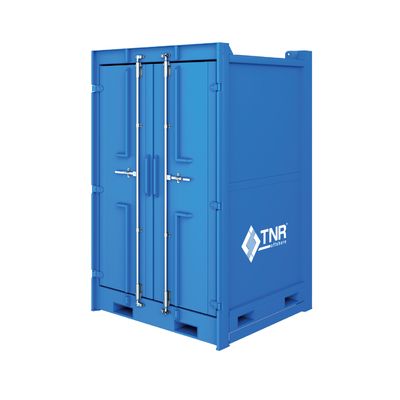

The 6×6 ft dry goods container is engineered for the secure transportation of dry goods in offshore environments, featuring a proven, robust design with internal lashing points and forklift pockets for easy handling. This multi-purpose container includes an intermediate deck and is stackable, providing efficient space utilization. Adhering to DNV 2.7-1 and ISO 10855:2018 standards, and recognized by IMO MSC / Circular 860, the container ensures compliance with international safety and quality standards. With dimensions of 1830 mm in length and width and a height of 3007 mm, the container supports a maximum payload of 4500 kg, while its internal deck can accommodate up to 2250 kg. The container has a tare mass of 1750 kg and can handle a gross mass up to 6250 kg. Designed for versatility in offshore conditions, it ensures reliable performance under strenuous conditions.
