Tolomatic, Inc. products

MXP-N internal bearing compact air cylinder is a low-cost solution for applications requiring limited loads and bending moments. The Tolomatic MXP-N internal bearing compact air cylinder offers a space-saving design over typical rod type air cylinders. Lowest breakaway pressure of the MXP line of cylinders, Perfect for use in vertical applications, Permanently lubricated internal bearing for reduced maintenance

MXP-S Solid bearing pneumatic air cylinder is available in long strokes (up to 206 inches). The Tolomatic MXP-S solid bearing long stroke pneumatic air cylinder offers a large carrier mounting pattern for load stability. Large bearing suface contact area minimizes wear for long service life, Engineered bearing material does not require additional lubrication, Solid bearings are field replaceable for easy service, Higher Mx moment capacity than the Tolomatic BC2 band cylinder

RSH hygienic electric actuators feature 316 stainless steel construction and IP69K. Tolomatic’s line of hygienically designed all stainless steel electric actuators offer up to 7,943 lbf (35.3 kN) and they are the perfect solution for food and beverage applications where higher forces are required for pressing, pumping, cutting or slicing. Use the Tolomatic Your Motor Here^® database to select from a wide variety of stainless steel motor manufacturers for a complete all stainless package. 3 body sizes with 316 series stainless steel construction, Ball and roller screw options, Force/thrust capabilities up to 7,943 lbf (35.3 kN), Stroke lengths up to 48 inches (1.2 m), IP69K, clean in place compatible.

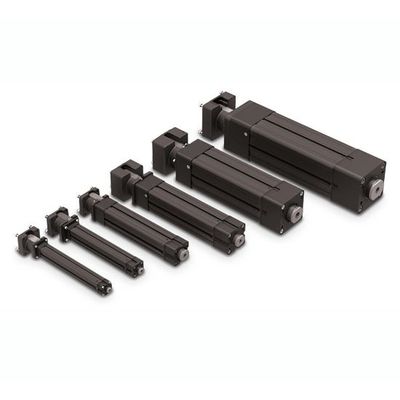

RSA-ST electric linear rod actuators feature accurate, medium force performance making them ideal for replacing pneumatic cylinders. High thrust bearings and internal bumpers deliver heavy duty performance. A rigid, strong aluminum housing allows for easy mounting of switches and sensors. These electric linear rod actuators are suitable for pneumatic replacement, general motion control applications and many more. 6 body sizes with built-to-order stroke lengths of 12 to 60 inches (305 to 1,524 mm), Stroke lengths up to 60 inches (1,524 mm), Forces of up to 4,038 lbf (40,257 N), Ball, solid, and bronze screw choices, Low-backlash ball screw option, Flexible mounting options
