Tower Components, Inc.. A subsidary of Evapco Inc. products

Opti-Pac VAF-19 media is manufactured from rigid PVC sheets for cooling tower heat-transfer applications. The media is fabricated from rigid PVC sheets conforming to CTI STD-136 that are solvent-welded for maximum strength and resistant to UV, rot, fungus and organic and inorganic solvents, acids and alkalis, and chemicals normally found in cooling tower waters.

Opti-Pac 3000 is a cross-fluted film fill media manufactured from rigid PVC sheets conforming to CTI STD-136 for cooling tower heat-transfer applications. The media is fabricated from corrugated PVC sheets that are solvent welded for maximum strength and resistant to UV, rot, fungus, organic / inorganic solvents, acids, alkalis, and chemicals normally found in cooling tower waters.

Opti-Pac 2100 Plus OF is a higher performing, low-fouling film fill media with vertically offset flutes manufactured from rigid corrugated PVC sheets for counterflow cooling tower heat-transfer applications. The fill modules are solvent-welded for maximum strength and are resistant to UV, rot, fungus, organic / inorganic acids, alkalis, and chemicals normally found in cooling tower water.

Available with an integrated louver and with an integrated drift eliminator, Opti-Pac 7500 film fill media are designed to replace OEM hanging fill sheets in crossflow cooling tower applications. The media are fabricated from rigid, thermoformed PVC sheets that are solvent-welded for maximum strength. They are resistant to UV, rot, fungus, organic/inorganic solvents, acids, alkalis, and chemicals normally found in cooling tower waters. The fill modules meet requirements of the Cooling Tower Institute’s standard for rigid PVC, STD-136.

Opti-Pac 1900 XF/IL/DE (XF = cross cut / IL = integrated louver / IDE - integrated drift eliminator) is a cross-fluted film fill media manufactured from rigid PVC sheets for cross-flow cooling tower heat-transfer applications. The media is fabricated from corrugated PVC sheets conforming to CTI STD-136 that are solvent-welded for maximum strength and are resistant to UV, rot, fungus, organic / inorganic acids, alkalis, and chemicals normally found in cooling tower waters.

Opti-Pac 1900 is a cross-fluted film fill media manufactured from rigid PVC sheets conforming to CTI STD-136 for cooling tower heat transfer applications. The media is fabricated from corrugated PVC sheets that are solvent welded for maximum strength and resistant to UV, rot, fungus, organic / inorganic solvents, acids, alkalis and chemicals normally found in cooling tower waters.

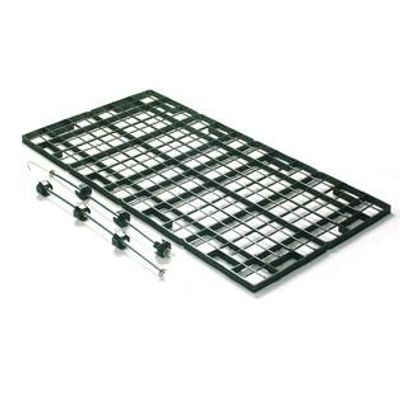

Opti-Grid is a direct replacement splash fill for use in crossflow and counterflow towers where dirty water is a concern. Optimum performance in a splash fill is the result of maximizing the number of water droplets in order to produce the highest surface area of water available to the passing air. Narrow horizontal strips, in uniformly spaced tiers throughout the heat transfer area, provide optimum efficiency.

Opti-Lath is Tower Components` latest design of crossflow cooling tower splash fills. Designed specifically to enhance the performance of existing towers, it also provides equal performance in new towers at lower fan horsepower requirements.

Opti-Wave drift eliminators have extruded PVC sine wave profiles 50 mm thick with reinforced upper and lower edges. This provides extra stiffness for long spans with minimum deflection. Spacers secure wave sections uniformly at 2-inch increments for increased stability and modules join together with an integral locking feature that holds the assembled module grid securely. This provides for fast and efficient assembly. Modules can be cleaned if they become fouled.

The OC-80 is a high efficiency cellular drift eliminator for counter-flow cooling tower applications. The OC-80 is manufactured from rigid, corrugated PVC sheets resistant to UV, rot, fungi, bacteria, organic/inorganic solvents, acids, alkalis, and chemicals normally found in cooling tower waters.
