TRACE Analytics GmbH products

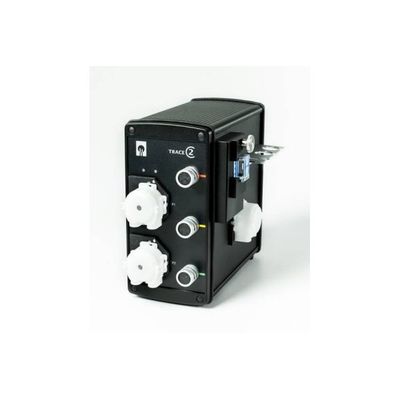

TRACE C2 Control is used for online monitoring of important substrates and metabolites in cultivations of microorganisms and cell lines. Additionally, it provides direct PID and min/max-feed control with an integrated feed pump.

The TRACE M4 peripheral is an extension of the TRACE C2 Control with the option to monitor up to four different bioreactors.

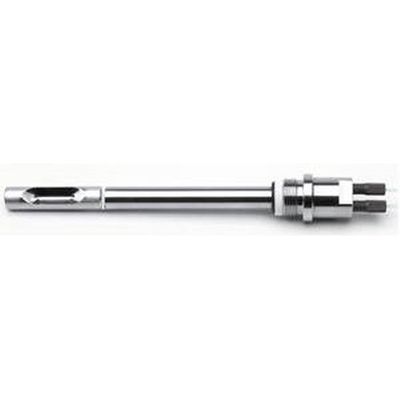

The TRACE dialysis probe provides the perfect solution for sterile online sampling in connection with the online analyser TRACE C2 Control, TRACE M4 and MultiTRACE as well as the online bioreactor sampling system TRACE C2 Sampling.  The dialysis probe is installed in the bioreactor and can be sterilized in situ. It can be used in industrial as well as laboratory facilities. The probe can also be used in single-use bioreactors via a Kleenpak™-Adapter.

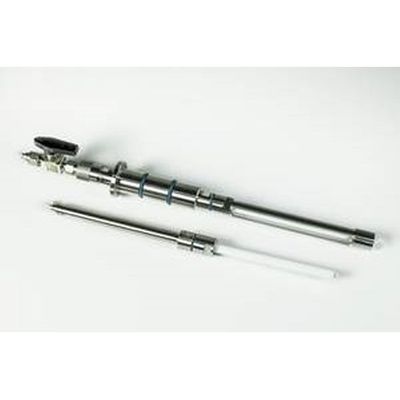

The TRACE filtration probe is intended for harvesting cell-free filtate from bioreactors and fermenters under sterile conditions. A tubular microfiltration membrane made of polypropylene, positioned inside the bioreactor, serves as a sterile barrier. The filtration probe is sterilized together with the bioreactor. It is installed in the bioreactor cover port (12 mm with PG13.5 or 19 mm with adapter 19/12 mm) and side port (25 mm).

LaboTRACE compact, the automatic analyzer for the simultaneous determination of glucose and l-lactate in cell cultivations and fermentations. The well proved biosensor technology guarantees fast and accurate results in less then one minute. Calibration measurements and cleaning cycles will be done automatically.
