Transcend Cleantec Pvt. Ltd. products

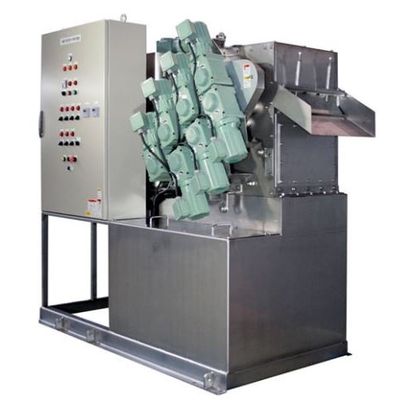

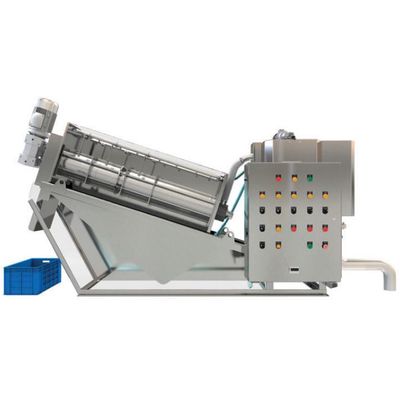

Transcend Cleantec Private Limited has pioneered the technique of manufacturing Multi Disc Screw Press in India. These sludge dewatering press are intended for mechanical dewatering of community and industrial wastewater sludge. They are recommended for wastewater sludge dewatering on low-capacity municipal wastewater facilities, as well as for food, pulp-and-paper, pharma,textile, chemical, oil-refining and similar industries. These sludge dewatering press are efficiently used for dewatering rates of up to 1000 kg/hr – dry solid mass. These dehydrators are a good alternative to traditional dewatering equipment. It provides dewatered sludge with a moisture content of less than 80% in conditions of classic wastewater treatment plants.

Special Features: Compact and easy to install. Possible to treat oil-contained sludge. Energy saving. Low wash-water consumption. No secondary pollution. Simple maintenance work. Hardly to clog.

The automatic polyelectrolyte preparation and dosing system consists of a rectangular tank divided into three compartments. First compartment, for dilution, is complete with polyelectrolyte loading hopper, micro-screw dispenser and relevant variable speed drive, fast mixer for the polyelectrolyte mixing, inflow system for the dilution water and solenoid valve, flow meter. The mixing chamber with the a vigorous flow of water starts the initial mixing.

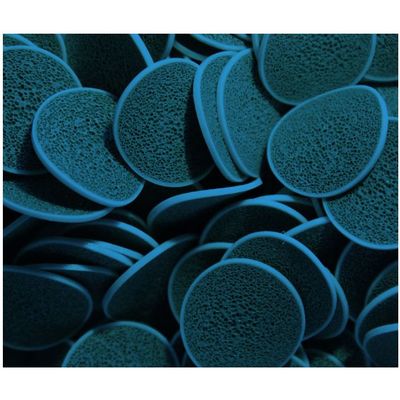

Removal rates of Transchip 3.0 are up to 13 times higher than with "conventional" carriers. The Transchip 3.0 MBBR Media is a high-performance MBBR carrier and provides a protected active surface area of - 5,500 rrrVm3 for the immobilization of micro-organisms which are in charge of the different biological water treatment processes. Its application is characterized by extremely high removal rates and reliable process stability.

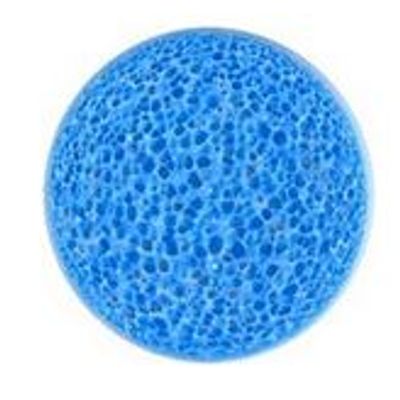

Not all polyurethanes are the same! NORRES uses a special polyurethanes mixture that is differentiated with the name Pre-PUR for several of its conduits. Our Pre-PUR raw materials are distinguished in the following ways from many of the membrane materials commercially available.

The Roots-type blower is a positive displacement lobe pump which operates by pumping a fluid with a pair of meshing lobes resembling a set of stretched gears. Fluid is trapped in pockets surrounding the lobes and carried from the intake side to the exhaust.The Roots is a valve less positive displacement mechanism in which a pair of lobed rotors, interlocked and synchronized, rotate in opposite directions moving past each other and the stator wall with small clearance.AIR/Gas is trapped in front of each lobe and swept around the stator periphery from inlet to outlet.Very large displacement (above 20000 m3/h) and the mechanism has proven very effective in thpressure region from 10 to 103 mbar, but only when delivering against low pressure differentials.As a displacement machine and not a true compressor, the foots mechanism is not suited to discharging to near atmospheric pressure (i.e with significant differential pressure).

This equipment is composed of flushing device, screen net, water distribution box, inlet and outlet pipe, scum board, frame, drum cover and transmission device. The sewage flows into the filter cylinder from the water tank, the clean water flows out through the filter net and the outlet tank, the residue will be trapped in the drum and guided into the discharge port through the slag guiding plate. During the working time, the flushing work has been done discontinuity. The drum cover is moveable. It is sealed when operation normally and can be opened to clean the drum screen when there is something wrong.

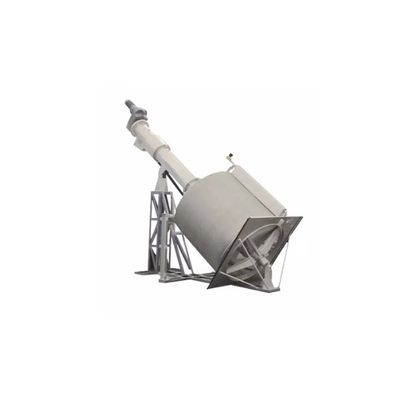

The Spiral Screw Screen Is useful to pre-treatany kind of sewage water. As the water runs through the screen the shaft less spiral conveys the solids up towards the compaction module where the material is further de-watered. It is used for the treatment of fine grate wastes and sludge transfer in treatment plants but also for industrial plants. The main advantage of these screens is the low cost of initial investment. The spiral screw screen is mounted in an open channel with an incline of 35 to 45 , it can be in made from two types of material perforated & Wedge wire type.

Municipal & Industrial wastewater treatment plants generally use mechanical screening as the first step in the wastewater treatment process (pretreatment). Mechanical screens remove larger solids from wastewater in order to protect the equipment in the treatment stages that follow. The type of screen most suitable for a particular application relates specifically to the size and type of solids in the wastewater. For example, sticky solids may require the use of a drum screen, while larger solids may just require a standard screw screen. We offer a complete range of mechanical screens, from automatic coarse bar screens, to drums screens and screw screens. We also offer specialist compact screen units that facilitate the combined removal of sand, oil, grease, fibers and solids all in a single process step.

Wedge wire screen is a type of purifying screen, which is composed of profile wires and support rods. The profile wires are usually triangle wire and the support wire of wedge wire screen can be triangle wire, round bar, flat wire or wedge wire. Wedge wire screen has various types and specs. The type of wedge wire screen is mainly according to the shape of the screen. There are many types of wedge wire screens.
