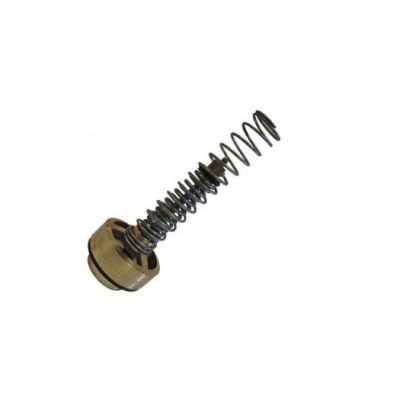

TRI AUTO FLO ;   MECHANICAL SPECIFICATION AND ORDERING FORM; Tri Auto Flo  is a combination isolation Valve, Union, Pressure and Temperature port which is equipped with a Tri Auto Flo cartridge, which is capable of maintaning the flow within +/- 5% of actual flow rate between 2-50 PSID differential pressure across the cartridge. The Tri Flo forged brass body insures multiple taps, reliable leak free performance and additional accesories to accomodates variable piping configurations. Tri Flo Tech is capable of manufacturing the cartridges to maintain the flow to decimal increments such as 1.1 G.P.M., 1.2 G.P.M. thru 1.9 in all flow rates. Please Remove the cartridges from line when flushing the system.

Manufactured to the recommendatons of AGA. ISA. AS VIE and ISO. Normally supplied in 304 or 316 stainless steel. Monel, Hasttfioy C or B. Alloy 20, Teflon and other materials available. Supplied in all standard designs — Concentric, Eccentric. Quadrant Edge. Bore with Counter Bore. SegT»ental. Sized to the correct bore by our engneering department on our computer system for fast calculations with accuracy. Grounding rings anc spacers available to customer specifications.

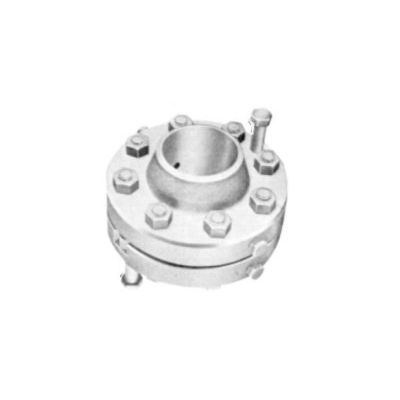

ORIFICE FLANGES — A.S.T.M. A181, Gr. 1 and Gr. 2 Forged Steel or A.S.T.M. A105, Gr. 1 or Gr. 2 Forged Steel. STUD BOLTS — A.S.T.M. A193, Gr. B7 Alloy Steel. HEXAGONAL NUTS — A.S.T.M. A194, Gr. 2 Carbon Steel. JACKSCREWS — (2) per Union. PIPE PLUGS — Steel, Hex. Head Forged. GASKETS — (2) per Union, Non-asbestos.

Full Venturi with averaging Pizometer rings for maximum accuracy: Brass Body, End Piece, and Full Venturi, Chrome Plated Brass Ball with Teflon Seals. Dual Viton O-Ring Seals on Ball Stem. Union, and End Cap. Zinc Plated Handle with Vinyl Cover. 94% HEAD LOSS RECOVERY ACCURACY+/-0.33%.

Assembly: Full union ball valve with memory stop Brass Body and End Piece, Chrome Plated Brass Ball with Teflon Seals. Dual Viton O-Ring Seals on Ball Stem, Union, and End Cap. Zinc Plated Handle with Vinyl Cover. Matches the Tri M Flo less the venturi insert.

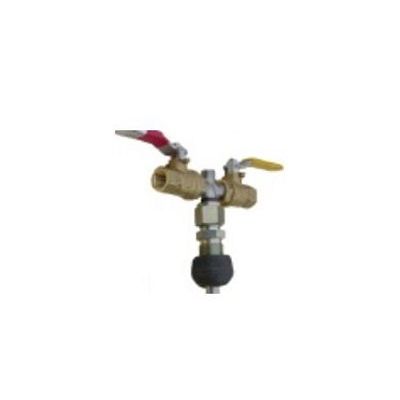

Tri-Flo Model 140-HVAC averaging pitot tubes are designed to sense the complete velocity profile within the stream by using multiple averaging ports to achieve better than ±0.5% accuracy (please refer to independent flow lab results). The sensor can be mounted on pipe or thin wall duct using a thread-o-let. The 316SS sensor for W through 8` line size is Yi` in diameter with a red handle which is used for the upstream tap.

Model 301 Three valve Manifold double Fanged Manifold allow the pressure transmitter to be directly mounted, eliminating the need for additional piping valves and fitting
