TRI FLP Engineers Pvt Ltd. products
Flameproof Explosion Proof Light Fitting
TRI-FLP - Flameproof Explosion Proof Well Glass Fitting
Flameproof Explosion proof WELL GLASS FITTING. 160WMLL / 200W GLS / 125W HPMV / 70/150W MHL CAT NO. TFE-WGF-01 Design confirm to Standard IS2148-2004 IEC60079-1(2001). & IS13346-2004 IEC 60079-0(2000).

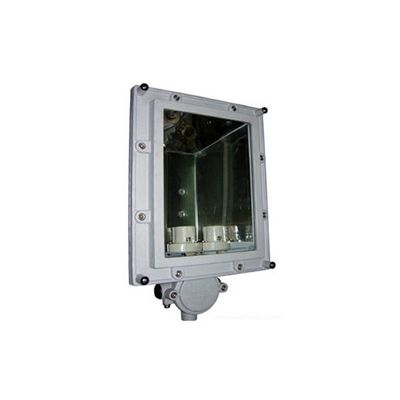

TRI-FLP - Explosion Proof Bulk Head Fitting
Type of Ex-Protection : EEx-d Type, IS/IEC60079-1:2007. Zone Classification : Zone 1 & Zone 2. Gas Group : IIA, IIB, & IIC T3 IS/IEC60079-0:2004. Ingress IP Protection : IP55 IS/IEC60529-1:2001. Material of contraction : Dia Cast Aluminum Alloy LM6. Paint : Epoxy Polyester Powder Coating. Earthling : Internal -01 No. External -02 Nos. Cable Entry : 02 Nos. 3/4” ET ( M20). Hardware : Stainless Steel. Electrical Rating : 125W HPMV / 150W MHL - T4 - Non-Integrated Type 2 X 28W CFL / 1 X 36W CFL - T6 - Direct Lamp 160W MLL / 200W Gls - T3 - Direct Lamp.
TRI-FLP - WP CFL Tube-Light Fitting-2
FLP/WP CFL Tube-Light , 2 X 26W CFL Cat NO TFE/CFL-01 Design confirm to Standard IS2148-2004 IEC60079-1(2001) & IS13346-2004 IEC 60079-0(2000)

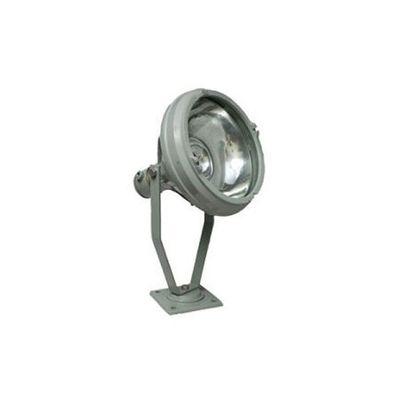

TRI-FLP - Flameproof Explosion Proof Flood Light Fitting
Type of Ex-Protection : EEx-d Type, IS/IEC60079-1:2007. Zone Classification : Zone 1 & Zone 2. Gas Group : IIA, IIB, T6 IS/IEC60079-0:2004. Ingress IP Protection : IP66 IS/IEC60529-1:2001. Material of contraction : Cast Aluminum Alloy LM6. Paint : Epoxy Polyester Powder Coating. Earthling : Internal -01 No. External -02 Nos. Cable Entry : 02 Nos. 3/4” ET ( M20). Hardware : Stainless Steel. Electrical Rating : 250W HPMV / SV / MHL Temp Class T3. 400W HPMV / SV / MHL Temp. Class T3.
Flameproof Explosion Proof Panel Board
TRI-FLP - Explosion Proof Control Panel Board
Type of Ex-Protection : EEx-d Type, IS/IEC60079-1:2007. Zone Classification : Zone 1 & Zone 2. Gas Group : IIA, IIB, T3 IS/IEC60079-0:2004. Ingress IP Protection : IP55 IS/IEC60529-1:2001. Material of contraction : Cast Aluminum Alloy LM6. Paint : Epoxy Polyester Powder Coating. Earthling : Internal -01 No. External -02 Nos. Cable Entry : As per Require. Hardware : Stainless Steel. Push Button : As per Require. LED Indication Lamp : As per Require. MCB & Switches : As per Require. Glass Window : As per require size.
TRI-FLP - Explosion Proof Control Panel Board 1
Type of Ex-Protection : EEx-d Type, IS/IEC60079-1:2007. Zone Classification : Zone 1 & Zone 2. Gas Group : IIA, IIB, T3 IS/IEC60079-0:2004. Ingress IP Protection : IP55 IS/IEC60529-1:2.001. Material of contraction : Cast Aluminum Alloy LM6. Paint : Epoxy Polyester Powder Coating. Earthling : Internal -01 No. External -02 Nos.. Cable Entry : As per Require. Hardware : Stainless Steel Push Button : As per Require. LED Indication Lamp : As per Require MCB & Switches : As per Require Glass Window : As per require size
