Trinity Filtration Technologies Pvt. Ltd. products

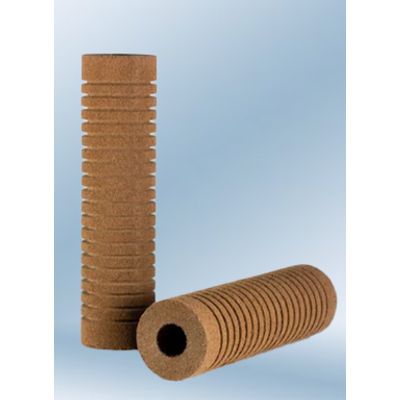

Trinity Pure-BOND Resin-bonded cartridge filtersfeature an advanced manufacturing process that produces a rigid graded density structure that allows the filter to withstand extreme viscosity and temperatures without deformation or collapse. The true graded density configuration allows complete utilization of the filter depth, with larger particles captured in the outer zone and finer particles trapped in the inner qualifying zone. The grooved design increases the surface area of the filter hence reducing the clean differential pressure and increasing the dirt holding capacity of the filter. The rigid construction ensures consistency, reproducible performance free from bye-pass and unloading.

TRINITY Pure-GUARD Bi-Component Thermally Bonded Filter Cartridgesare manufactured using a unique technology using polyolefin thermally bonded bi-component fibers resulting in a rigid complex filter matrix. The unique fiber-to-fiber bond forms a very rigid, stable porosity matrix thereby eliminating the need for a support core. The patented construction of this filter cartridge provides consistent filtration and eliminates pore size variability and media migration. The rigid construction also provides a three dimensional fiber network that offers a high tolerance to differential pressures. This unique feature also prevents changes in the fiber matrix throughout the life of the filter providing for precise filtration and eliminating filter unloading.

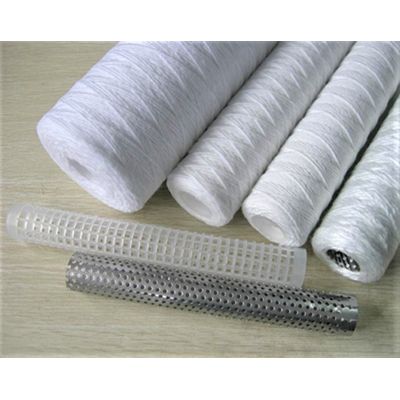

Introducing TRINITY Micro-STRING Wound Filters, a pinnacle of filtration technology. Crafted with the latest winding technology, these filters feature a unique composition—a dense inner layer and a coarse outer layer. This design ensures a superior depth filter, offering increased capacity, extended service life, and heightened performance, ultimately reducing effective costs. With high structural integrity and substantial void volume, these filters minimize pressure drop, enhancing efficiency. Compared to traditional wound filters, TRINITY Micro-STRING filters exhibit much-improved dirt holding capacity, providing a reliable and cost-effective solution for diverse filtration needs.

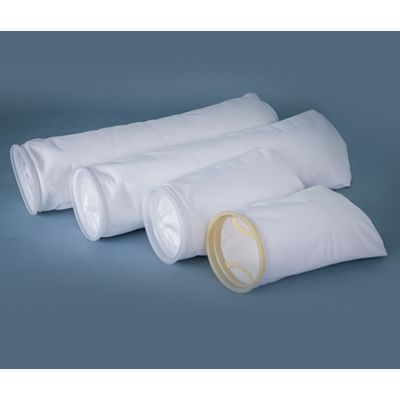

TRINITY Flow-PURE series bag filterare manufactured using the advanced felt media meeting the most critical customer applications. Available in three different types of media and a wide range of removal ratings make Flow-PURE Bag Filters are one of the most reliable products available in the marketplace today. Fully welded bags with an option of selecting three different performance grades like Standard Liquid Grade, Standard mesh Grade and High-efficiency Grade makes it an ideal choice for any filtration application.

TRINITY Oil Absorbent Bag Filters are manufactured with multi-layer construction offering high dirt loading, oil absorption and low differential pressure drops. Made with polypropylene micro-fiber these bags offer excellent chemical compatibility and a high level of filter efficiency.

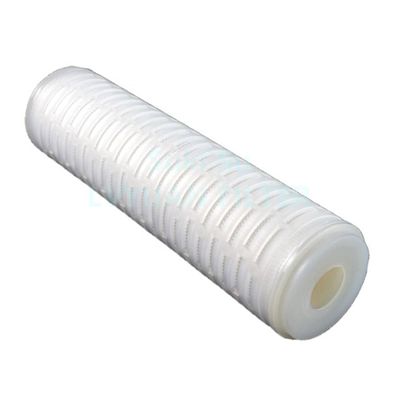

Steri-PRO PE series Polyethersulfone Sterilizing grade filters are manufactured to conform with the stringent quality standards required by filters that come in contact with biological, pharmaceuticals and other critical processes. The filter cartridges conform to Toxicity tests, meet the requirement of USP 29 Biological test for Plastics, and are manufactured using components that comply with CFR 21 regulations. The Filters are supported by a validation guide prepared specifically for manufacturers requiring product documentation as part of their qualification process.

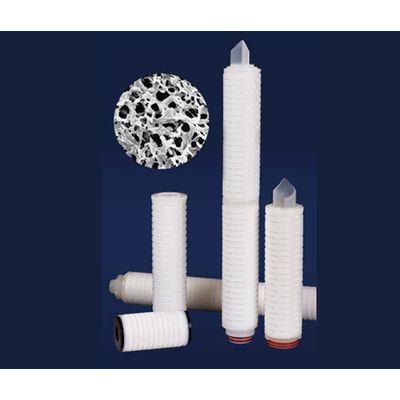

Trinity Steri-PRO PV series PVDF sterilizing filters use high porosity PVDF membrane to meet applications for high flow rates. These membrane filters significantly remove bacteria and undesired particles with high efficiency. PVDF membranes offer broad chemical compatibility with low extractable levels, high protein binding and high chemical inertness. Filters are best suited for application in bulk material filtration, can provide better performance when compared to similar products. The Filter comes with Single and double-layer PVDF with the support of polypropylene core, both materials listed in CFR 21 and FDA that are well suited for food and pharmaceutical applications.

TRINITY Max-FLO Sanitary Housings are designed and engineered to meet the critical needs of the Pharmaceutical industry. The housings are mirror finished with a defined Ra value below 0.8 Um. Materials used in these housings are safe to use for Food & beverages as well as Pharmaceutical application. Fine filtration of fluids is a critical part of pharmaceutical processes and the quality of the housing plays a significant role in ensuring the predetermined filtrate quality. Max-FLO Sanitary housings are designed to meet the many requirements of these demanding applications. The housings are supplied with a surface finish measured in terms of Ra value, suitability for CIP and SIP, integrity testing etc.

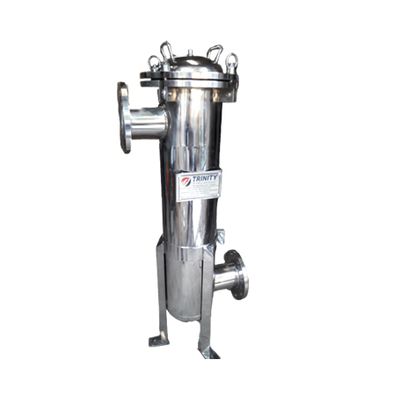

TRINITY Max-FLO Bag Filter Housings are designed and engineered to meet the critical needs of the manufacturing processes. These housings are manufactured for easy disassembly and fast bag element replacement. Trinity Max-FLO bag filter housings are designed to meet the many requirements of these demanding applications. During the design process, critical features of the housing are optimized to ensure operator-friendly usage, low installation and maintenance costs.

Trinity Vent Filter Housings are constructed of stainless steel for high purity applications to allow venting of any tank. These housings are used in the food & beverage industries. The housing comes in various sizes to fulfill the application. It is an effective way for filtered air to move in and out of the tank without vandalizing the process fluid. It can support DOE as well as SOE-type filter cartridges depending on the application. The design of housing provides for a positive seal with the filters thereby preventing any fluid bypass.
