Trovan Ltd. products

Trovan Unique - Read Only System - Transponders

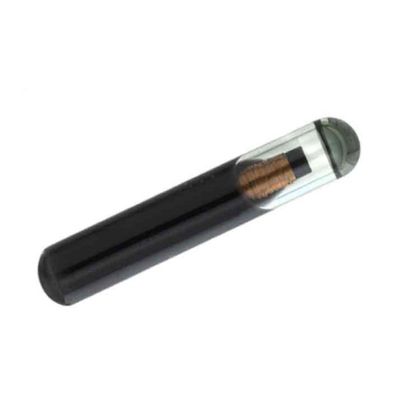

Trovan - Micro Transponder for Humidity Environments

Glass encapsulation is especially suited for use in high-humidity environments. Suitable for insertion into pre-drilled holes, or for molding into plastic items. Only microtransponder that can be read using a walk-by reader. Typical read range: 240 mm (9.45 in.) w/ GR-250 reader; 330 mm (13 in.) w/ LID-650/ANT-612 reader. Dimensions: Dia. 2.12; Length 11.5 mm (0.08 x 0.45 in.).

Trovan Unique - Read Only System - Portable Readers

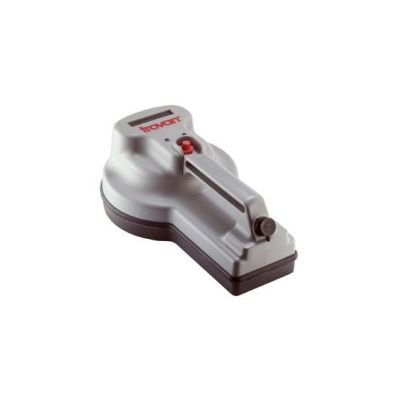

Trovan - Portable Reader with Data Storage

The Trovan Model GR-250 Portable Reader is designed for robust field use with a rugged, ergonomic design. This device excels in maximizing both read ranges and read areas, making it ideal for various industrial applications. It can store up to 3,072 readings, each with a time and date stamp. The unit is sealed to protect against moisture, caustic chemicals, and salt air, ensuring long-term durability. The 2-line, 16-character LCD provides clear readouts. Typical read ranges are: ID-100 at 240 mm (9.45 in.), ID-200 at 340 mm (13.4 in.), ID-300 at 250 mm (9.84 in.), and ID-400 at 530 mm (20.87 in.). Dimensions are length 297 mm (11.7 in.), width at antenna 175 mm (6.9 in.), and height 114 mm (4.5 in.). This reader is an excellent choice for environments requiring reliable data capture and storage.

Trovan - Portable RFID Reader

Smallest portable reader. 2-line, 16-character p. line backlit LCD. Detachable belt clip. 9V battery (type PP3). More than 3 hours continuous reading with alkaline type 600mAh. Typical read range: ID-100 up to 50 mm (1.9 in.); ID-200 up to 75 mm (3 in.); ID-300 up to 45 mm (1.8 in.); ID-400 up to 130 mm (5 in.). Dimensions: 70 mm x 125 mm x 24 mm (2.75 in. x 4.92 in. x 0.94 in.).

Trovan Unique - Read Only System - Fixed Mounted Readers

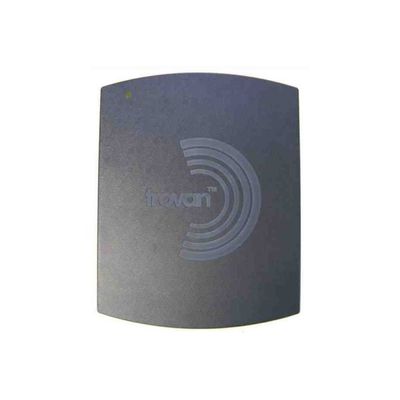

Trovan - Square Panel Antenna

IP54 rated. High impact polystyrene housing. Use with LID-650 decoder. Typical read range: ID-100 up to 180 mm (7 in.); ID-200 up to 280 mm (11 in.); ID-300 up to 200 mm (7.8 in.); ID-400 up to 420 mm (16 in.); ID-700 up to 290 mm (11 in.). Dimensions: 225 x 177 x 31 mm (8.85 x 6.96 x 1.22 in.).

Trovan - Sensor Panel Antenna

IP65 rated. POM housing. Use with LID-650 decoder. Typical read range: ID-100 up to 100 mm (3.9 in.); ID-200 up to 160 mm (6.3 in.); ID-300 up to 140 mm (5.5 in.); ID-400 up to 310 mm (12 in.); ID-700 up to 180 mm (7 in.). Dimensions: Dia. 50 mm (1.96 in.); Length 165 mm (6.5 in.).

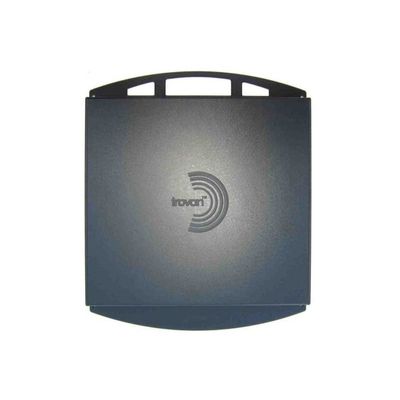

Trovan - Large Panel Antenna

IP54 rated. High impact polystyrene housing. Use with LID-650 decoder. Typical read range: ID-100 up to 350 mm (13.7 in.); ID-200 up to 500 mm (19.6 in.); ID-300 up to 400 mm (15.7 in.); ID-400 up to 800 mm (31.5 in.); ID-700 up to 520 mm (20 in.). Dimensions: 475 x 400 x 40 mm (18.7 x 15.7 x 1.57 in.).
